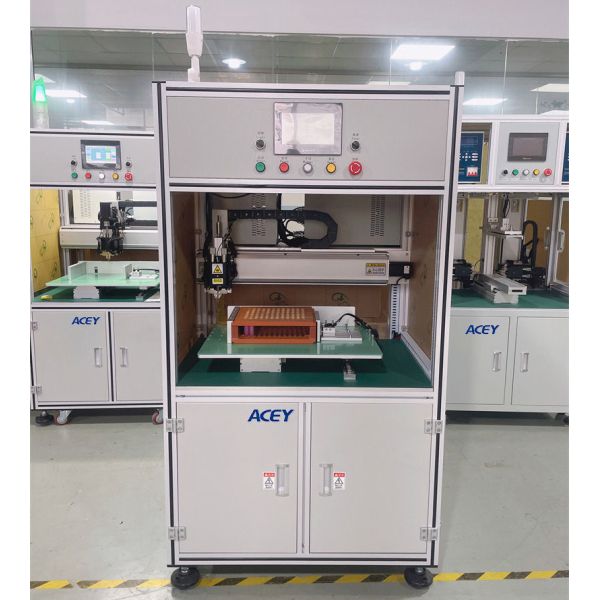

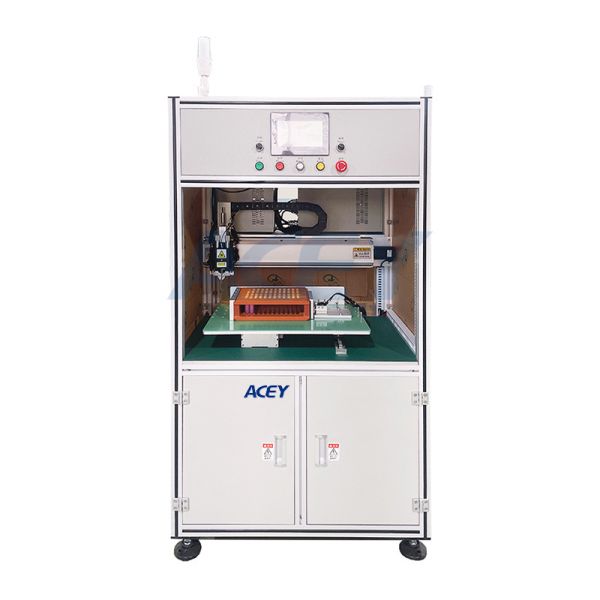

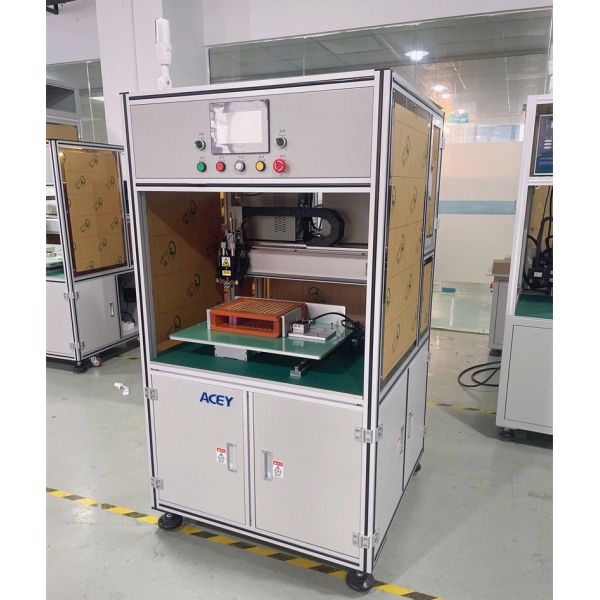

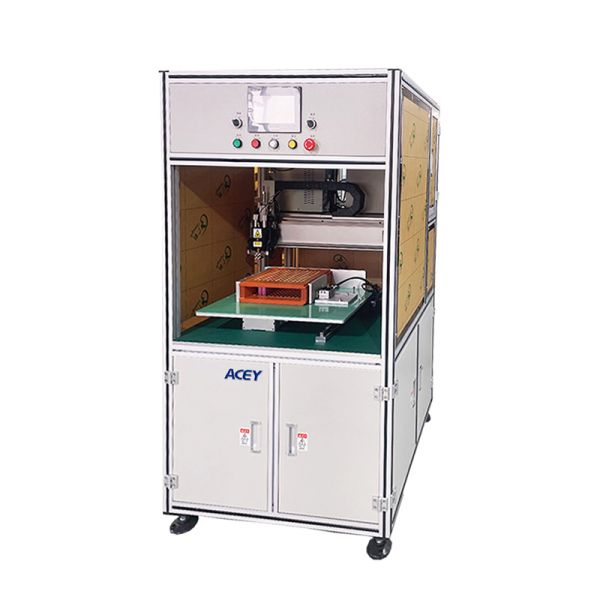

220V Pneumatic Battery Pack Spot Welder Machine For Lithium Cell
220V Pneumatic Battery Pack Spot Welder Machine For Lithium Cell
220V Pneumatic Battery Pack Spot Welder Machine For Lithium Cell
220V Pneumatic Battery Pack Spot Welder Machine For Lithium Cell
220V Pneumatic Battery Pack Spot Welder Machine For Lithium Cell
220V Pneumatic Battery Pack Spot Welder Machine For Lithium Cell
220V Pneumatic Battery Pack Spot Welder Machine For Lithium Cell
220V Pneumatic Battery Pack Spot Welder Machine For Lithium Cell
Specifications
Brand Name :
ACEY
Model Number :
ACEY-S200A
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 9860~10780/Set
Y-axis travel :
500mm (customizable)
X-axis travel :
400mm (customizable)
Max spot welding speed :
0.5s/ spot (1 hour：about 1800 pcs 18650 cell)
Welding power supply :
Transistor 10000A
Input power supply :
single-phase AC 220V/50Hz
Air Source :
0.4-0.6 Mpa
Packaging Details :
Plywood Case
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Warranty :
1 Year Warranty With Lifetime Support
After-sales Service :
24/7 Technical Support
Delivery Time :
7~35 Days
Description

10000A Transistor Automatic Pneumatic Single Side Spot Welding Machine For Lithium Ion Battery

Product Description

ACEY-S200A is suitable for battery pack spot welding and assembly in the factory for 14500 / 18650 / 21700 / 26650 / 32700 multi-parallel multi-series combination.It can be used in electric tool battery, torsion car battery, Energy Storage Battery Pack, Scooter Electric Vehicle Battery, etc. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved. Humanized design makes the operation and debugging very easy and convenient. Design of components built-in makes appearance more concise.

Product Features

*Support breakpoint start, automatic start, and manual start.
*Cold solder joint and sealing off alarm.
*Easy program, support matrix, array and point program, can store 100 group parameters.
*Welding needle abrasion alarm.
*Build-in welding current monitor, can display real time welding current.
*Design for NB, Power Tool, Gardening Tool, High Power, Energy Storage battery, Electric Motor Car Battery Pack, and other
lithium battery packs spot welding.
*Can be matched with the production line of lithium battery group.
*Can store dozens process of different battery packs product, switching products without re-setting parameters.
*Can match a variety brand of spot welders.

Main Technical Parameter

Welding power supply Transistor 10000A
Y-axis travel 500mm (customizable)
X-axis travel 400mm (customizable)
Max spot welding speed 0.5s/ spot (1 hour:about 1800 pcs 18650 cell)
Motor drive speed 600mm/S
Max load electric cores X direction: 26; Y direction: 26
Capable file group storage 100 groups
Operating system embedded system human-machine interface
Transmission mode Taiwan precision screw with guide rail
Driving mode stepper servo motor
Repeat positioning accuracy ±0.02mm
Dimensions L: 900mm, W: 900mm, H: 1650mm
Power 2000W
Machine weight 150KG
Max bearing weight of Y-axis 30KG
Input power supply single-phase AC 220V/50Hz
Air Source 0.4-0.6 Mpa

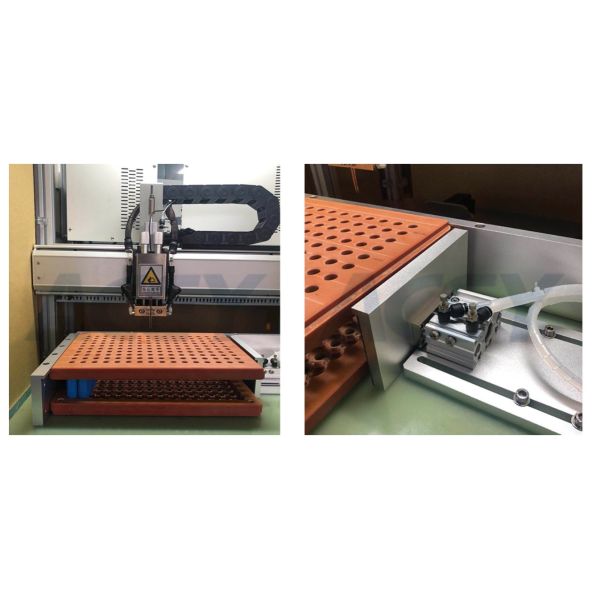

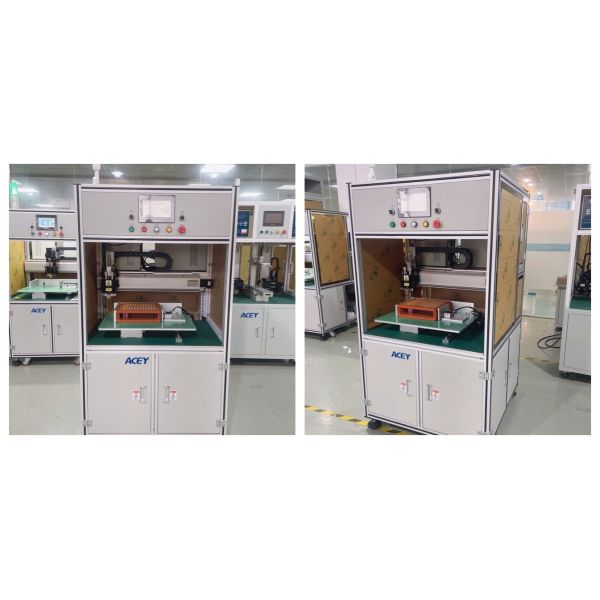

Product Display

220V Pneumatic Battery Pack Spot Welder Machine For Lithium Cell220V Pneumatic Battery Pack Spot Welder Machine For Lithium Cell
