Specifications
Brand Name :
ACEY
Model Number :
ACEY-D300C
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 14680~16890/Set
Y-axis travel :
500mm (customizable)
X-axis travel :
400mm (customizable)
Z-axis travel :
350mm（Double） (customizable)
Max spot welding speed :
0.35s/ spot (1 hour：about 3600 pcs 18650 cell)
Welding power supply :
Transistor 10000A
Input power supply :
Single phase AC 220V±10% 50Hz
Packaging Details :
Plywood Case
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Warranty :
1 Year Warranty With Lifetime Support
After-sales Service :
24/7 Technical Support
Delivery Time :
7~35 Days
Description

Automatic Rotary Head Transistor 10000A Double Side Lithium Ion Battery Spot Welding Machine

Product Description

ACEY-D300C is suitable for battery pack double-sided spot welding and assembly in the factory for 14500 / 18650 / 21700 / 26650 / 32700 multi-parallel multi-series combination.It can be used in electric tool battery, torsion car battery, Energy Storage Battery Pack, Scooter Electric Vehicle Battery, etc. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved. The operation and debugging very easy and convenient. Design of components built-in makes appearance more concise.

Product Features

*Support breakpoint start, automatic start, and manual start.
*Cold solder joint and sealing off alarm.
*Easy program, support matrix, array and point program, can store 100 group parameters.
*Welding needle abrasion alarm.
*Build-in welding current monitor, can display real time welding current.
*Design for NB, Power Tool, Gardening Tool, High Power, Energy Storage battery, Electric Motor Car Battery Pack, and other
lithium battery packs spot welding.
*Can be matched with the production line of lithium battery group.
*Can store dozens process of different battery packs product, switching products without re-setting parameters.
*Can match a variety brand of spot welders.

Main Technical Parameter

Y-axis travel 500mm (customizable)
X-axis travel 400mm (customizable)
Z-axis travel 350mm(Double) (customizable)
Max spot welding speed 0.35s/ spot (1 hour:about 3600 pcs 18650 cell)
Motor drive speed 1000mm/S
Max load electric cores X direction: 26; Y direction: 18
Welding Head Type Rotary(180 degree)
Capable file group storage 100 groups
Operating system embedded system human-machine interface
Transmission mode Taiwan precision screw with guide rail
Driving mode stepper servo motor
Repeat positioning accuracy ±0.02mm
Dimensions L: 1020mm, W: 910mm, H: 1770mm
Welding Current 2* 5000A
Power 4000W
Machine weight 350KG
Max bearing weight of Y-axis 50KG
Input power supply Single phase AC220V±10% 50Hz
Air Source 0.4-0.6 Mpa

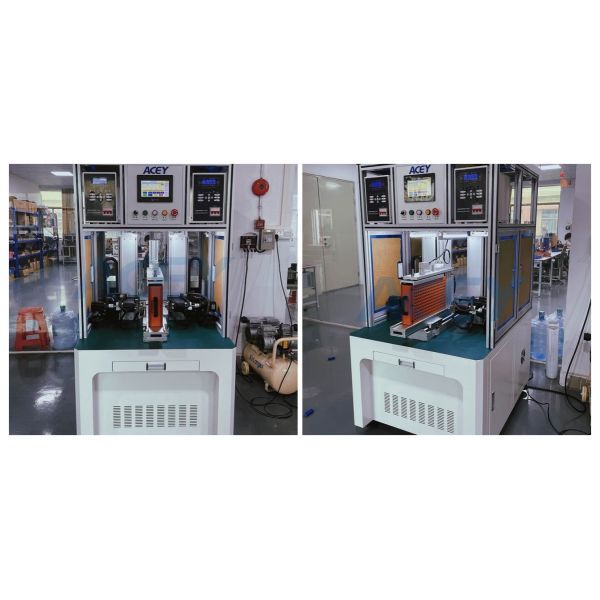

Product Display

Automatic Rotary Head Transistor 10000A Double Side Lithium Ion Battery Spot Welding Machine
