Automatic Visual Inspection Machine for Cylindrical Battery Positive & Negative Electrode

Specifications

Brand Name :

ACEY

Model Number :

ACEY-CCD01C

Certification :

Place of Origin :

China

MOQ :

1 Set

Price :

USD 7280~8490/Set (negotiable)

Payment Terms :

T/T,PayPal,L/C,Western Union,MoneyGram

Supply Ability :

200 Sets/Month

Delivery Time :

7~35 Days

Packaging Details :

Plywood Case

Warranty :

1 Year Warranty with Lifetime Support

After-sales Service :

24/7 Technical Support

Machine Power :

500W

Detection Range :

L500*W400mm

Conveyor Specification :

L1200*W800mm

Weight :

150kg

Machine Dimensions :

L1370*W830*H1870mm

Description

Automatic Visual Inspection Machine for Cylindrical Battery Positive & Negative Electrode

Product Description

ACEY-CCD01C CCD Tester is an automated visual inspection system specifically designed for lithium-ion battery pack assembly. Controlled by an industrial computer and equipped with a high-definition camera, the device accurately detects the polarity of the battery terminals, preventing short circuits caused by incorrect placement during welding. Using a conveyor belt design, it can automatically return or pass batteries based on the inspection results, significantly improving the efficiency of the battery pack assembly line.

Process Flow

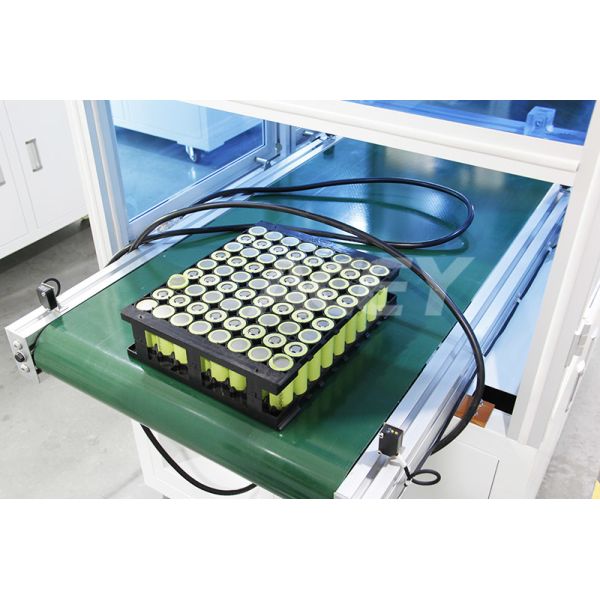

The cell enters the detection area → Sampling scan → Positive and negative detection → NG automatic detection → OK

Main Technical Parameter

XY axis stroke	1200500 (customizable) Effective working travel:400300mm
Motor transmission speed	300mm/S
Operating system	Industrial computer + smart camera
Detection method	Assembly line style
Repeated positioning accuracy	±0.1mm
Detection efficiency	1 second/PCS
Machine power	500W
Machine weight	150KG
Maximum bearing weight	60KG
Input power	Single-phase AC 220V/50Hz
Dimensions	L1370W830H1870mm

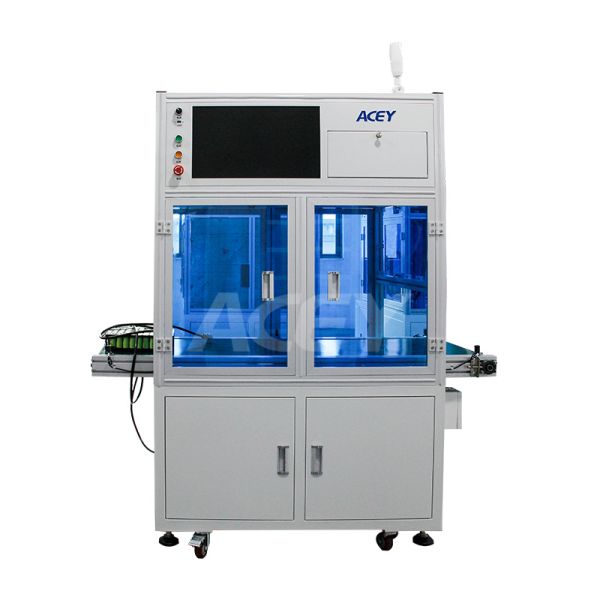

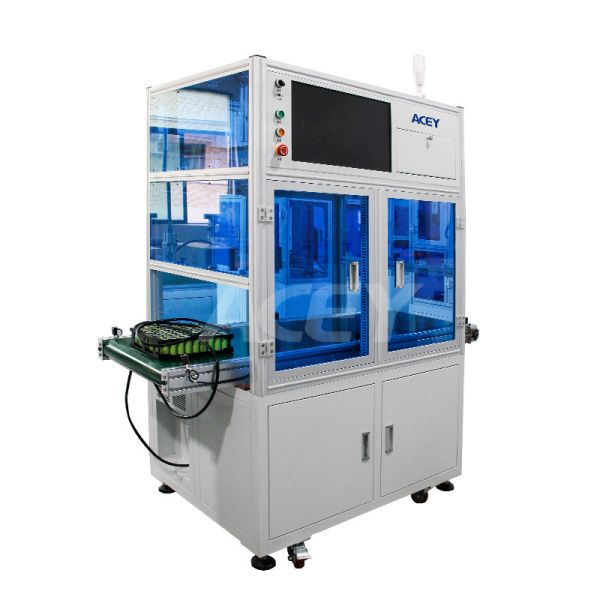

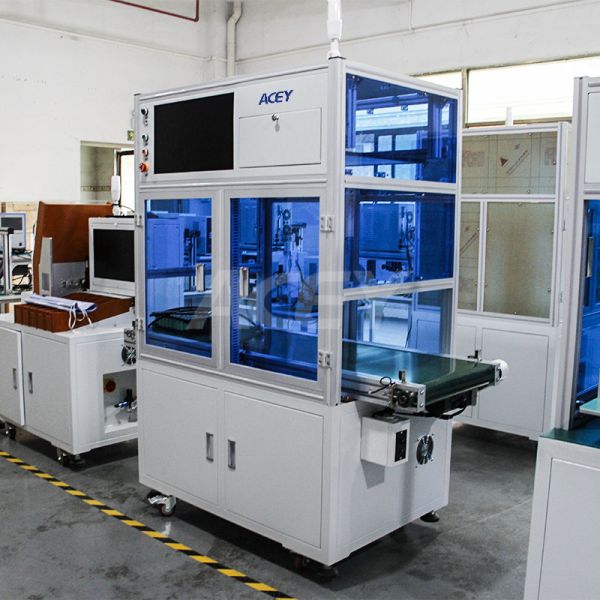

Product Display

Automatic Visual Inspection Machine for Cylindrical Battery Positive & Negative Electrode
