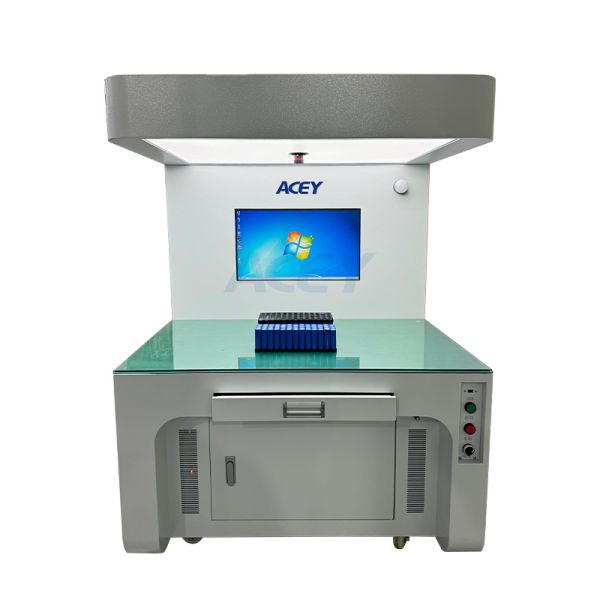

Cylindrical Battery Positive Negative Electrode CCD Tester
Cylindrical Battery Positive Negative Electrode CCD Tester
Cylindrical Battery Positive Negative Electrode CCD Tester
Cylindrical Battery Positive Negative Electrode CCD Tester
Cylindrical Battery Positive Negative Electrode CCD Tester
Cylindrical Battery Positive Negative Electrode CCD Tester
Cylindrical Battery Positive Negative Electrode CCD Tester
Cylindrical Battery Positive Negative Electrode CCD Tester
Specifications
Brand Name :
ACEY
Model Number :
ACEY-CCD01
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 7280~7379/Set (negotiable)
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Delivery Time :
7~35 Days
Packaging Details :
Plywood Case
Warranty :
1 Year Warranty with Lifetime Support
After-sales Service :
24/7 Technical Support
Detection Range :
400 × 300 mm (customizable)
Machine Power :
500W
Weight :
150kg
Machine Dimensions :
860*630*1630 mm
Description

Cylindrical Battery Positive/Negative Electrode CCD Tester

Product Description

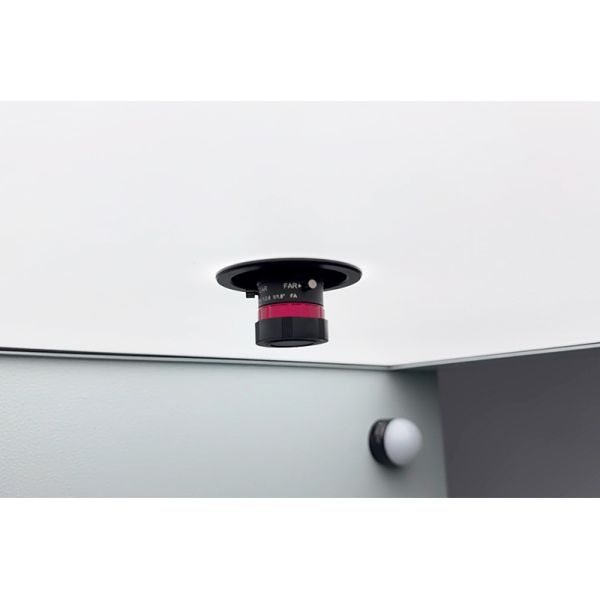

ACEY-CCD01 CCD tester is designed for automatic inspection of the positive and negative electrodes of cylindrical lithium battery cells. Using an industrial camera, the system captures electrode images and compares their quantity and position with reference samples to determine OK or NG results.

NG positions are clearly identified, enabling reliable polarity verification before spot welding and effectively preventing assembly defects caused by incorrect electrode orientation.

Process Flow

Cell loading → Image capture → Polarity inspection → NG judgment → OK output

Main Technical Parameter

Item Specification
Inspection area 400 × 300 mm (customizable)
Motor drive speed 300 mm/s
Operating system Industrial PC + smart camera (Hikvision 6 MP lens)
Inspection mode Stand-alone inspection
Repeat positioning accuracy ±0.1 mm
Inspection cycle time 1 second per cell
Total power 500 W
Machine weight 150 kg
Maximum load capacity 60 kg
Power supply Single-phase AC 220 V / 50 Hz
Overall dimensions (L × W × H) 860 × 630 × 1630 mm

Product Display

Cylindrical Battery Positive Negative Electrode CCD Tester
