Specifications
Brand Name :
ACEY
Model Number :
ACEY-SS11
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 3180~14080/Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Delivery Time :
7~35 Days
Packaging Details :
Plywood Case
Warranty :
1 Year Warranty with Lifetime Support
After-sales Service :
24/7 Technical Support
Sorting speed :
80ppm
Compatible Battery :
18650/21700/26650/32650/32700 Cylindrical Cells
Weight :
<500kg
Power Supply :
220V 50Hz±10%
Description

2 In 1 Battery Insulation Paper Sticking And Voltage IR Sorting Machine For 18650 21700 26650 32700

Product Description

ACEY-SS11 battery insulation paper sticking machine and battery voltage/IR sorting machine are directly integrated and connected in-line, allowing both processes to operate simultaneously. This design enables continuous production, reduces manual handling between processes, and improves overall efficiency.

Equipment Features

  • Integrated in-line design combining insulation paper sticking and voltage/internal resistance sorting in one system

  • Two processes operate simultaneously, enabling continuous operation and higher throughput

  • Eliminates intermediate manual handling between processes, reducing labor cost and handling errorsSupports cylindrical cell models including 18650, 21700, 26650, and 32700

  • High-precision voltage and internal resistance measurement for reliable cell sorting

  • Stable mechanical structure and simple operation, suitable for long-term production use

  • Compact footprint, saving production floor space

Equipment Specification

Item No. ACEY-SS11
Sticker machine
Voltage Supply Single-phase ~ 220V, 50Hz
Rated power 2KW
Surface pad material Highland barley paper or PVC material
Material specification requirements the max diameter of barley paper roll material is 350MM,
the inner diameter of paper roll core is 72-75MM
batrery type 18650 battery cell positive or negative pole is automatically pasted with highland barley paper mat or PVC material
Feeding method Insert battery cell hopper: 400pcs each time, available for 2 separate inserting units
Pneumatic pressure 0.4-0.6Mpa barley paper machine
Cushioning power Electric or pneumatic
Control device 7.5 inch touch screen, PLC programmer and servo motor
Barley paper roll width 100mm
Speed 4000-4500PCS/hour, 4PCS per punch
Dimensions L1000mm×710mm×1500mm
Machine weight 200Kg
Knife mold slow-moving wire processing method, high precision, 5000 knife molds are coated once to remove sticky water
Sorting machine
Equipment power supply Single-phase ~220V±10%/50Hz±10%, power <300W
Battery Types 18650(other sizes available)
Receiving channel 10 sorting & matching group channels, 1 unqualified product channel, available arbitrary set for each channel's sorting value.
Test parameters AC internal resistance, DC voltage
Internal resistance test Test range: 80mΩ,
Accuracy: ±0.5%rdg
Display resolution: 0.01mΩ
Voltage test Test range: 8V
Accuracy :±0.015%rdg,
Display resolution: 0.01mV
Sorting speed 6000 pieces/hour
Unwinding channel 400 batteries can be stored
Display result 5.7 inch LCD screen + PC synchronous display + industrial computer
Weight <300Kg

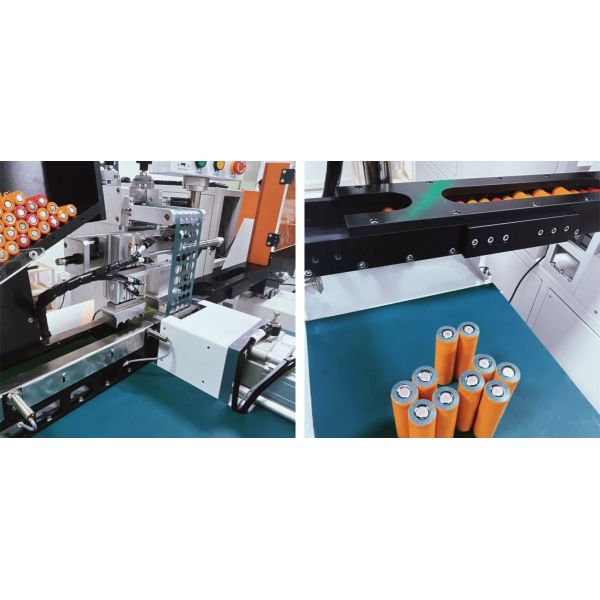

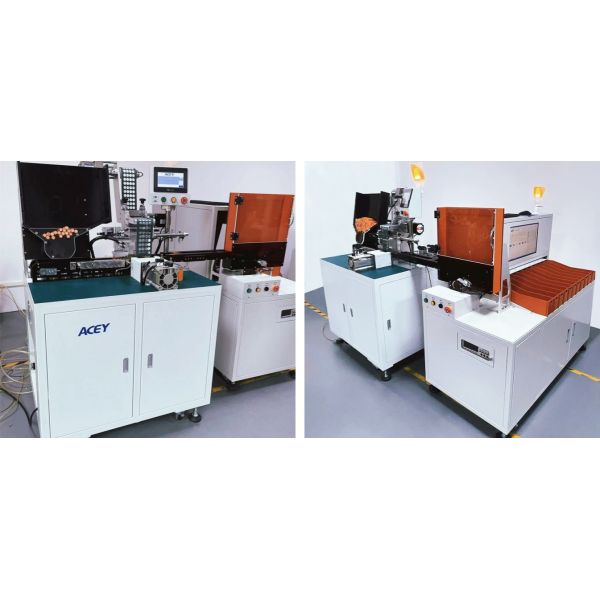

Product Display

2 In 1 Battery Insulation Paper Sticking And Voltage IR Sorting Machine For 18650 21700 26650 32700

2 In 1 Battery Insulation Paper Sticking And Voltage IR Sorting Machine For 18650 21700 26650 32700
