Microcomputer Cylindrical Battery Cell Spot Welder Machine Manual Gantry
Microcomputer Cylindrical Battery Cell Spot Welder Machine Manual Gantry
Microcomputer Cylindrical Battery Cell Spot Welder Machine Manual Gantry
Microcomputer Cylindrical Battery Cell Spot Welder Machine Manual Gantry
Microcomputer Cylindrical Battery Cell Spot Welder Machine Manual Gantry
Microcomputer Cylindrical Battery Cell Spot Welder Machine Manual Gantry
Microcomputer Cylindrical Battery Cell Spot Welder Machine Manual Gantry
Microcomputer Cylindrical Battery Cell Spot Welder Machine Manual Gantry
Specifications
Brand Name :
ACEY
Model Number :
ACEY-5000D
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 2050/Set
Output max short circuit current :
5000A
Input power :
3Phase AC380V±10% 50/60Hz
Max thickness of upper and lower butt welding :
0.3mm + 1mm
Max thickness of parallel welding :
0.03mm~0.5mm
L810mm*W610mm*H1220mm :
23.5kg
External dimension :
L810mm*W610mm*H1220mm
Packaging Details :
Plywood Case
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Warranty :
1 Year Warranty With Lifetime Support
After-sales Service :
24/7 Technical Support
Delivery Time :
7~35 Days
Description

Manual Gantry Spot Welder DC 5000A Battery Pack Spoting Weld Machine For 18650~33140 Cylindrical Battery



Product Description

ACEY-5000D (DC machine) Battery Pack Spot Welding Machine is a general platform for cylinder battery pack assembling. It equipped with advanced 5000A DC inverter welding power supply, Suitable battery for pack spot welding and assembly in the factory. This machine can assembling batteries like 18650, 26650, 21700... and Nickel or Nickel-Plated Steel strips. Which support battery pack like E-Bike, Scooter, electromobile,etc.


Product Features

*Panel Microcomputer control, high precision welding machine with plc display panel;
*Optimized structure design, beautiful appearance, compact and reasonable structure, small size and large power;
*Industrial circuit design, safe and reliable.


Main Technical Parameter

Max output power of transformer 35 KVA
Output max short circuit current 5000A
Floating voltage 10V
Control mode constant current control
Cooling mode forced air cooling
Setting data group No. 8
Suit for electronic parts, battery nickel plate, enameled wire, sensor wire, halogen lamp, etc
Max thickness of parallel welding 0.03mm~0.5mm
Max thickness of upper and lower butt welding 0.3mm + 1mm
Machine weight 23.5kg
External dimension L810mm*W610mm*H1220mm
Input power 3Phase AC380V±10% 50/60Hz

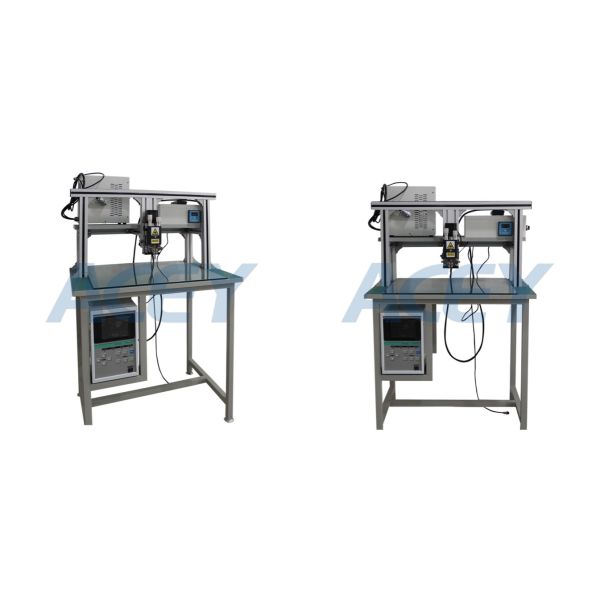

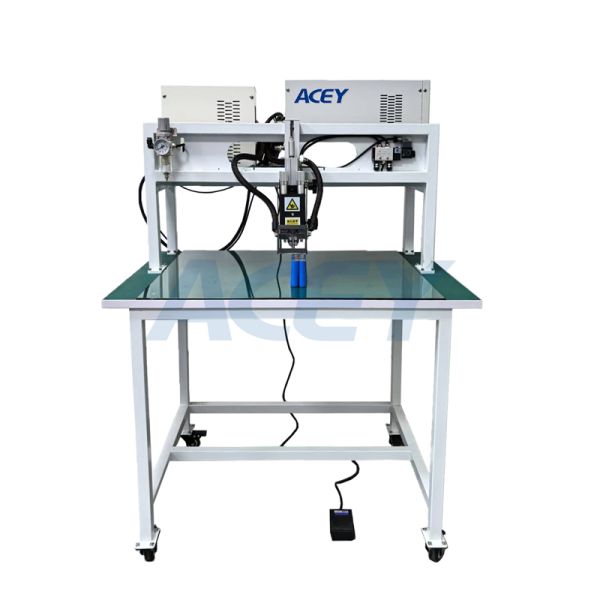

Product Display

Microcomputer Cylindrical Battery Cell Spot Welder Machine Manual GantryMicrocomputer Cylindrical Battery Cell Spot Welder Machine Manual Gantry
