Customized 8000A Manual Gantry Spot Welding Machine For Electric Vehicle Battery Packs
Customized 8000A Manual Gantry Spot Welding Machine For Electric Vehicle Battery Packs
Customized 8000A Manual Gantry Spot Welding Machine For Electric Vehicle Battery Packs
Customized 8000A Manual Gantry Spot Welding Machine For Electric Vehicle Battery Packs
Customized 8000A Manual Gantry Spot Welding Machine For Electric Vehicle Battery Packs
Customized 8000A Manual Gantry Spot Welding Machine For Electric Vehicle Battery Packs
Specifications
Model Number :
ACEY-D8000T
Machine Dimensions :
1020mm * 1020mm * 1310mm
Payment Terms :
T/T,PayPal,L/C,Western Union
After-sales Service :
24/7 Technical Support
Max Thickness of Parallel Welding :
0.08 ~ 0.25mm
Price :
USD 2160~3340/Set
Welding Power Supply :
8000A
Supply Ability :
200 Sets/Month
Warranty :
1 Year Warranty with Lifetime Support
MOQ :
1 Set
Delivery Time :
7~35 Days
Machine Weight :
70kg
Voltage :
200-240V/50hz (or 60hz)AC
Certification :
CE
Brand Name :
ACEY
Packaging Details :
Plywood Case
Place of Origin :
China
Description
Customized 8000A Manual Gantry Spot Welding Machine For Electric Vehicle Battery Packs
Product Overview

ACEY-D8000T battery spot welding machine is designed for electric vehicle battery packs, car battery modules, street lamp batteries, balance car battery packs, scooter battery packs, mobile power supplies, starter battery pack modules, power tool battery packs, laptop battery packs, and various other battery combinations.

Key Features
  • Foot spot welding with manual positioning and easy hand cranking of screw guide module, supporting weights up to 60kg
  • Arbitrary spot welding positioning capability to improve efficiency, ideal for large battery pack proofing and maintenance
  • 8000A transistor welding power source providing stable performance, fast welding speed, and constant power working mode
  • Built-in welding current monitoring system for real-time current monitoring
  • Virtual welding alarm function with direct communication to motion controller for recording virtual welding positions
  • Welding efficiency approximately 3-4 times higher than ordinary gantry spot welding machines
Technical Specifications
Rated Voltage 200-240V/50Hz (or 60Hz) AC
Rated Power 600W (max)
X-axis Travel 0-700mm (max) - supports customization
Y-axis Travel 0-580mm (max) - supports customization
Z-axis Travel 0-150mm
W-axis Angle 0 degree

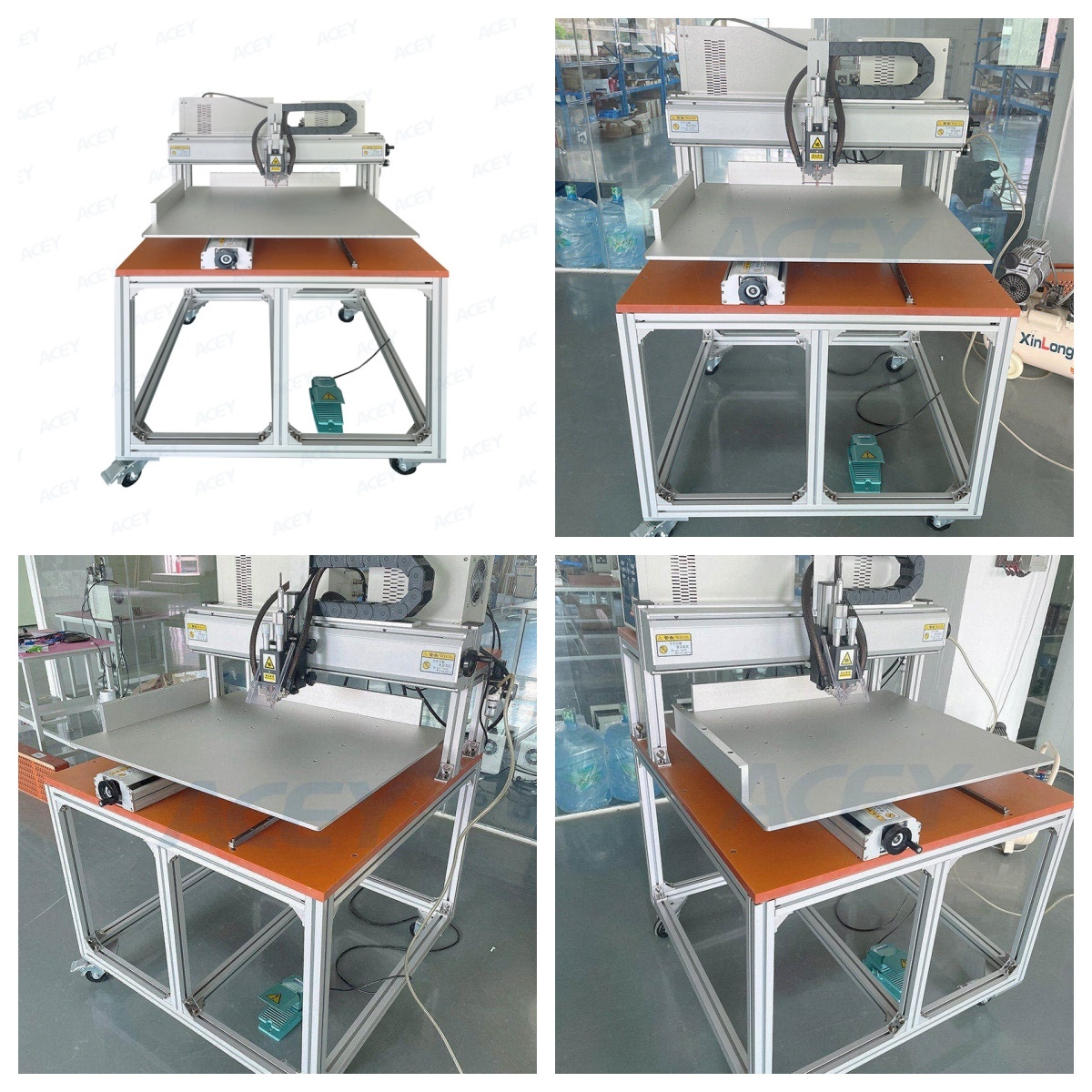

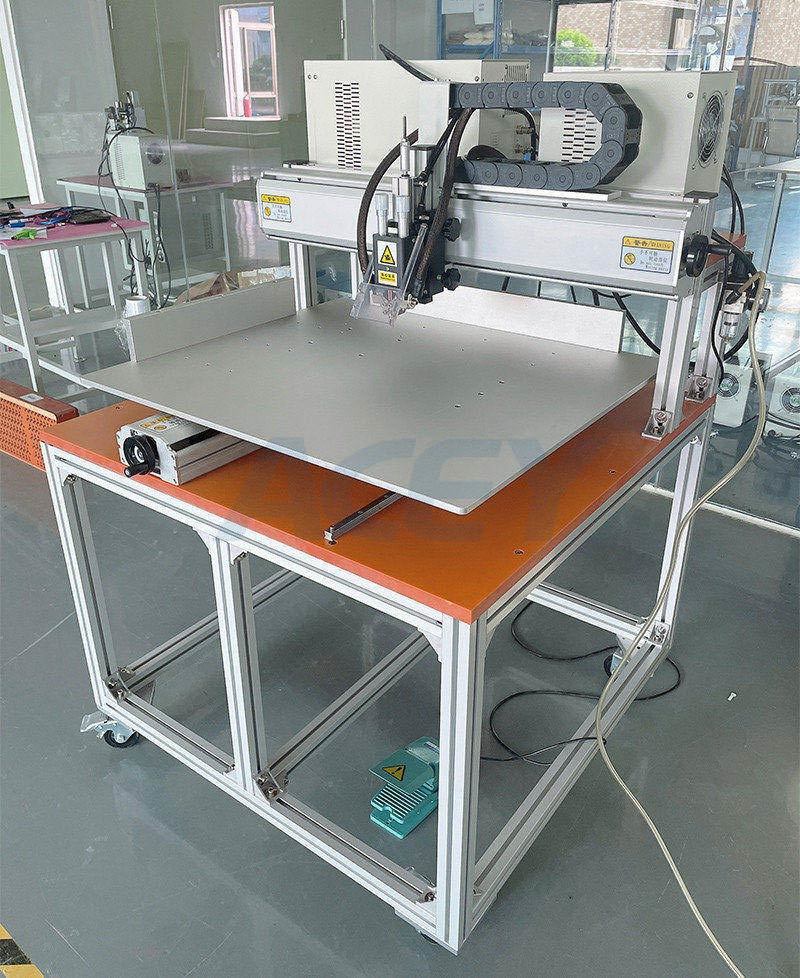

Product Display
Customized 8000A Manual Gantry Spot Welding Machine For Electric Vehicle Battery Packs
