High-efficiency Prismatic Battery Module Stacking And Pressing Machine
High-efficiency Prismatic Battery Module Stacking And Pressing Machine
High-efficiency Prismatic Battery Module Stacking And Pressing Machine
High-efficiency Prismatic Battery Module Stacking And Pressing Machine
High-efficiency Prismatic Battery Module Stacking And Pressing Machine
High-efficiency Prismatic Battery Module Stacking And Pressing Machine
High-efficiency Prismatic Battery Module Stacking And Pressing Machine
High-efficiency Prismatic Battery Module Stacking And Pressing Machine
Specifications
Supply Ability :
200 Sets/Month
Model Number :
ACEY-SP1200
Extrusion stroke :
1200mm
MOQ :
1 Set
Delivery Time :
7~35 Days
Warranty :
1 Year Warranty With Lifetime Support
Payment Terms :
T/T,PayPal,L/C,Western Union
Price :
USD 7500~8300Set
After-sales Service :
24/7 Technical Support
Certification :
CE
Adaptable size range :
L: 50~250mm; W: 20~ 100mm; H: 100~300 mm
Brand Name :
ACEY
Equipment Efficiency :
50 groups/hour (10PCS battery cells)
Place of Origin :
China
Stacking maximum pressure :
500KG
Packaging Details :
Plywood Case
Description
High-efficiency Prismatic Battery Module Stacking And Pressing Machine
Product Overview

The ACEY-SP1200 Prismatic Battery Cell Stacking & Compression Machine is engineered for precise stacking, alignment, and compression of prismatic lithium battery cells during module assembly. This system is extensively utilized in energy storage and electric vehicle battery pack production lines.

Operators manually position end plates, thermal insulation plates, and individual cells onto the stacking platform in sequence. Upon completion of stacking, the system activates automatically. A PLC-controlled servo electric cylinder executes the compression process with real-time feedback from pressure sensors, automatically halting when preset force or stroke limits are achieved.

Following compression, steel band strapping is performed manually. Once fastening is complete, the cylinder returns to standby position, concluding the stacking and compression cycle.

Key Features
  • PLC control system ensures stable and reliable operation
  • Servo electric cylinder delivers smooth and precise motion
  • Real-time monitoring of force and displacement
  • Dual safety protection through force and stroke limits
  • Overload alarm with buzzer and warning light activation
  • Two-hand start mechanism enhances operator safety
  • Adjustable compression stroke for different module sizes
  • High-precision pressure control with accuracy within 0.5-1 kg
Technical Specifications
Item Specification
Applicable Battery Type Prismatic lithium battery cells 100Ah-280Ah
Module Length Range 200-1200 mm
Module Width Range 100-300 mm
Module Height Range 100-300 mm
Control System PLC programmable control system
Compression Force Range 0-500 kg
Overload Alarm Buzzer + red light warning
Compression Stroke 200-1200 mm adjustable
Control Function Real-time force & stroke monitoring
Control Accuracy 0.5-1 kg
Start Mode Two-hand start safety control
Machine Size 2370 × 650 × 1256 mm
Machine Weight Approx. 393 kg
Machine Color Industrial white (customizable)
Total Power ≤1.5 kW
Product Display

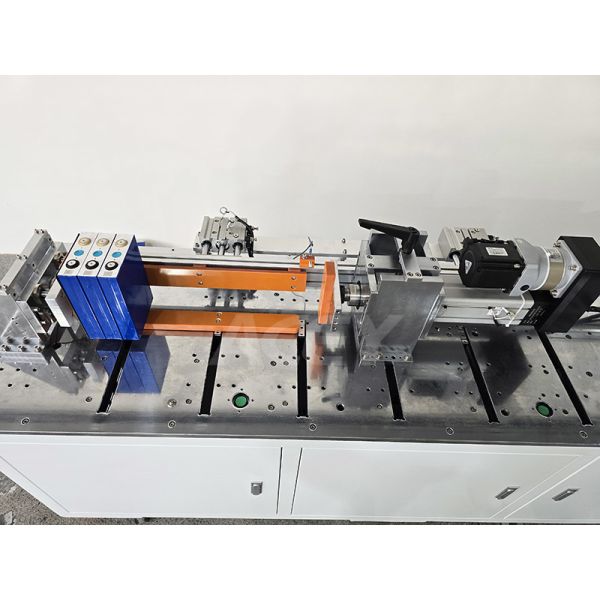

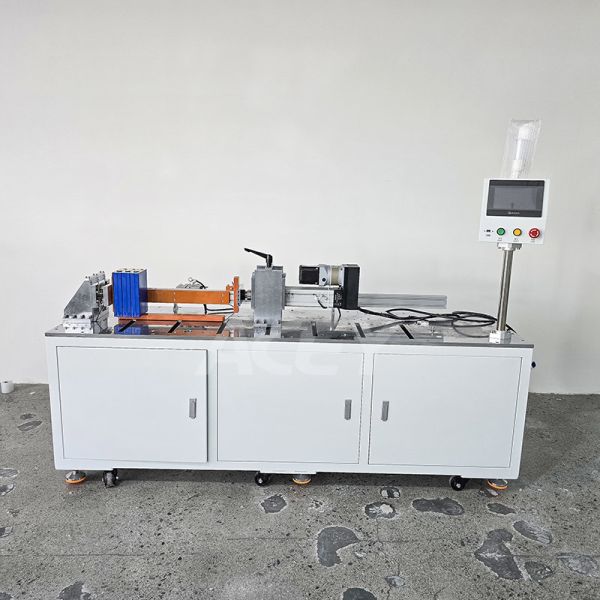

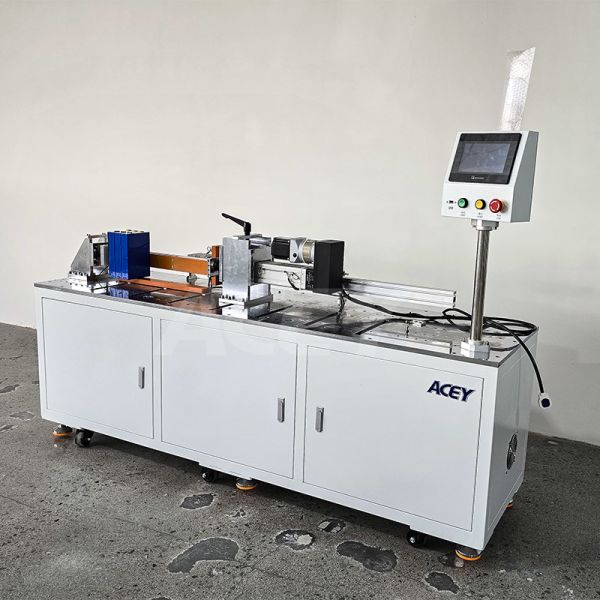

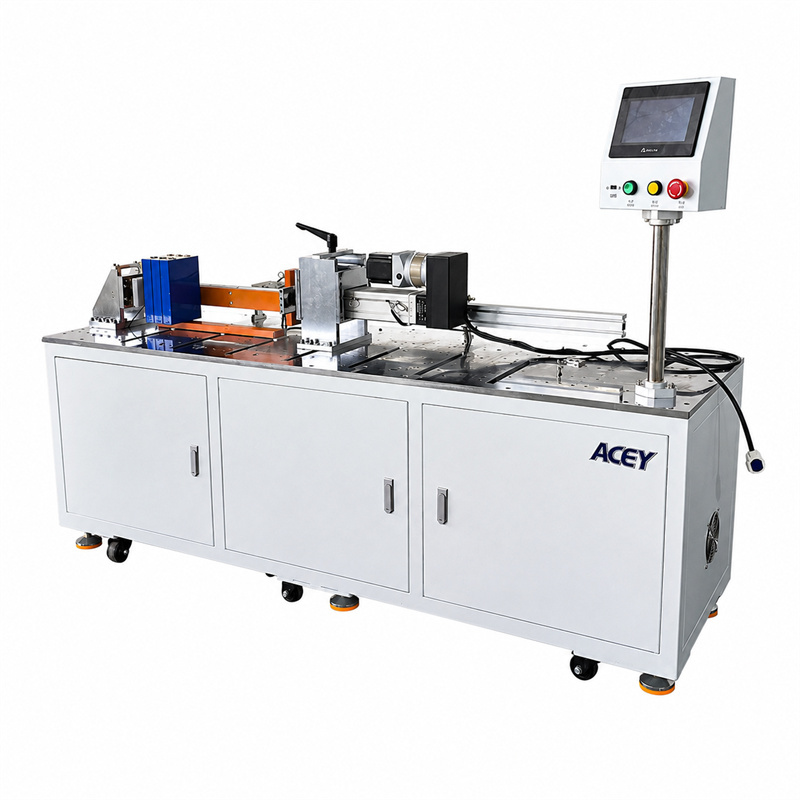

High-efficiency Prismatic Battery Module Stacking And Pressing Machine
ACEY-SP1200 Automatic Prismatic Battery Module Stacking and Compression Machine
