PVPE Pneumatic Valve Bag Packing Machine, For Animal Pet Food /Powder / Granule

I. Product Profile

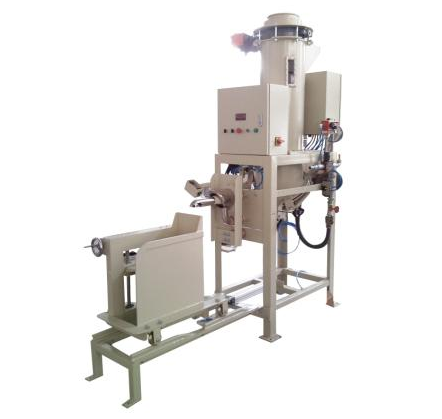

Our PVPE pneumatic valve bag packing machine is made up of one pneumatic valve packing equipmen, atomatic bag-fetching manipulator, bag magazine and conveyor. The PVPE (Pneumatic Valve Packing Equipment) is an air flow bagger designed to fill dry solids, like granulated pellets, cement, adhesives, renders, powders, small aggregates and flaked products into valve bags. The PVPE works on the basis of air fluidisation of the product and differential pressure resulting in product flow into valve bags. This equipment can also be customized as per different customers’ special requirements. The PVPE Packer weighs the bag and contents as it is being filled. The packing speed can reach 5-8 bags per minute (20 kg) while maintaining accuracy. The speed relates to material ratio, fluidity, granularity, humidity, etc.

II. Features

1. Structure

One full automatic pneumatic type valve bag filling machine comprises of:

1. PVPE (Pneumatic Valve Packing Equipment)
2. Manipulator (mechanical arm)
3. Bag magazine
4. Conveyo

2. Description

Automatic Bag-Fetching Manipulator

The valve bag is sucked up by the suction cup, and the manipulator stretch open the bag mouth to insert the bag into the material discharge hole. The vacuum of the standard suction cup is generated by the suction system. This system can give timely feedback of product status to ensure that each bag is accurately placed to the packaging machine discharge hole.

III. Materials to Fill

Including but not limited to dry powders, premixes or materials of diameter less than 7 mm. Typical materials: PVC powder, renders, cement, gypsum powder, dry mortar, fine sand, lime powder, tile adhesives, joint mixture, charcoal powder, graphite, grain, flour, chemical powders, perlite, and all kinds of powdery additives.

IV. Main Technical Data

If you have the relative requirement, welcome to contact us . We will provide best packaging suitable for sea shipping, all goods are packed in seaworthy wooden case.
Our engineers are available to take care of after-sale services overseas and to solve machine problems at customers' premises

.​
