Pneumatic Filling Valve Bag Packing Machine For Renders Pigment Paint Powder
Pneumatic Filling Valve Bag Packing Machine For Renders Pigment Paint Powder
Pneumatic Filling Valve Bag Packing Machine For Renders Pigment Paint Powder
Pneumatic Filling Valve Bag Packing Machine For Renders Pigment Paint Powder
Specifications
Brand Name :
Hongsen Intelligent
Model Number :
HS-FK
Place of Origin :
People's Republic of China
MOQ :
1 PC
Payment Terms :
L/C, T/T
Price :
Negotiable
Filling range :
10-50 kg
Package :
Valve bag
Type :
PVPE
Material :
Powdery materials
Automation level :
Full automatic
Control :
Touch screen
Description

Automatic Renders Pigment Paint Powder Valve Bag Packaging Machine Pneumatic Filling

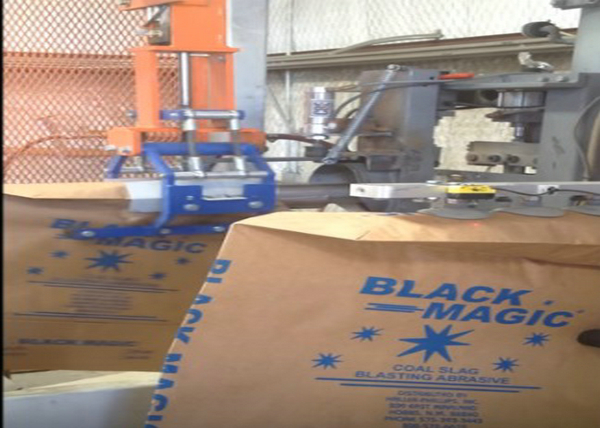

One full automatic pneumatic type valve bag filling machine comprises of PVPE (Pneumatic Valve Packing Equipment), Manipulator (mechanical arm), Bag magazine and Conveyor.

The PVPE (Pneumatic Valve Packing Equipment) is an air flow bagger designed to fill powdery products into valve bags which works on the basis of air fluidisation of the product and differential pressure resulting in product flow into valve bags. The PVPE Packer weighs the bag and contents as it is being filled. The packing speed can reach 5-8 bags per minute (20 kg) while maintaining accuracy. The speed relates to material ratio, fluidity, granularity, humidity, etc.

Bag Magazine (Empty bag depot):

It is big enough to keep 120 empty bags here and there is still place more bags. This bag magazine coordinates the automatic bag-fetching manipulator to realize fully automatic operation of bag taking. When the present batch of bags are used up, the next batch will be automatically replenished. The operator on site can put the bags into bag magazine while the machine is running. So there is no need to stop the production for supplement which will ensure continuous packing.

Main Technical Data:

Packing range 10-50 kg
Packing speed 5-8 bags/min.
Packing accuracy ±0.5~1%
Valve hole size 50 mm (2’) suitable, filling spout
Valve hole length 90-165 mm
Bag length 90-180 mm
Bag height 300-900 mm
Air consumption To be specified

This equipment can also be customized as per different customers’ special requirements.

Our Services

1. many years manufacture experience,strong R&D department. Overseas engineer services available.

2. One year guarantee time,lifelong free service,24 hours online service.

3. We promise machine keep working over 10 years in good working condition.Few easy broken parts,easy to change.

4. Intelligent PLC control system,easy operate,more humanization.

5. Exported to more than 1000 customers from more than 50 countries.

6. OEM,ODM and customized service.

7. CE, ISO, SASO, SGS, CIQ certificates.

8. We guarantee the quality for one year, Lifetime free service, 24-hour online service.

Pneumatic Filling Valve Bag Packing Machine For Renders Pigment Paint Powder
