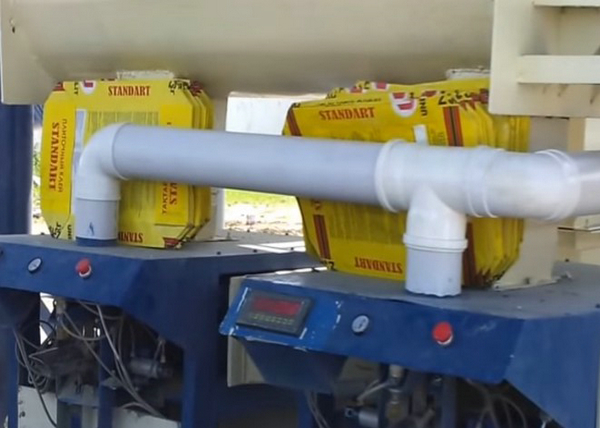

PVPE Pneumatic Valve Bag Packing Machine for Powders & Granules of Diameter Less Than 7 mm

Our PVPE pneumatic valve bag packing machine is made up of one pneumatic valve packing equipmen, atomatic bag-fetching manipulator, bag magazine and conveyor.

The PVPE works on the basis of air fluidisation of the product and differential pressure resulting in product flow into valve bags. This equipment can also be customized as per different customers’ special requirements. The PVPE Packer weighs the bag and contents as it is being filled. The packing speed can reach 5-8 bags per minute while maintaining accuracy. The speed relates to material ratio, fluidity, granularity, humidity, etc.

Automatic Bag-Fetching Manipulator:

The valve bag is sucked up by the suction cup, and the manipulator stretch open the bag mouth to insert the bag into the material discharge hole. The vacuum of the standard suction cup is generated by the suction system. This system can give timely feedback of product status to ensure that each bag is accurately placed to the packaging machine discharge hole.

Bag Magazine (Empty bag depot):

It is big enough to keep 120 empty bag

s here and there is still place more bags. This bag magazine coordinates the automatic bag-fetching manipulator to realize fully automatic operation of bag taking. When the present batch of bags are used up, the next batch will be automatically replenished. The operator on site can put the bags into bag magazine while the machine is running. So there is no need to stop the production for supplement which will ensure continuous packing.

Application:

PVC powder, cement, gypsum powder, dry mortar, fine sand, lime powder, tile adhesives, joint mixture, charcoal powder, perlite, and all kinds of powdery additives.

Main Technical Data:
