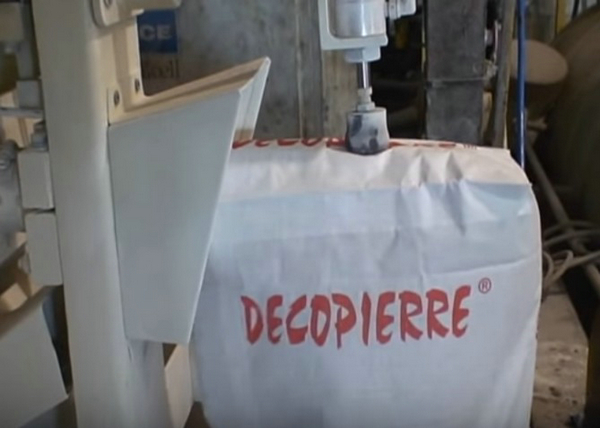

Auto Valve Bag Filling Machine for Bagging of Building Material Fine Sand 25 / 50 KG

One full automatic pneumatic type valve bag filling machine comprises of:

1. PVPE (Pneumatic Valve Packing Equipment)

2. Manipulator (mechanical arm)

3. Bag magazine

4. Conveyor

The PVPE (Pneumatic Valve Packing Equipment) is an air flow bagger designed to fill dry solids, like granulated pellets, cement, adhesives, renders, powders, small aggregates and flaked products into valve bags. The PVPE works on the basis of air fluidisation of the product and differential pressure resulting in product flow into valve bags. This equipment can also be customized as per different customers’ special requirements. The PVPE Packer weighs the bag and contents as it is being filled. The packing speed can reach 5-8 bags per minute (20 kg) while maintaining accuracy. The speed relates to material ratio, fluidity, granularity, humidity, etc.

Bag Magazine (Empty bag depot):

It is big enough to keep 120 empty bags here and there is still place more bags. This bag magazine coordinates the automatic bag-fetching manipulator to realize fully automatic operation of bag taking. When the present batch of bags are used up, the next batch will be automatically replenished. The operator on site can put the bags into bag magazine while the machine is running. So there is no need to stop the production for supplement which will ensure continuous packing.

Materials to Fill:

Including but not limited to dry powders, premixes or materials of diameter less than 7 mm

Typical materials: PVC powder, renders, cement, gypsum powder, dry mortar, fine sand, lime powder, tile adhesives, joint mixture, charcoal powder, graphite, grain, flour, chemical powders, perlite, and all kinds of powdery additives.

Main Technical Data:
