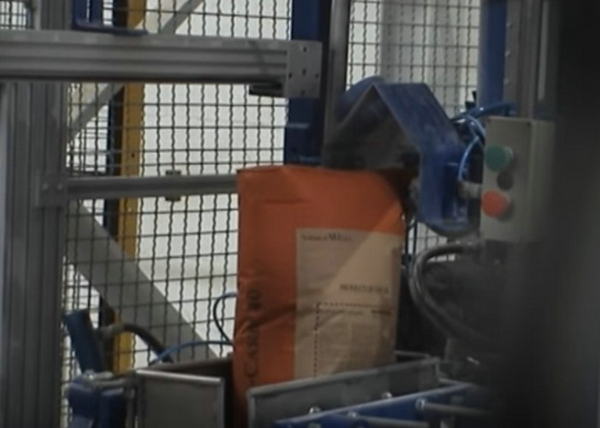

Automatic Valve Bag Packing Machine For Joint Mixture / Tile Adhesives Filling 25 / 50 KG
Automatic Valve Bag Packing Machine For Joint Mixture / Tile Adhesives Filling 25 / 50 KG
Automatic Valve Bag Packing Machine For Joint Mixture / Tile Adhesives Filling 25 / 50 KG
Automatic Valve Bag Packing Machine For Joint Mixture / Tile Adhesives Filling 25 / 50 KG
Specifications
Brand Name :
Hongsen Intelligent
Model Number :
HS-FK
Place of Origin :
People's Republic of China
MOQ :
1 PC
Payment Terms :
L/C, T/T
Price :
Negotiable
Filling range :
10-50 kg automatic packaging machine
Speed :
5-8 bags/min
Drive :
Pneumatic
Package :
Valve bag
Type :
PVPE
Application :
Powders and granules
Automation level :
Full automatic
Bag taking :
Mechanical arm
Description

Valve Bag Filling and Packing Machine for Joint Mixture and Tile Adhesives 25 / 50 KG

Automatic Bag-Fetching Manipulator:

The valve bag is sucked up by the suction cup, and the manipulator stretch open the bag mouth to insert the bag into the material discharge hole. The vacuum of the standard suction cup is generated by the suction system. This system can give timely feedback of product status to ensure that each bag is accurately placed to the packaging machine discharge hole.

Bag Magazine (Empty bag depot):

It is big enough to keep 120 empty bags here and there is still place more bags. This bag magazine coordinates the automatic bag-fetching manipulator to realize fully automatic operation of bag taking. When the present batch of bags are used up, the next batch will be automatically replenished. The operator on site can put the bags into bag magazine while the machine is running. So there is no need to stop the production for supplement which will ensure continuous packing.

Main Parameters:

Packing range 10-50 kg
Packing speed 5-8 bags/min.
Packing accuracy ±0.5~1%
Valve hole size 50 mm (2’) suitable, filling spout
Valve hole length 90-165 mm
Bag length 90-180 mm
Bag height 300-900 mm

The PVPE (Pneumatic Valve Packing Equipment) is an air flow bagger designed to fill dry solids, like granulated pellets, cement, adhesives, renders, powders, small aggregates into valve bags. The PVPE works on the basis of air fluidisation of the product and differential pressure resulting in product flow into valve bags. The PVPE Packer weighs the bag and contents as it is being filled. The packing speed relates to material ratio, fluidity, granularity, humidity, etc.

This equipment can also be customized as per different customers’ special requirements.
