Automatic Dry Powder Filling Machine With Conveyor , Automatic Bagging Machine
Automatic Dry Powder Filling Machine With Conveyor , Automatic Bagging Machine
Specifications
Brand Name :
Hongsen Intelligent
Model Number :
HS-FK
Place of Origin :
People's Republic of China
MOQ :
1 PC
Payment Terms :
L/C, T/T
Price :
Negotiable
Filling range :
10-50 kg
Drive :
Pneumatic
Package :
Valve bag
Application :
dry solid powder
Automation level :
Full automatic
Bag taking :
Mechanical arm
Description

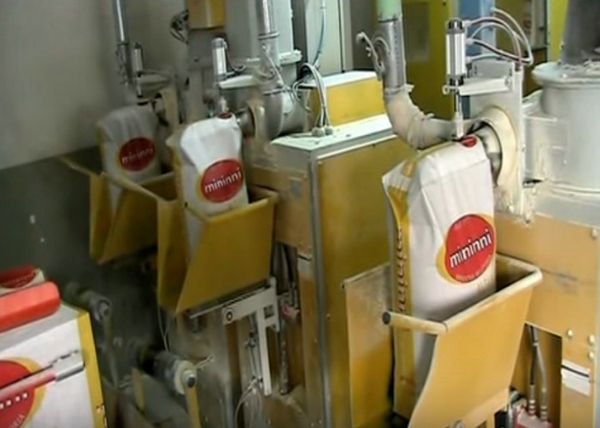

Dry Solid Powers Valve Bag Filling Machine with Conveyor Automatic Packaging

One full automatic pneumatic type valve bag filling machine comprises of:

1. PVPE (Pneumatic Valve Packing Equipment)

2. Manipulator (mechanical arm)

3. Bag magazine

4. Conveyor

The PVPE (Pneumatic Valve Packing Equipment) is an air flow bagger designed to fill dry solids into valve bags. The PVPE works on the basis of air fluidisation of the product and differential pressure resulting in product flow into valve bags.

Automatic Bag-Fetching Manipulator:

The valve bag is sucked up by the suction cup, and the manipulator stretch open the bag mouth to insert the bag into the material discharge hole. The vacuum of the standard suction cup is generated by the suction system. This system can give timely feedback of product status to ensure that each bag is accurately placed to the packaging machine discharge hole.

Materials to Fill:

Including but not limited to dry powders, premixes or materials of diameter less than 7 mm.

Main Technical Data:

Packing range 10-50 kg
Packing speed 5-8 bags/min.
Packing accuracy ±0.5~1%
Valve hole size 50 mm (2’) suitable, filling spout
Valve hole length 90-165 mm
Bag length 90-180 mm
Bag height 300-900 mm
Air pressure 6-8 bar

Application:


It is suitable for widely suitable for food, medicine, chemical industry, such as food additive, milk powder, bean powder, coffee powder, tea powder, instant powder, flour powder, medical powder, and cosmetic powder etc.
