4 PoE Ports 2 Uplink 100 Mbps PoE Switch 4KV Surge Protection For CCTV Security System
4 PoE Ports 2 Uplink 100 Mbps PoE Switch 4KV Surge Protection For CCTV Security System
4 PoE Ports 2 Uplink 100 Mbps PoE Switch 4KV Surge Protection For CCTV Security System
4 PoE Ports 2 Uplink 100 Mbps PoE Switch 4KV Surge Protection For CCTV Security System
4 PoE Ports 2 Uplink 100 Mbps PoE Switch 4KV Surge Protection For CCTV Security System
4 PoE Ports 2 Uplink 100 Mbps PoE Switch 4KV Surge Protection For CCTV Security System
Specifications
Model Number :
ATD-P402E
Led Indicators :
Power, Link/Activity, POE Status
Place of Origin :
CHINA
Total Power Budget :
Up to 65W
Certification :
CE ROSH FCC ISO
Mac Address Table Size :
4K to 8K entries
Port Type :
RJ45 Ethernet
Switching Capacity :
Up to 1.2 Gbps
Delivery Time :
5-7 days
Power Output Per Port :
15.4W (802.3af) or 30W (802.3at)
Supply Ability :
50000Pcs/Month
Power Supply :
AC 100-240V
Packaging Details :
1pcs/box
Mtbf :
Typically 100,000 hours
Poe Standard :
IEEE 802.3af/at
Data Transfer Rate :
100 Mbps
Brand Name :
OEM
Number Of Ports :
4+2
Payment Terms :
T/T
Description

Fast Ethernet PoE Switch 4 PoE Ports 2 Uplink 100Mbps 4KV Surge Protection AI Auto-Recovery Desktop & Wall Mount Surveillance PoE Switch for CCTV Security System

Product Description

Our 4+2 port 100Mbps PoE+ unmanaged switch is engineered specifically for small-scale surveillance networking, retail Wi-Fi deployment and office VoIP layout, integrating 4 PoE powered RJ45 ports alongside 2 independent non-PoE uplink ports to simplify network expansion without extra power wiring.
Compliant fully with IEEE802.3af(15.4W) & IEEE802.3at(30W) global PoE standards, every PoE port automatically identifies standard PD equipment to deliver matched power intelligently, avoiding overcurrent damage to connected devices. Built-in total 78W high-efficiency PoE power budget easily loads 4pcs full-power PTZ IP cameras simultaneously without unstable power output.
Equipped with dual functional DIP toggle switch, users switch between Standard Mode and Extend Mode flexibly: under Extend Mode, data & PoE power can transmit up to 250 meters via CAT5/CAT6 ethernet cable, solving long-distance monitoring wiring troubles for warehouse, parking lot and villa security projects. One-click VLAN isolation restricts broadcast storm, segregates port data to boost whole network security and transmission efficiency.

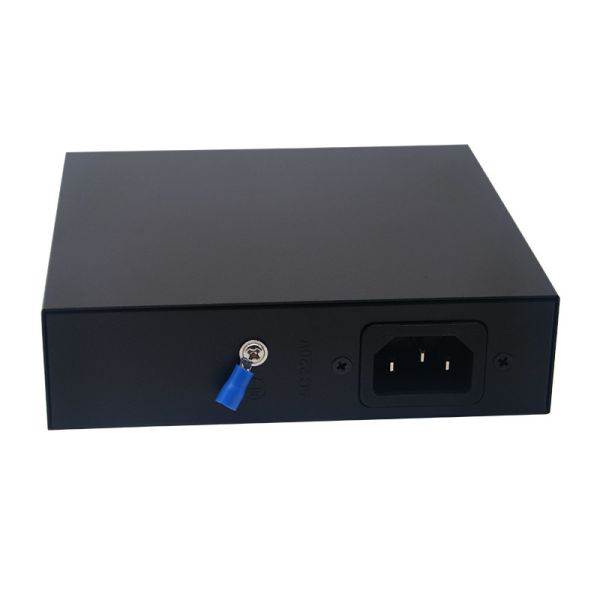

Solid full-metal enclosure with fanless passive cooling design ensures 24/7 non-stop silent operation, compatible with desktop placement and wall-mounted installation to fit limited cabinet or space-constrained wiring box. Built-in 4KV surge & lightning protection guards the switch and downstream devices against sudden voltage surge from thunderstorm or unstable grid voltage, greatly prolong equipment service life.
Zero software configuration required for plug-and-play deployment, drastically cutting on-site installation labor cost and construction cycle, widely compatible with IP surveillance cameras, wireless access points, IP phones and small smart IoT terminal equipment.

Key Features

4+2 Mixed Port Layout for Flexible Expansion: 4×10/100M PoE+ RJ45 +2×10/100M non-PoE uplink RJ45, separate uplink design prevents PoE port bandwidth congestion for stable upstream connection
40-65W Full-load PoE+ Power Supply: Single PoE port max 30W(802.3at)/15.4W(802.3af), auto PD detection & intelligent power distribution, no manual power setting needed
Dual Working Mode via DIP Switch: Standard Mode(100M full speed) / Extend Mode(10Mbps up to 250m long-distance PoE transmission for long-range CCTV layout)
One-Tap VLAN Isolation: Block useless cross-port data flooding, suppress network storm, improve network stability for multi-camera monitoring systems
4KV Industrial-Grade Lightning Protection: Anti-surge circuit design defends thunder strike and grid fluctuation, ideal for outdoor cabinet & roadside monitoring deployment
Fanless All-Metal Silent Heat Dissipation: No rotating fan failure risk, 24H continuous running, dual installation: desktop stand / wall mount with reserved hanging holes
Plug & Play Unmanaged Operation: No driver, no web management, auto MDI/MDIX cross line adaptive, instant networking after cable plug-in
Energy-Saving EEE Tech: Auto power cut for idle ports to reduce standby power consumption, meet global green networking requirements
Specification
Item Specification Parameter
Port Configuration 4×10/100Mbps PoE+ RJ45 Ports + 2×10/100Mbps Uplink RJ45 Ports
PoE Compliance IEEE 802.3af(15.4W/port) / IEEE 802.3at(30W/port)
Total PoE Budget Max 65W Built-in Integrated Power
Backplane Bandwidth 1.2Gbps Non-blocking Switching Capacity
Transmission Mode Standard:10/100M auto-negotiation; Extend:10Mbps Max 250m
Special Function One-key VLAN Isolation,4KV Lightning Surge Protection,EEE Energy Saving
Flow Control IEEE802.3x Full-duplex Flow Control, Backpressure Half-duplex Flow Control
Input Power AC 100V~240V 50/60Hz Built-in Power Supply
Enclosure Material Cold Rolled Steel Metal Case, Fanless Passive Cooling
Installation Desktop Placement / Wall Mount Available
Operating Temp -10℃ ~ +55℃
Compatible Device IP Camera, Wireless AP, VoIP Phone, PoE IoT Equipment
