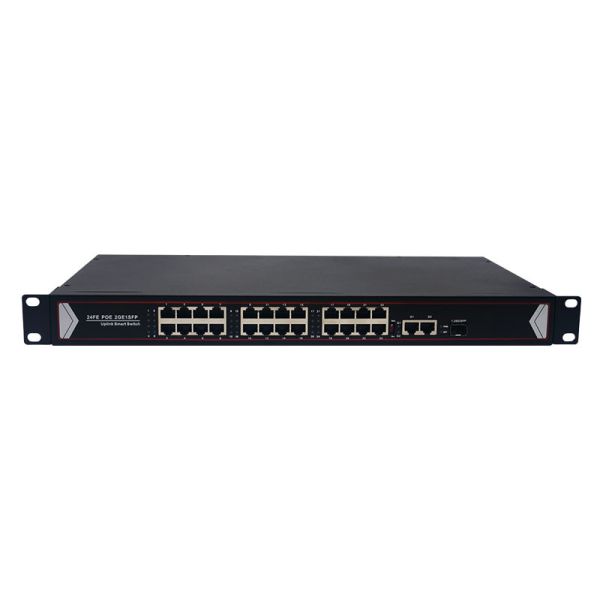

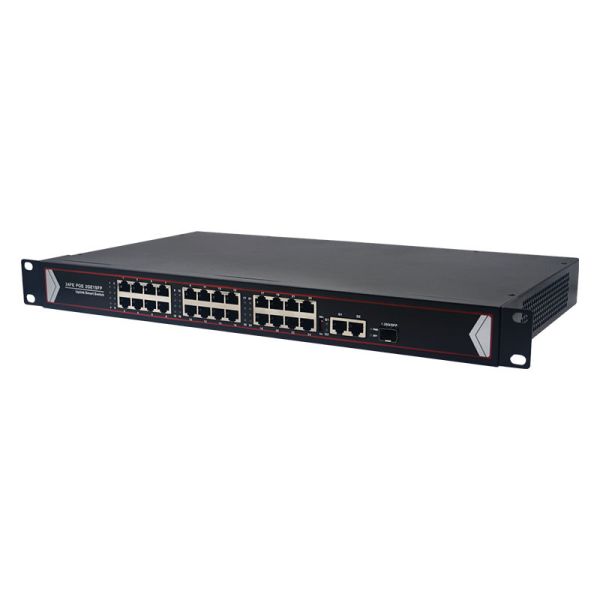

24 Port Fast Ethernet PoE Switch Rack Mount Dual RJ45 Uplink 1 SFP Fiber Port
24 Port Fast Ethernet PoE Switch Rack Mount Dual RJ45 Uplink 1 SFP Fiber Port
24 Port Fast Ethernet PoE Switch Rack Mount Dual RJ45 Uplink 1 SFP Fiber Port
24 Port Fast Ethernet PoE Switch Rack Mount Dual RJ45 Uplink 1 SFP Fiber Port
Specifications
Power Supply :
External or internal power adapter
Led Indicators :
Power, Link/Activity, POE status
Mtbf :
Typically > 100,000 hours
Data Transfer Mode :
Full duplex / Half duplex
Supply Ability :
20000pcs/Month
Operating Temperature :
-10°C to 50°C
Poe Standard :
IEEE 802.3af/at
Poe Power Budget :
Up to 30W per port
Brand Name :
OEM
Place of Origin :
CHINA
Certification :
CE ROSH FCC ISO
Delivery Time :
5-7 days
Packaging Details :
1pcs/box
Number Of Ports :
24*POE+2*RJ45+1*SFP
Port Speed :
100 Mbps
Model Number :
ATD-P2421EG
Network Interface :
RJ45 Ethernet ports
Mounting :
Rack-mount
Payment Terms :
T/T
Description

24 Port Fast Ethernet PoE Switch Rack Mount, Dual RJ45 Uplink + SFP Fiber Port, IEEE 802.3af/at, Unmanaged Network Switch for Server Room & IP Camera System

Product Description

This high-density rackmount PoE switch is tailored for 19-inch standard network cabinets, an all-round solution for medium and large-scale networking projects, monitoring centers and enterprise wiring closets. Equipped with 24 10/100Mbps PoE ports, 2 gigabit uplink ports and one universal SFP expansion slot, it integrates abundant device access, high-speed aggregation and long-distance fiber transmission in one unit.
Conforming to IEEE 802.3af and 802.3at PoE+ standards, the device realizes power and data delivery over a single Ethernet cable. It automatically identifies PoE-powered terminals including IP cameras, wireless access points and VoIP phones, streamlining cabling layout and cutting deployment costs effectively. The sturdy metal frame ensures solid structure and efficient heat dissipation, ideal for centralized cabinet management.
Built with fanless passive cooling, it runs silently without mechanical noise, fully adapting to long-term continuous operation. As an unmanaged switch, it adopts plug-and-play design, requiring no professional configuration for quick setup. Comprehensive built-in protection functions defend against overvoltage, overcurrent and short circuit risks, maximizing operational stability and device safety in diverse working environments.

Key Features

  • Standard 1U rackmount structure, perfectly fits 19-inch network cabinets for centralized deployment
  • Versatile port combination: 24 PoE ports + 2 gigabit uplinks + 1 SFP slot, supports copper & fiber dual networking
  • Compliant with IEEE 802.3af/at PoE+ protocols, one cable transmits power and data simultaneously
  • 260-380W large total PoE power budget, up to 30W output per port to drive high-power PoE devices
  • Universal SFP slot allows flexible fiber module expansion for long-range network transmission
  • Heavy-duty metal enclosure, outstanding heat dissipation, fanless design for quiet operation
  • Plug-and-play unmanaged design, easy to install, use and maintain for all scenarios
  • Multiple circuit protection prevents abnormal current and voltage damage for reliable operation

Specifications

Item Details
Port Configuration 24 × 10/100Mbps PoE RJ45, 2 × 10/100/1000Mbps Uplink RJ45, 1 × Gigabit SFP Slot
PoE Standard IEEE 802.3af / IEEE 802.3at (PoE+)
Single Port PoE Power Max 30W
Total PoE Power 260-380W
Transmission Rate PoE Ports: 10/100Mbps; Uplink & SFP: 10/100/1000Mbps
Switching Capacity 9.2 Gbps
MAC Address Table 8K Entries
Cooling Mode Fanless Passive Cooling
Housing Material Full Metal
Installation Type 1U Standard 19-inch Rackmount
Input Voltage AC 100–240V, 50/60Hz
Operating Temperature -10°C ~ 55°C
Storage Temperature -40°C ~ 70°C
Working Humidity 10% – 90% RH (Non-condensing, No Condensation)
Dimensions (L×W×H) 442 × 205 × 44 mm
