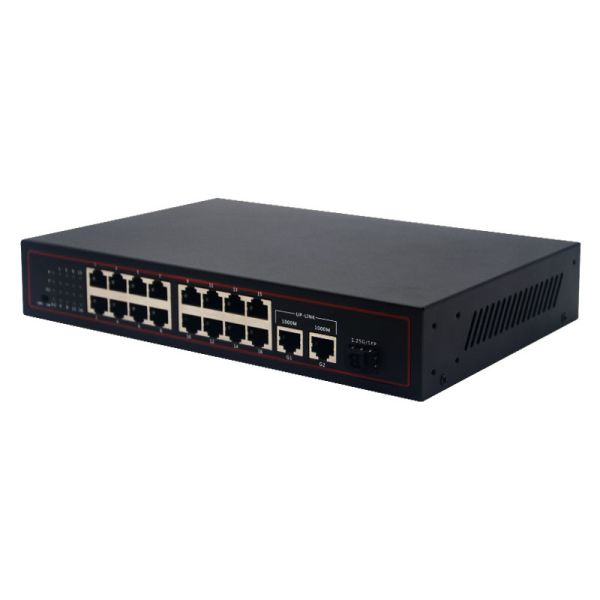

Desktop Fast Ethernet PoE Switch 150-260W 16 PoE Ports 1 SFP 2 RJ45 Uplink PoE
Desktop Fast Ethernet PoE Switch 150-260W 16 PoE Ports 1 SFP 2 RJ45 Uplink PoE
Desktop Fast Ethernet PoE Switch 150-260W 16 PoE Ports 1 SFP 2 RJ45 Uplink PoE
Desktop Fast Ethernet PoE Switch 150-260W 16 PoE Ports 1 SFP 2 RJ45 Uplink PoE
Specifications
Power Supply :
AC 100-240V
Total Poe Power Budget :
150W-260W
Place of Origin :
CHINA
Data Transfer Rate :
100 Mbps
Port Type :
RJ45
Delivery Time :
5-7 days
Model Number :
ATD-P1621EGD
Max Poe Power Per Port :
15.4W (802.3af) / 30W (802.3at)
Supply Ability :
20000pcs/Month
Packaging Details :
1pcs/box
Number Of Ports :
16+2
Certification :
CE ROSH FCC ISO
Led Indicators :
Power, Link/Act, POE Status
Mac Address Table Size :
4K
Mtbf :
100,000 hours
Payment Terms :
T/T
Brand Name :
OEM
Operating Temperature :
-10°C to 50°C
Poe Standard :
IEEE 802.3af/at
Description

Desktop Fast Ethernet PoE Switch 16 PoE Ports 1 SFP 2 RJ45 Uplink PoE 150-260W Budget Metal Fanless Design for Office & Surveillance

Product Description

This multi-functional desktop PoE switch is engineered to meet diversified network connection demands, combining abundant PoE access, fiber extension and high-speed uplink in one compact unit. It is equipped with 16 10/100Mbps PoE RJ45 ports, 1 universal SFP slot and 2 gigabit RJ45 uplink ports, enabling seamless switching between fiber and copper networks for long-distance transmission and local network expansion.
Fully compliant with IEEE 802.3af and 802.3at PoE+ standards, each port can deliver power and data over a single Ethernet cable. It auto-detects compatible devices like IP cameras, wireless access points and VoIP phones, eliminating messy power cords and extra adapters. The sturdy metal shell adopts passive heat dissipation, running silently without fans and maintaining reliable performance for round-the-clock use.
As an unmanaged switch, it supports plug-and-play use with no complicated configuration required. Built-in multi-level safety protection effectively prevents damage from overvoltage, overcurrent and short circuits. The desktop form factor saves placement space, making it a cost-effective choice for security monitoring, small office networks and commercial network deployment.
Key Features

16×10/100Mbps PoE ports, 1 SFP fiber slot + 2 gigabit uplink ports, dual media access for flexible network layout

Supports IEEE 802.3af/at PoE+ protocols, single cable transmits power and data synchronously

Universal SFP slot enables long-distance fiber networking, breaks the limit of traditional copper cable

Total PoE power up to 180W, each port max 30W output, stably drives multiple PoE devices

Fanless passive cooling + full metal casing, superior heat dissipation and noise-free operation

Unmanaged plug-and-play design, no software setup needed, easy installation and maintenance

Comprehensive circuit protection: overvoltage, overcurrent, short-circuit protection for device safety

Compact desktop structure, space-saving, suitable for indoor desktop placement in various scenarios

Specifications
Parameter Details
Port Configuration 16 × 10/100Mbps PoE RJ45 Ports, 1 × SFP Slot, 2 × 10/100/1000Mbps Uplink RJ45 Ports
PoE Standard IEEE 802.3af / IEEE 802.3at (PoE+)
Single Port PoE Power Maximum 30W per port
Total PoE Power Budget 180W
Port Speed PoE Ports: 10/100Mbps; Uplink Ports: 10/100/1000Mbps; SFP Slot: Gigabit
Switching Capacity 5.2 Gbps
MAC Address Table 8K Entries
Cooling System Fanless Passive Cooling
Housing Material Metal
Installation Style Desktop
Input Power AC 100–240V, 50/60Hz
Operating Temperature -10°C ~ 55°C
Storage Temperature -40°C ~ 70°C
Working Humidity 10% – 90% RH (Non-condensing)
