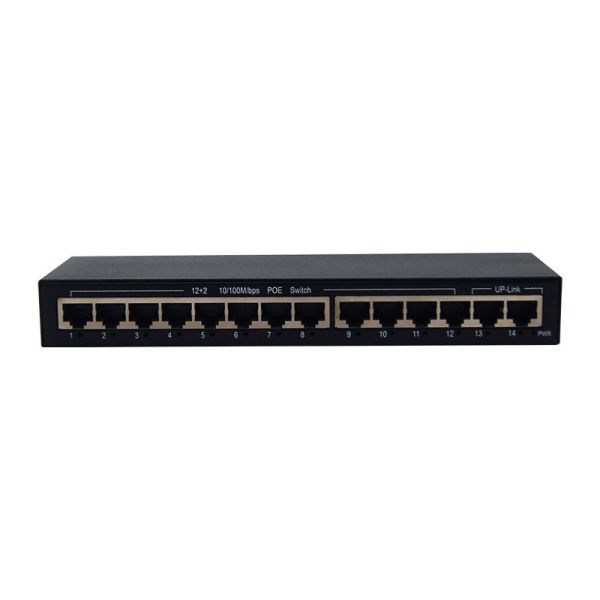

Fast Ethernet 12 Port PoE Switch 10/100Mbps With 2 Uplink RJ45 Ports 802.3af/At Compliant
Fast Ethernet 12 Port PoE Switch 10/100Mbps With 2 Uplink RJ45 Ports 802.3af/At Compliant
Fast Ethernet 12 Port PoE Switch 10/100Mbps With 2 Uplink RJ45 Ports 802.3af/At Compliant
Fast Ethernet 12 Port PoE Switch 10/100Mbps With 2 Uplink RJ45 Ports 802.3af/At Compliant
Fast Ethernet 12 Port PoE Switch 10/100Mbps With 2 Uplink RJ45 Ports 802.3af/At Compliant
Fast Ethernet 12 Port PoE Switch 10/100Mbps With 2 Uplink RJ45 Ports 802.3af/At Compliant
Specifications
Power Supply :
External/Internal power adapter
Mounting :
Desktop or Rackmount
Total Poe Power Budget :
Up to 150W (varies by model)
Place of Origin :
CHINA
Model Number :
ATD-P1202E
Forwarding Rate :
Up to 9.5 Mpps
Number Of Ports :
12+2
Switching Capacity :
Up to 12.8 Gbps (varies by model)
Payment Terms :
T/T
Brand Name :
OEM
Packaging Details :
1pcs/box
Mac Address Table :
4K to 8K entries
Poe Standard :
IEEE 802.3af/at
Certification :
CE ROSH FCC ISO
Supply Ability :
20000Pcs/Month
Delivery Time :
5-7 days
Port Speed :
100 Mbps
Description

Fast Ethernet 12CH PoE Switch with 2 Uplink RJ45 Ports 802.3af/at Compliant

Product Description

Upgrade your network with our 12-Port Fast Ethernet PoE Switch, engineered for seamless connectivity and reliable power delivery. Designed for small businesses, home offices, and surveillance systems, this switch integrates 12 PoE-enabled 10/100Mbps RJ45 ports with 2 dedicated gigabit uplink ports, ensuring high-speed data transmission and flexible network expansion.
Compliant with IEEE 802.3af/at standards, each PoE port auto-detects compatible devices (IP cameras, wireless APs, VoIP phones) and supplies power over Ethernet, eliminating the need for separate power adapters. The robust metal casing and fanless cooling system guarantee silent operation, excellent heat dissipation, and long-term stability even in demanding environments.
With plug-and-play functionality, no complex configuration is required—simply connect your devices and enjoy instant network access. The 2 uplink ports enable connection to routers, NVRs, or other switches, expanding your network capacity effortlessly. Ideal for security surveillance, office networking, and smart home applications, this PoE switch combines performance, durability, and affordability.
Key Features

12 PoE Ports + 2 Uplink Ports: 12×10/100Mbps PoE RJ45 ports; 2×10/100/1000Mbps uplink ports for high-speed expansion.

IEEE 802.3af/at Compliance: Auto-detects and powers PoE devices (IP cameras, AP) with up to 30W per port.

Stable PoE Power Budget: Total PoE power up to 120W, supports continuous operation of multiple devices.

Fanless Metal Housing: Silent operation, efficient heat dissipation, durable for 24/7 use.

Plug & Play: Unmanaged design, no software needed—easy setup for all users.

Wide Compatibility: Works with IP cameras, wireless APs, VoIP phones, NVRs, and routers.

Smart Protection: Over-current, over-voltage, and short-circuit protection for device safety.

Compact & Rackmountable: Desktop or 1U rackmount installation for flexible deployment.

Specifications
Parameter Details
Port Configuration 12×10/100Mbps PoE RJ45 Ports; 2×10/100/1000Mbps Uplink RJ45 Ports
PoE Standard IEEE 802.3af/at (PoE/PoE+)
PoE Power Supply Per Port: Up to 30W; Total Budget: 120W
Data Transfer Rate 10/100Mbps (PoE Ports); 10/100/1000Mbps (Uplink Ports)
Switching Capacity 3.6Gbps
MAC Address Table 8K Entries
Network Protocols CSMA/CD, TCP/IP, IEEE 802.3, IEEE 802.3af/at
Cooling System Fanless (Silent Operation)
Housing Material Metal (Durable & Heat Dissipation)
Installation Desktop / 1U Rackmount
Power Input AC 100–240V, 50/60Hz
Operating Temperature -10°C to 55°C
Storage Temperature -40°C to 75°C
