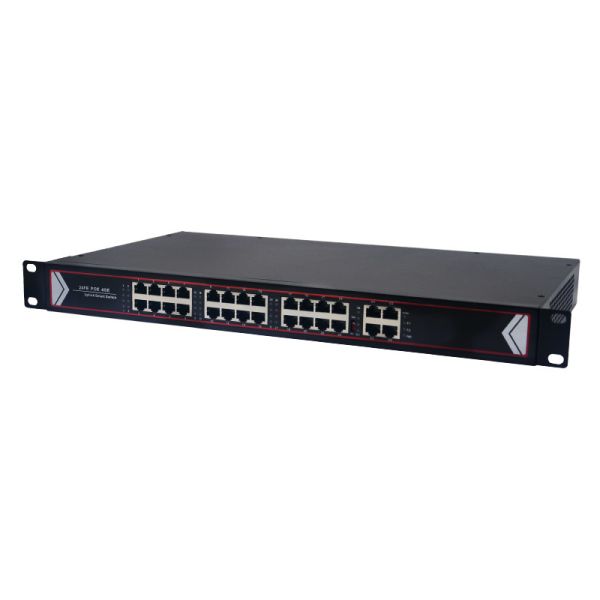

High Density 24CH Ethernet PoE Switch 19 Inch Rackmount 4 Multi Gig Uplink Ports
High Density 24CH Ethernet PoE Switch 19 Inch Rackmount 4 Multi Gig Uplink Ports
High Density 24CH Ethernet PoE Switch 19 Inch Rackmount 4 Multi Gig Uplink Ports
High Density 24CH Ethernet PoE Switch 19 Inch Rackmount 4 Multi Gig Uplink Ports
High Density 24CH Ethernet PoE Switch 19 Inch Rackmount 4 Multi Gig Uplink Ports
High Density 24CH Ethernet PoE Switch 19 Inch Rackmount 4 Multi Gig Uplink Ports
Specifications
Place of Origin :
CHINA
Power Supply :
External Power Adapter or Built-in Power Supply
Model Number :
ATD-P2404EG
Forwarding Rate :
148,800 packets per second per port
Certification :
CE ROSH FCC ISO
Port Type :
RJ45 Ethernet Ports
Number Of Ports :
24*100Mbps POE+4*1000Mbps RJ45
Switching Capacity :
Up to 52 Gbps
Data Transfer Rate :
100 Mbps
Payment Terms :
T/T
Packaging Details :
1pcs/box
Total Poe Power Budget :
Up to 380W depending on model
Supply Ability :
20000pcs/Month
Brand Name :
OEM
Led Indicators :
Power, Link/Activity, POE Status
Maximum Poe Power Per Port :
15.4W (802.3af) or 30W (802.3at)
Poe Standard :
IEEE 802.3af/at
Mounting Options :
Rack-mount
Delivery Time :
5-7 days
Description

High-Density 24CH Ethernet PoE Switch 19" Rack 4 Multi-Gig Uplink Ports, Plug & Play, Surge Protection for Commercial Office & Security Networking

Product Description

Engineered for 19-inch standard server cabinets, this 1U rackmount PoE switch is built for high-capacity network deployment in large surveillance projects, enterprise offices and commercial facilities. It features 24 PoE-enabled fast Ethernet ports paired with four dedicated gigabit uplink ports, effectively lifting network aggregation capacity and avoiding bandwidth congestion when connecting multiple devices.
Fully compliant with IEEE 802.3af and 802.3at PoE+ standards, the unit integrates power and data transmission over a single Ethernet cable. It can automatically identify and supply power to IP cameras, wireless access points and VoIP terminals, greatly simplifying on-site wiring and cutting additional power adapter costs. The reinforced all-metal chassis guarantees structural durability and excellent heat dissipation, perfectly matching centralized cabinet management.
Adopting fanless passive cooling, it runs silently round the clock with no noise disturbance. As an unmanaged switch, it features true plug-and-play functionality, requiring no professional setup or extra software. Built-in multi-layer surge and circuit protection safeguards the whole system against overvoltage, overcurrent and short circuit, delivering dependable performance for long-term continuous operation.

Key Features

  • 1U standard rackmount form factor, compatible with 19-inch network cabinets for unified management
  • 24 high-density 10/100Mbps PoE ports plus 4 gigabit uplink ports, stronger uplink capacity for mass device access
  • Compliant with IEEE 802.3af/at PoE+ standards, single cable realizes power and data synchronous transmission
  • 260-380W overall PoE power budget, up to 30W output per port, stably drives various high-power PoE devices
  • All-metal sturdy housing, great pressure resistance and heat dissipation for harsh indoor working environments
  • Fanless passive cooling system, quiet operation without mechanical failure risks
  • Unmanaged plug-and-play design, easy installation and maintenance for different users
  • Complete surge & circuit protection, effectively preventing damage from abnormal voltage and current

Specifications

Item Specification
Port Configuration 24 × 10/100Mbps PoE RJ45 Ports, 4 × 10/100/1000Mbps Gigabit Uplink Ports
PoE Standard IEEE 802.3af / IEEE 802.3at (PoE+)
Per Port PoE Output Max 30W
Total PoE Power Budget 260-380W
Port Speed PoE Ports: 10/100 Mbps; Uplink Ports: 10/100/1000 Mbps
Switching Capacity 9.6 Gbps
MAC Address Table 8K Entries
Cooling Mode Fanless Passive Cooling
Casing Material Full Metal
Installation 1U Standard 19-inch Rackmount
Input Power AC 100–240V, 50/60Hz
Operating Temperature -10°C ~ 55°C
Storage Temperature -40°C ~ 70°C
Working Humidity 10% – 90% RH (Non-condensing)
Dimensions (L×W×H) 440 × 210 × 44 mm
