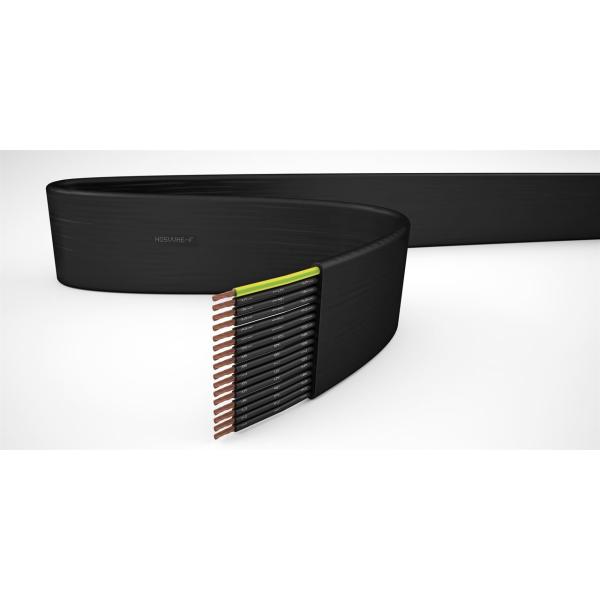

4 Core Flat Control Cable Flexible , Bare Copper Class 5 PVC Insulated Cable
4 Core Flat Control Cable Flexible , Bare Copper Class 5 PVC Insulated Cable
Specifications
Brand Name :
UNI-CABLES
Model Number :
H05VVH6-F
Certification :
CCC,ISO9001
Place of Origin :
CHINA
MOQ :
1000 Meters
Price :
Negotiable
Supply Ability :
10000 per Week
Packaging Details :
100 meters per roll, or 1000 meters per reel
Voltage Rating :
300/500V
Temperature Rating :
Fixed: -30°C to +60°C Flexed: -20°C to +60°C
Minimum Bending Radius :
Fixed: 3 x overall diameter Flexed: 4 x overall diameter
Sheath Colour :
Black
Conductor :
Class 5 flexible copper conductor
Insulation :
PVC TI1
Description

H05VVH6-F 300V PVC Insulated Flexible Flat Control Cable acc. To DIN EN 50214

APPLICATION

As connection and feeder cable for power supply, control and regulation at minimum mechanical loads in dry and damp areas. For the connection of mobile parts of machine tools, conveyor plants and major items of equipment, in particular, if the cable is exposed to strong and frequent bends in only one level.

Conductor material: bare copper

Conductor class: class 5 = fine stranded

Insulation: PVC TI1

Sheathing material: Special PVC-compound

Colour outer sheath: Black

Flame-retardant: VDE 0482-332-1-2/IEC 60332-1-2

Oil-resistant:EN 60811-2-1

Maximum permitted conductor temperature: 60 °C

Permitted outer cable temperature, fixed: -30 - +60 °C

Permitted outer cable temperature, in motion/ during installation: -20 - +60 °C

Bending radius, fixed installation: 3 x DA

Bending radius, moving application: 4 x DA

Size NUMBER
OF
CORES		 SIZE
OF
CORE		 APPROX.
DIMENSION
HEIGHT X WIDTH		 APPROX.
COPPER
WEIGHT		 APPROX.
CABLE
WEIGHT
(mm2) (mm) KG/KM KG/KM
H05VVH6F4G0.75 4 0.75 4.2 x 13.0 29 100
H05VVH6F8G0.75 8 0.75 4.2 x 25.5 58 190
H05VVH6F12G0.75 12 0.75 4.2 x 33.5 86 260
H05VVH6F16G0.75 16 0.75 4.2 x 45.0 102 350
H05VVH6F18G0.75 18 0.75 4.2 x 51.0 130 400
H05VVH6F20G0.75 20 0.75 4.2 x 54.5 144 430
H05VVH6F24G0.75 24 0.75 4.2 x 65.0 173 510
H05VVH6F4G1 4 1 4.4 x 13.5 38 115
H05VVH6F5G1 5 1 4.4 x 16.0 48 135
H05VVH6F8G1 8 1 4.4 x 26.5 77 220
H05VVH6F12G1 12 1 4.4 x 36.0 116 310
H05VVH6F18G1 18 1 4.4 x 55.0 173 470
H05VVH6F24G1 24 1 4.4 x 70.0 231 600
H05VVH6F3X4G1 3 x 4G 1 8.1 x 19.5 115 300
H05VVH6F4X4G1 4 x 4G 1 8.1 x 25.6 154 400
