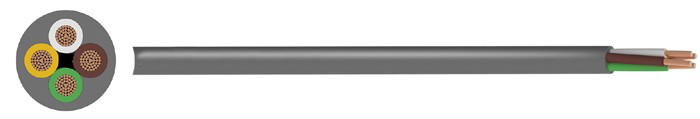

LiHH IEC 60754 LSZH Grey Electronic Cables , PE FRNC Armoured Control Cable
LiHH IEC 60754 LSZH Grey Electronic Cables , PE FRNC Armoured Control Cable
Specifications
Brand Name :
UNI-CABLES
Model Number :
LiHH Control Cable
Certification :
CCC,ISO9001
Place of Origin :
CHINA
MOQ :
1000 Meters
Price :
US$0.25-5.2 per M
Supply Ability :
140000 per Week
Packaging Details :
100 meters per roll, or 1000 meters per reel
Conductor :
Fine-stranded copper conductor
Insulation :
PE (Polyethylene)
Sheath :
FRNC (Flame Retardant Non Corrosive) Type HM2
Voltage Rating :
Voltage Rating
Temperature Rating :
Flexed: +5°C to +70°C
Minimum Bending Radius :
Fixed: 7.5 x overall diameter
Operating Capacity :
70nF/km
Sheath Colour :
Grey
Description

IEC 60754 Standard Control Cable Type LiHH LSZH CU/PE/PVC flexible wire

LiHH IEC 60754 LSZH Grey Electronic Cables , PE FRNC Armoured Control Cable

APPLICATION
LSZH (Low Smoke Zero Halogen) electronic cables are used for connection and signal transfer in measuring and control equipment. For indoor installation in dry and wet rooms, for installation under plaster.

DIMENSIONS

UNI-CABLES
PART NO.		 NO. OF CORES NOMINAL CROSS SECTIONAL AREA
mm²		 NOMINAL OVERALL DIAMETER
mm		 NOMINAL WEIGHT
kg/km
UNI200014 2 0.14 3.3 13
UNI200025 2 0.25 3.6 20
UNI200034 2 0.34 4.3 26
UNI200050 2 0.5 4.5 30
UNI20075 2 0.75 5.2 40
UNI2010 2 1 5.8 50
UNI2015 2 1.5 7 59
UNI300014 3 0.14 3.5 16
UNI300025 3 0.25 3.8 23
UNI300034 3 0.34 4.5 30
UNI300050 3 0.5 4.8 36
UNI30075 3 0.75 5.5 54
UNI3010 3 1 6.1 57
UNI3015 3 1.5 7.4 72
UNI400014 4 0.14 3.7 18
UNI400025 4 0.25 4.1 27
UNI400034 4 0.34 4.8 38
UNI400050 4 0.5 5.2 44
UNI40075 4 0.75 6.1 60
UNI4010 4 1 6.6 67
UNI4015 4 1.5 8 87
UNI500014 5 0.14 4.1 22
UNI500025 5 0.25 4.5 32
UNI500034 5 0.34 5.3 44
UNI500050 5 0.5 6.1 57
UNI50075 5 0.75 6.7 73
UNI5010 5 1 7.5 82
UNI600014 6 0.14 4.2 25
UNI600025 6 0.25 4.9 39
UNI700014 7 0.14 4.4 26
UNI700025 7 0.25 5 41
UNI700034 7 0.34 6.1 59
UNI700050 7 0.5 6.4 71
UNI70075 7 0.75 7.3 91
UNI800014 8 0.14 4.8 30
UNI800025 8 0.25 6.4 50
UNI800034 8 0.34 6.2 65
UNI10014 10 0.14 5.5 36
UNI10025 10 0.25 6.3 58
UNI10034 10 0.34 7.7 80
UNI10050 10 0.5 8.3 101
UNI10075 10 0.75 9.5 137
UNI12014 12 0.14 6.1 44
UNI12025 12 0.25 6.5 66
UNI12034 12 0.34 7.9 94
UNI12050 12 0.5 8.6 117
UNI12075 12 0.75 10.2 166
UNI15014 15 0.14 6.5 57
UNI15025 15 0.25 7.3 80
UNI15034 15 0.34 8.8 115
UNI15050 15 0.5 9.5 145
UNI16025 16 0.25 7.4 85
UNI18014 18 0.14 6.9 65
UNI18025 18 0.25 7.9 95
UNI18034 18 0.34 9.6 135
UNI18050 18 0.5 10.5 171
UNI20014 20 0.14 7.8
