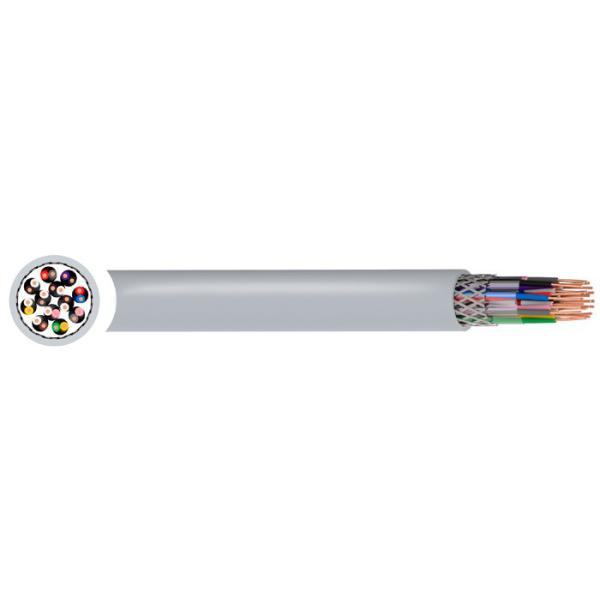

BS EN IEC 60332 - 1 - 2 Grey Flexible Control Cable LiYCY Screened Twisted Pair
BS EN IEC 60332 - 1 - 2 Grey Flexible Control Cable LiYCY Screened Twisted Pair
Specifications
Brand Name :
UNI-CABLES
Model Number :
LiYCY TP
Certification :
CCC,ISO9001
Place of Origin :
CHINA
MOQ :
1000 Meters
Price :
Depends on Quantity
Supply Ability :
120000 per Week
Packaging Details :
100 meters per roll, or 1000 meters per reel
Voltage Rating :
0.14mm²: 350V Above 0.14mm²: 500V
Test Voltage :
0.14mm²: 800V Above 0.14mm²: 1200V
Temperature Rating :
Fixed: -40°C to +80°C Flexed: -5°C to +50°C
Minimum Bending Radius :
Flexed: 10 x overall diameter
Sheath Colour :
Grey
Conductor :
Fine-stranded copper conductor
Insulation :
PVC (Polyvinyl Chloride)
Separator :
Plastic foil tape
Screen :
TCWB (Tinned Copper Wire Braid)
Sheath :
PVC (Polyvinyl Chloride)
Description

BS EN/IEC 60332-1-2 Flexible Control Cable LiYCY Screened Twisted Pair Cable

BS EN IEC 60332 - 1 - 2 Grey Flexible Control Cable LiYCY Screened Twisted Pair

APPLICATION

To be installed in dry and humid rooms and used as a termination and connection cable in the control, measuring and signal technology.

CABLE STANDARDS

Generally to DIN VDE 0812, BS EN/IEC 60332-1-2

BS EN IEC 60332 - 1 - 2 Grey Flexible Control Cable LiYCY Screened Twisted Pair

DIMENSIONS

UNI-Cables
PART NO.		 NO. OF PAIRS NOMINAL CROSS SECTIONAL AREA CONDUCTOR CONSTRUCTION CONDUCTOR LOOP
RESISTANCE		 OVERALL DIAMETER NOMINAL WEIGHT
mm² No. of Strands Strand Diameter
mm		 ohms/km mm kg/km
UNILiYCYTPT200014 2 0.14 18 0.1 276 5.8 34
UNILiYCYTPT200025 2 0.25 14 0.16 151 6.6 46
UNILiYCYTPT200034 2 0.34 19 0.16 115 7.5 64
UNILiYCYTPT20050 2 0.5 16 0.21 75.6 8.2 75
UNILiYCYTPT20075 2 0.75 24 0.21 50.6 8.6 106
UNILiYCYTPT300014 3 0.14 18 0.1 276 6.2 43
UNILiYCYTPT300025 3 0.25 14 0.16 151 7 64
UNILiYCYTPT300034 3 0.34 19 0.16 115 7.9 86
UNILiYCYTPT30050 3 0.5 16 0.21 75.6 8.7 98
UNILiYCYTPT30075 3 0.75 24 0.21 50.6 9.5 140
UNILiYCYTPT400014 4 0.14 18 0.1 276 6.8 50
UNILiYCYTPT400025 4 0.25 14 0.16 151 7.6 73
UNILiYCYTPT400034 4 0.34 19 0.16 115 8.5 113
UNILiYCYTPT40050 4 0.5 16 0.21 75.6 9.3 123
UNILiYCYTPT40075 4 0.75 24 0.21 50.6 10.8 179
UNILiYCYTPT500014 5 0.14 18 0.1 276 7.7 70
UNILiYCYTPT500025 5 0.25 14 0.16 151 8.4 88
UNILiYCYTPT600014 6 0.14 18 0.1 276 7.9 81
UNILiYCYTPT600025 6 0.25 14 0.16 151 8.6 98
UNILiYCYTPT60050 6 0.5 16 0.21 75.6 10.8 162
UNILiYCYTPT60075 6 0.75 24 0.21 50.6 12.5 246
UNILiYCYTPT800014 8 0.14 18 0.1 276 8.6 93
UNILiYCYTPT800025 8 0.25 14 0.16 151 9.4 118
UNILiYCYTPT80050 8 0.5 16 0.21 75.6 11.8 190
UNILiYCYTPT80075 8 0.75 24 0.21 50.6 14.6 300
UNILiYCYTPT1000014 10 0.14 18 0.1 276 9.5 115
UNILiYCYTPT1000025 10 0.25 14 0.16 151 10.7 165
UNILiYCYTPT1200014 12 0.14 18 0.1 276 9.9 125
UNILiYCYTPT120050 12 0.5 16 0.21 75.6 14 342
UNILiYCYTPT12075 12 0.75 24 0.21 50.6 17.8 433
UNILiYCYTPT1600014 16 0.14 18 0.1 276 11.2 148
UNILiYCYTPT16075 16 0.75 24 0.21 50.6 18.7 564

ELECTRICAL CHARACTERISTICS

NOMINAL CROSS SECTIONAL AREA
mm²		 ATTENUATION AT 800Hz
db/km		 MUTUAL CAPACITANCE
0.14 2.3 120
0.25 1.9 120
0.34 1.5 120
0.5 1.3 120
0.75 1.1 120
