Type CVVS JIS Standard PVC Shielded Cable Insulated For Control Circuits
Type CVVS JIS Standard PVC Shielded Cable Insulated For Control Circuits
Specifications
Brand Name :
UNI-CABLES
Model Number :
CVVS
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1000M
Price :
Negotiable
Supply Ability :
7000 Meters per Week
Delivery Time :
15-20 working days
Packaging Details :
200M in Steel Reels
Standard :
IEC60502-1
Conductor :
annealed copper wires
Insulation :
PVC
Sheathing material :
PVC
Sheath Color :
Black
Voltage :
600V
Description

Type CVVS JIS Standard PVC Insulated Shielded Cable for Control Circuits

APPLICATION

CVVS cables are used in control circuits required electrostatic shielding in underground duct, conduit and open air.

Reference Standard:

IEC 60502-1

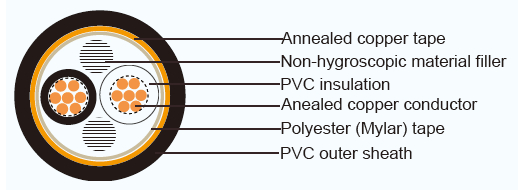

Cable Construction:

Conductor: Stranded annealed copper wires,

Sizes: 1.5 mm2 up to 10 mm2

Insulation: Polyvinyl chloride (PVC)
Color : 2-4 cores-Black, White, Red and Green ,

More than 4 cores: Black core with marking numbers

Filler: Non-hygroscopic material(optional)
Binding tape: Polyester (Mylar) tape (optional)

Shield: Annealed copper tape, 0.1mm
Outer sheath: Polyvinyl chloride (PVC), Black color (A special flame retardant can be supplied)

Technical Characteristics:

Maximum conductor temperature 70oC
Circuit voltage not exceeding 600 volts
Test voltage 3500 volts

Type CVVS JIS Standard PVC Shielded Cable Insulated For Control Circuits

Cable Parameter

O. OF CORES CONDUCTOR THICKNESS OF INSULATION THICKNESS OF
OUTER SHEATH		 OVERALL DIAMETER MAXIMUM CONDUCTOR RESISTANCE (AT 20oC) CABLE WEIGHT
NOMINAL
CROSS- SECTIONAL AREA		 NO.& DIA. OF
WIRES		 DIAMETER
MM2 MM MM MM MM MM OHM/KM KG/KM
2 1.5 7 / 0.53 1.59 0.8 1.8 11.4 12.1 178
2.5 7 / 0.67 2.01 0.8 1.8 12.3 7.41 213
4 7 / 0.85 2.55 1 1.8 14.2 4.61 287
6 7 / 1.04 3.12 1 1.8 15.4 3.08 350
10 7 / 1.35 4.05 1 1.8 16.9 1.83 413
3 1.5 7 / 0.53 1.59 0.8 1.8 11.9 12.1 209
2.5 7 / 0.67 2.01 0.8 1.8 12.9 7.41 254
4 7 / 0.85 2.55 1 1.8 15 4.61 351
6 7 / 1.04 3.12 1 1.8 16.2 3.08 435
10 7 / 1.35 4.05 1 1.8 17.9 1.83 537
4 1.5 7 / 0.53 1.59 0.8 1.8 12.8 12.1 247
2.5 7 / 0.67 2.01 0.8 1.8 13.9 7.41 305
4 7 / 0.85 2.55 1 1.8 16.2 4.61 425
6 7 / 1.04 3.12 1 1.8 17.6 3.08 533
10 7 / 1.35 4.05 1 1.8 19.5 1.83 675
5 1.5 7 / 0.53 1.59 0.8 1.8 13.8 12.1 287
2.5 7 / 0.67 2.01 0.8 1.8 15 7.41 357
4 7 / 0.85 2.55 1 1.8 17.3 4.61 500
6 7 / 1.04 3.12 1 1.8 19.2 3.08 636
10 7 / 1.35 4.05 1 1.8 21.4 1.83 820
6 1.5 7 / 0.53 1.59 0.8 1.8 14.8 12.1 328
2.5 7 / 0.67 2.01 0.8 1.8 16.1 7.41 412
4 7 / 0.85 2.55 1 1.8 19 4.61 586
6 7 / 1.04 3.12 1 1.8 20.8 3.08 744
10 7 / 1.35 4.05 1 1.8 23.2 1.83 968
7 1.5 7 / 0.53 1.59 0.8 1.8 14.8 12.1 349
2.5 7 / 0.67 2.01 0.8 1.8 16.1 7.41 442
4 7 / 0.85 2.55 1 1.8 19 4.61 633
6 7 / 1.04 3.12 1 1.8 20.8 3.08 810
10 7 / 1.35 4.05 1 1.8 23.2 1.83 1,072
8 1.5 7 / 0.53 1.59 0.8 1.8 15.8 12.1 392
2.5 7 / 0.67 2.01 0.8 1.8 17.3 7.41 498
4
