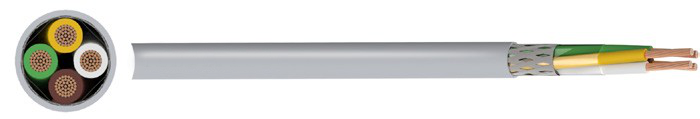

250V VDE 0482-332 - 1 - 2 LiHCH TCWB Cable Grey Class 5 FRNC Copper Conductor
250V VDE 0482-332 - 1 - 2 LiHCH TCWB Cable Grey Class 5 FRNC Copper Conductor
Specifications
Brand Name :
UNI-CABLES
Model Number :
LiHCH LSZH
Certification :
CCC,ISO9001
Place of Origin :
CHINA
MOQ :
2000 Meters
Price :
US$0.25-5.2 per M
Supply Ability :
140000 per Week
Packaging Details :
100 meters per roll, or 1000 meters per reel
Voltage Rating (Uo/U) :
250V
Temperature Rating :
Operating: -30°C to +70°C
Minimum Bending Radius :
Fixed:7.5 x overall diameter
Operating Capacity :
120nF/km
Sheath Colour :
Grey
Conductor :
Class 5 flexible copper conductor
Insulation :
FRNC (Flame Retardant Non Corrosive)
Screen :
TCWB (Tinned Copper Wire Braid)
Sheath :
FRNC (Flame Retardant Non Corrosive)
Description

VDE 0482-332-1-2 Flexible Control Cable Type LiHCH TCWB Cable

250V VDE 0482-332 - 1 - 2 LiHCH TCWB Cable Grey Class 5 FRNC Copper Conductor

APPLICATION

For signal transmission between electronic devices, in computer systems or process control units with requirements to electromagnetic compatibility.

CABLE STANDARDS

VDE 0482-332-1-2/IEC 60332-1, EN 50267, IEC 60754

250V VDE 0482-332 - 1 - 2 LiHCH TCWB Cable Grey Class 5 FRNC Copper Conductor

DIMENSIONS

UNI-Cables
PART NO.		 NO. OF CORES NOMINAL CROSS SECTIONAL AREA
mm²		 OVERALL DIAMETER
mm		 NOMINAL WEIGHT
kg/km
UNILiHCH200014 2 0.14 4.1 22
UNILiHCH200025 2 0.25 4.7 24
UNILiHCH200034 2 0.34 5.1 30
UNILiHCH200050 2 0.5 5.8 38
UNILiHCH20075 2 0.75 6.2 45
UNILiHCH2010 2 1 6.5 72
UNILiHCH2015 2 1.5 7.7 90
UNILiHCH300014 3 0.14 4.3 25
UNILiHCH300025 3 0.25 4.9 29
UNILiHCH300034 3 0.34 5.3 33
UNILiHCH300050 3 0.5 6.1 47
UNILiHCH30075 3 0.75 6.5 60
UNILiHCH3010 3 1 7 90
UNILiHCH3015 3 1.5 8.1 115
UNILiHCH400014 4 0.14 4.5 28
UNILiHCH400025 4 0.25 5.2 35
UNILiHCH400034 4 0.34 5.9 59
UNILiHCH400050 4 0.5 6.5 62
UNILiHCH40075 4 0.75 7.2 92
UNILiHCH4010 4 1 7.5 109
UNILiHCH4015 4 1.5 8.7 153
UNILiHCH500014 5 0.14 4.8 32
UNILiHCH500025 5 0.25 5.8 41
UNILiHCH500034 5 0.34 6.4 56
UNILiHCH500050 5 0.5 7.2 76
UNILiHCH50075 5 0.75 7.8 97
UNILiHCH5010 5 1 8.2 126
UNILiHCH5015 5 1.5 9.5 176
UNILiHCH600014 6 0.14 5.1 35
UNILiHCH600025 6 0.25 6.2 49
UNILiHCH600034 6 0.34 7 59
UNILiHCH600050 6 0.5 7.8 84
UNILiHCH700014 7 0.14 5.2 39
UNILiHCH700025 7 0.25 6.3 51
UNILiHCH700034 7 0.34 7.1 75
UNILiHCH700050 7 0.5 7.9 86
UNILiHCH70075 7 0.75 8.5 120
UNILiHCH7010 7 1 8.8 171
UNILiHCH7015 7 1.5 10.7 220
UNILiHCH800014 8 0.14 6 41
UNILiHCH800025 8 0.25 7.3 58
UNILiHCH800034 8 0.34 8 84
UNILiHCH800050 8 0.5 8.9 135
UNILiHCH100014 10 0.14 6.4 56
UNILiHCH100025 10 0.25 7.7 81
UNILiHCH100034 10 0.34 8.9 106
UNILiHCH100050 10 0.5 9.5 129
UNILiHCH10075 10 0.75 10.7 169
UNILiHCH120014 12 0.14 6.8 74
UNILiHCH120025 12 0.25 7.9 117
UNILiHCH120034 12 0.34 9.1 133
UNILiHCH120050 12 0.5 9.8 148
UNILiHCH120075 12 0.75 11.1 196
UNILiHCH160014 16 0.14 7.2 90
UNILiHCH160025 16 0.25 8.6 124
UNILiHCH160034 16 0.34 9.6 160
UNILiHCH180025 18 0.25 9 126
UNILiHCH180050 18 0.5 11.7 210
UNILiHCH180075 18 0.75 12.7 327
UNILiHCH250014 25 0.14 9.4 135
UNILiHCH250025 25 0.25 10.9 161
UNILiHCH250034 25 0.34 12.5 232
UNILiHCH250050 25 0.5 13.9 319
UNILiHCH250075 25 0.75 15.5 454
