2VDC Renewable Energy 2v 800ah High Capacity Solar Tubular Gel Vrla Battery 800Ah
2VDC Renewable Energy 2v 800ah High Capacity Solar Tubular Gel Vrla Battery 800Ah
2VDC Renewable Energy 2v 800ah High Capacity Solar Tubular Gel Vrla Battery 800Ah
2VDC Renewable Energy 2v 800ah High Capacity Solar Tubular Gel Vrla Battery 800Ah
2VDC Renewable Energy 2v 800ah High Capacity Solar Tubular Gel Vrla Battery 800Ah
2VDC Renewable Energy 2v 800ah High Capacity Solar Tubular Gel Vrla Battery 800Ah
2VDC Renewable Energy 2v 800ah High Capacity Solar Tubular Gel Vrla Battery 800Ah
2VDC Renewable Energy 2v 800ah High Capacity Solar Tubular Gel Vrla Battery 800Ah
Specifications
Brand Name :
AMAXPOWER or OEM
Model Number :
OPzS2-800
Certification :
CE, IEC, ISO
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000000pcs/month
Delivery Time :
25~30days
Packaging Details :
By Carton Box Then onto Pallet
Battery Type :
Storage Battery, Solar Battery, Gel Battery, Sealed Lead Acid Battery, Deep Cycle Gel Battery, Ups Battery
Nominal Voltage :
2V
Electrolyte: :
Acid
Capacity: :
800Ah
Dimension :
191*210*645*700mm
Weight :
58±3%
Terminal :
T5
Color :
Blue
Usage :
Electric Power, Solar, Telecom, Traction Forklift .
Type :
Storage Battery, Solar Battery, Gel Battery, Sealed Lead Acid Battery, Deep Cycle Gel Battery, Ups Battery
Application :
Telecom, Electric Utilities, Control Equipments, Security Systems, Medical Equipments, UPS systems, Railroad Utilities, Photovoltaic Systems, Renewable Energy System
Sealed Type :
Sealed
Warranty :
3 years
Material :
99.99% Pure Lead
Description

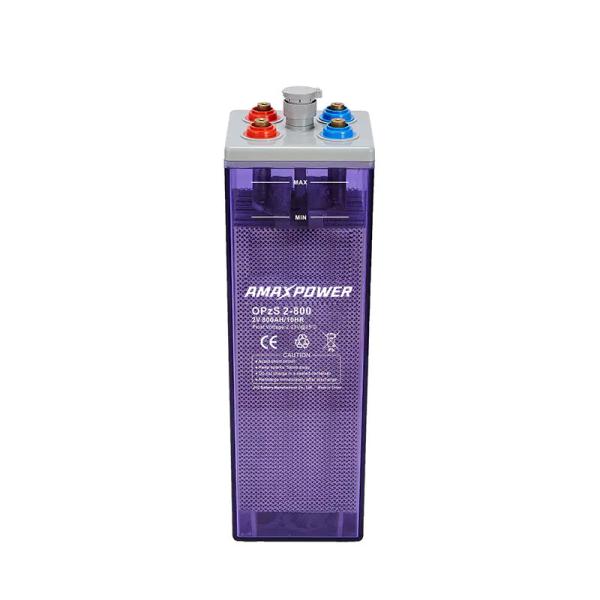

Amaxpower OpzS Battery 2V 800Ah Deep Cycle Solar UPS Battery (2V 800Ah)

Amaxpower opzs battery 2v 800ah OPzS tubular battery high capacity solar battery for renewable energy system

Amaxpower OPzS Tubular Deep Cycle Solar AGM Battery, own 20-25years long life, your best partner for solar market and hot area.

OPzS series of 2V AGM deep cycle batteries are recognized as the most reliable and high quality battery system in the industry. They are designed with advanced patented GEL technology, Long service life designed with 10-15 years, 50% DOD 1200 Cycles, the batteries comply to the most popular international standards, such as IEC60896-21/22, BS6290-4, Eurobat Guide.

OPzS series is mainly designed for solar energy storage, telecommunication, emergency power.etc.

  • OPzS Series Flooded Tubular OPzS Lead Acid Battery 2VDC

  • Voltage: 2V

  • Capacity: 2V200Ah~2V3000Ah

  • Designed floating service life: >20 years @ 25 °C/77 °F.

  • Cyclic usage: 80% DOD, >2000cycles

Specification

Rate Voltage 2V(Single cell)
Nominal Capacity 800Ah @10 hour-rate
Dimension Length 191±1mm (7.52 inches)
Width 210±1mm (8.27 inches)
Container Height 645±2mm (25.39 inches)
Total Height 700±2mm (27.56 inches)
Weight Approx. 58kg (127.87lbs)
Container Material ABS
Reference Capacity (25°C) 20hr (42A) 840Ah
10hr (80A) 800Ah
5hr (136A) 680Ah
1hr (505.6A) 505.6Ah
Max. Discharge Current 3200A (5S)
Internal Resistance (25°C) Approx. 0.3mΩ
Cycle Use Voltage

Initial Charging Current: Less than 160A

Voltage: 2.37-2.4V @ 25°C (77°F)
Float Charging Voltage 2.25-2.3V @ 25°C (77°F)
Operating Temperature Range Discharge -15~50°C
Charge 0~40°C
Storage -15~50°C
Nominal Operating Temperature Range 25°C±3°C (77±5°F)
Capacity affected by Temperature (20 hour rate) 40°C (104°F) 105%
25°C (77°F) 100%
0°C (32°F) 89%
-15°C (5°F) 79%
Self-Discharge Less than 3% at 25°C (77°F) per month

Applications

Telecom, Electric Utilities, Control Equipments, Security Systems, Medical Equipments, UPS systems, Railroad Utilities, Photovoltaic Systems, Renewable Energy System and so on.
