Specifications
Brand Name :
AMAXPOWER or OEM
Model Number :
OPzS2-1200
Certification :
CE, IEC, ISO
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000000pcs/month
Delivery Time :
25~30days
Packaging Details :
By Carton Box Then onto Pallet
Battery Type :
Storage Battery, Solar Battery, Gel Battery, Sealed Lead Acid Battery, Deep Cycle Gel Battery, Ups Battery
Nominal Voltage :
2V
Electrolyte: :
Acid
Capacity: :
1200Ah
Dimension :
275*210*645*700mm
Weight :
85±3%
Terminal :
T5
Color :
Blue
Usage :
UPS, Electric Power, Lighting, Boat, Solar, Telecom etc.
Type :
Storage Battery, Solar Battery, Gel Battery, Sealed Lead Acid Battery, Deep Cycle Gel Battery, Ups Battery
Application :
Telecom, Electric Utilities, Control Equipments, Security Systems, Medical Equipments, UPS systems, Railroad Utilities, Photovoltaic Systems, Renewable Energy System
Sealed Type :
Sealed
Warranty :
3 years
Material :
99.99% Pure Lead
Description

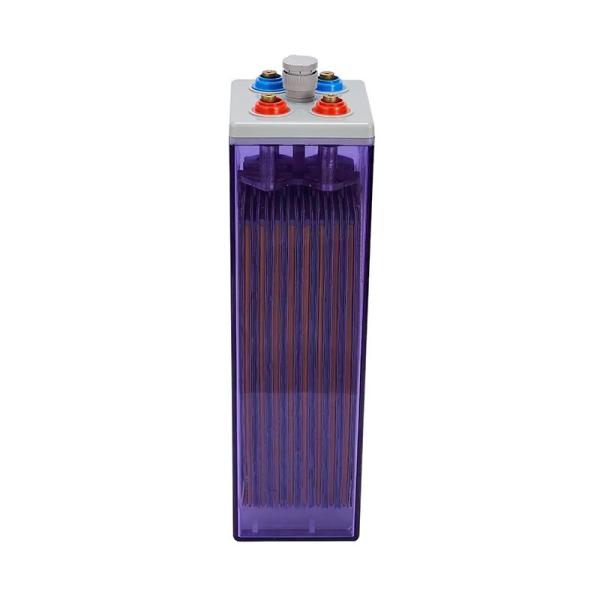

China OPzS Batteries 2V 1200Ah Tubular Flood Lead Acid Batteries (2V 1200Ah)

Amaxpower Long life Solar Battery 2V 1200ah OPzS Tubular Lead Acid Battery For Renewable Energy System and UPS System

Features And Advantages For OPzS Flooded Battery

  • Tubular flooded technology battery
  • Super long service life and low maintenance
  • Reliable and robust against harsh environments
  • Special filter unit for acid fog proof
  • High quality and high safety
  • Special terminal sealed technology
  • Less sensitive to heat issues
  • Transparent containers can be convenient to observe
  • DIN40736-1 compliant
  • Comply with IEC, UL, EN, CE standards, etc.
  • Design life at 25°C (77°F): 20+ years

Amaxpower OPzS series of 2V AGM deep cycle batteries are recognized as the most reliable and high quality battery system in the industry. They are designed with advanced patented GEL technology, Long service life designed with 10-15 years, 50% DOD 1200 Cycles, the batteries comply to the most popular international standards, such as IEC60896-21/22, BS6290-4, Eurobat Guide.

OPzS Tubular Deep Cycle Solar AGM Batteries 2V500Ah, 1000Ah, 2000Ah most popular models Advanced Features:
Φ Environmentally friendly Φ Completely Maintenance-Free Φ Non-Spillable construction design.
Φ Wide Operating Temperature Range(-20°C~+60°C) Φ Longer Life(20years designed life) Φ Explosion Proof
Φ Valve Regulated & High Discharge Rate Capability Φ Low Self Discharge Φ Independent of Position
Φ Ease of Shipment Φ No need of balanced charge or boost ΦNo Memory

Chinese Best Quality OPzS Tubular Deep Cycle Solar AGM Battery Applications:
Φ Communication equipment Φ Telecommunication control equipment Φ Emergency lighting systems Φ Electric power systems Φ Power station
Φ Nuclear power station Φ Solar powered and wind powered systems Φ Load leveling and storage equipment Φ Marine equipment Φ Power generation plants
Φ Alarm systems ΦUninterruptible power supplies and stand-by power for computers Φ Medical equipment Φ Fire and security systems Φ Control equipment
Φ Stand-by electric power.

Specification

Rate Voltage 2V(Single cell)
Nominal Capacity 1200Ah @10 hour-rate
Dimension Length 275±1mm (10.83 inches)
Width 210±1mm (8.27 inches)
Container Height 645±2mm (25.39 inches)
Total Height 700±2mm (27.56 inches)
Weight Approx. 85kg (187.39lbs)
Container Material ABS
Reference Capacity (25°C) 20hr (63A) 1260Ah
10hr (120A) 1200Ah
5hr (204A) 1020Ah
1hr (758.4A) 758.4Ah
Max. Discharge Current 4500A (5S)
Internal Resistance (25°C) Approx. 0.25mΩ
Cycle Use Voltage

Initial Charging Current: Less than 240A

Voltage: 2.37-2.4V @ 25°C (77°F)

Float Charging Voltage 2.25-2.3V @ 25°C (77°F)
Operating Temperature Range Discharge -15~50°C
Charge 0~40°C
Storage -15~50°C
Nominal Operating Temperature Range 25°C±3°C (77±5°F)
Capacity affected by Temperature (20 hour rate) 40°C (104°F) 105%
25°C (77°F) 100%
0°C (32°F) 89%
-15°C (5°F) 79%
Self-Discharge Less than 3% at 25°C (77°F) per month

Applications

Telecom, Electric Utilities, Control Equipments, Security Systems, Medical Equipments, UPS systems, Railroad Utilities, Photovoltaic Systems, Renewable Energy System and so on.
