IEC 2V 600Ah Flat Tubular OPzS Tubular Battery Renewable Energy For Telecom Ups
IEC 2V 600Ah Flat Tubular OPzS Tubular Battery Renewable Energy For Telecom Ups
Specifications
Brand Name :
AMAXPOWER or OEM
Model Number :
OPzS2-600
Certification :
CE, IEC, ISO
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000000pcs/month
Delivery Time :
25~30days
Packaging Details :
By Carton Box Then onto Pallet
Battery Type :
Storage Battery, Solar Battery, Gel Battery, Sealed Lead Acid Battery, Deep Cycle Gel Battery, Ups Battery
Nominal Voltage :
2V
Electrolyte: :
Acid
Capacity: :
600Ah
Dimension :
145*206*645*700mm
Weight :
42.8kg±3%
Terminal :
T5
Color :
Blue
Usage :
Electric Power, Solar, Telecom, Traction Forklift .
Type :
Storage Battery, Solar Battery, Gel Battery, Sealed Lead Acid Battery, Deep Cycle Gel Battery, Ups Battery
Application :
Telecom, Electric Utilities, Control Equipments, Security Systems, Medical Equipments, UPS systems, Railroad Utilities, Photovoltaic Systems, Renewable Energy System
Sealed Type :
Sealed
Warranty :
3 years
Material :
99.99% Pure Lead
Description

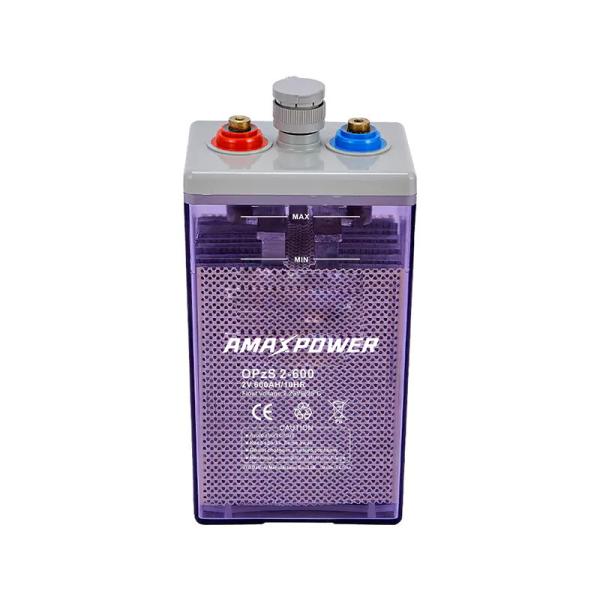

Amaxpower OpzS Series 2V 600Ah Flooded Tubular OpzS Lead Acid Battery (2V 600Ah)

Amaxpower opzs battery 2V 600Ah tubular plate deep cycle gel battery renewable energy battery for solar-telecom-ups

Amaxpower is a flooded Lead Acid battery that adopts Tubular Plate technology to offer high reliability and performance.
is designed for alternative energy system including solar energy system with 20-year design life in float service.
tubular plate technology is applied to provide high performance and long life.
The series is suitable for cyclic use under extreme operating conditions.

  • Tubular flooded technology battery
  • Super long service life and low maintenance
  • Reliable and robust against harsh environments
  • Special filter unit for acid fog proof
  • High quality and high safety
  • Special terminal sealed technology
  • Less sensitive to heat issues
  • Transparent containers can be convenient to observe
  • DIN40736-1 compliant
  • Comply with IEC, UL, EN, CE standards, etc.
  • Design life at 25°C (77°F): 20+ years

Specification

Rate Voltage 2V(Single cell)
Nominal Capacity 600Ah @10 hour-rate
Dimension Length 145±1mm (5.71 inches)
Width 206±1mm (8.11 inches)
Container Height 645±2mm (25.39 inches)
Total Height 700±2mm (27.56 inches)
Weight Approx. 42.8kg (94.36lbs)
Container Material ABS
Reference Capacity (25°C) 20hr (31.5A) 630Ah
10hr (60A) 600Ah
5hr (102A) 510Ah
1hr (379.2A) 379.2Ah
Max. Discharge Current 2500A (5S)
Internal Resistance (25°C) Approx. 0.33mΩ
Cycle Use Voltage

Initial Charging Current: Less than 120A

Voltage: 2.37-2.4V @ 25°C (77°F)
Float Charging Voltage 2.25-2.3V @ 25°C (77°F)
Operating Temperature Range Discharge -15~50°C
Charge 0~40°C
Storage -15~50°C
Nominal Operating Temperature Range 25°C±3°C (77±5°F)
Capacity affected by Temperature (20 hour rate) 40°C (104°F) 105%
25°C (77°F) 100%
0°C (32°F) 89%
-15°C (5°F) 79%
Self-Discharge Less than 3% at 25°C (77°F) per month

Applications

Telecom, Electric Utilities, Control Equipments, Security Systems, Medical Equipments, UPS systems, Railroad Utilities, Photovoltaic Systems, Renewable Energy System and so on.
