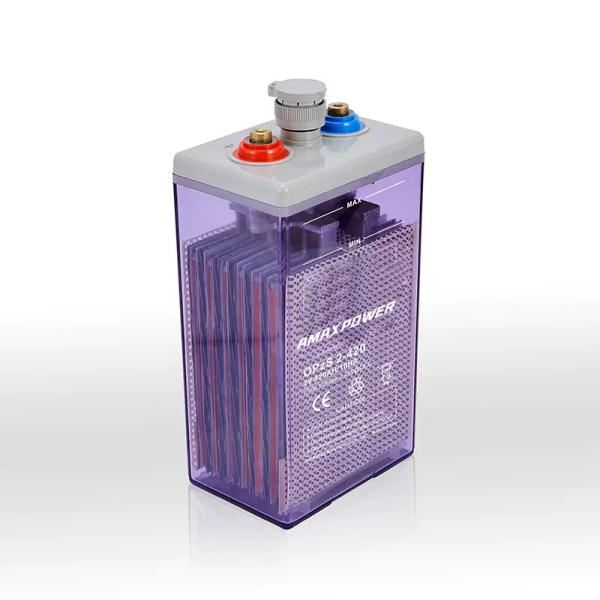

Amaxpower Deep Cycle OPzS Tubular Gel Flooded Batteies For Solar 2V 500Ah
Amaxpower Deep Cycle OPzS Tubular Gel Flooded Batteies For Solar 2V 500Ah
Specifications
Brand Name :
AMAXPOWER or OEM
Model Number :
OPzS2-500
Certification :
CE, IEC, ISO
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000000pcs/month
Delivery Time :
25~30days
Packaging Details :
By Carton Box Then onto Pallet
Battery Type :
Storage Battery, Solar Battery, Gel Battery, Sealed Lead Acid Battery, Deep Cycle Gel Battery, Ups Battery
Nominal Voltage :
2V
Electrolyte: :
Acid
Capacity: :
500Ah
Dimension :
166*206*471*525mm
Weight :
36kg±3%
Terminal :
T5
Color :
Blue
Usage :
UPS, Electric Power, Lighting, Boat, Solar, Telecom etc.
Type :
Storage Battery, Solar Battery, Gel Battery, Sealed Lead Acid Battery, Deep Cycle Gel Battery, Ups Battery
Application :
Telecom, Electric Utilities, Control Equipments, Security Systems, Medical Equipments, UPS systems, Railroad Utilities, Photovoltaic Systems, Renewable Energy System
Sealed Type :
Sealed
Warranty :
3 years
Material :
99.99% Pure Lead
Description

Amaxpower OPzS Tubular Battery 2V 500Ah Deep Cycle Solar Gel Battery (2V 500Ah)

opzs batteries 2V 500Ah tubular deep cycle gel solar battery flooded lead acid battery for security system

Founded in 2005, Amaxpower is focusing on manufacturing high quality standard VRLA AGM battery, GEL battery and OPzS tubular battery. Based on battery technology innovation and deep understanding of customer demand,we are to be the most reliable supplier of battery power, to serve the telecom, solar power, wind power, smart grid etc strategic industry.
OPzS series is traditional tubular flood lead acid batteries. OPzS series provide excellent deep cycle life as well as extra-long float life, and recovery performance because of the tubular positive plate and flood electrolyte. OPzS series is mainly designed for solar energy storage, telecommunication, emergency power.etc.

OPzS series of 2V AGM deep cycle batteries are recognized as the most reliable and high quality battery system in the industry. They are designed with advanced patented GEL technology, Long service life designed with 10-15 years, 50% DOD 1200 Cycles, the batteries comply to the most popular international standards, such as IEC60896-21/22, BS6290-4, Eurobat Guide.

  • OPzS Series Flooded Tubular OPzS Lead Acid Battery 2VDC

  • Voltage: 2V

  • Capacity: 2V200Ah~2V3000Ah

  • Designed floating service life: >20 years @ 25 °C/77 °F.

  • Cyclic usage: 80% DOD, >2000cycles

Specification

Rate Voltage 2V(Single cell)
Nominal Capacity 500Ah @10 hour-rate
Dimension Length 166±1mm (6.45 inches)
Width 206±1mm (8.11 inches)
Container Height 471±2mm (18.54 inches)
Total Height 525±2mm (20.67 inches)
Weight Approx. 36kg (79.37lbs)
Container Material ABS
Reference Capacity (25°C) 20hr (26.25A) 525Ah
10hr (50A) 500Ah
5hr (85A) 425Ah
1hr (316A) 316Ah
Max. Discharge Current 2000A (5S)
Internal Resistance (25°C) Approx. 0.35mΩ
Cycle Use Voltage

Initial Charging Current: Less than 100A

Voltage: 2.37-2.4V @ 25°C (77°F)
Float Charging Voltage 2.25-2.3V @ 25°C (77°F)
Operating Temperature Range Discharge -15~50°C
Charge 0~40°C
Storage -15~50°C
Nominal Operating Temperature Range 25°C±3°C (77±5°F)
Capacity affected by Temperature (20 hour rate) 40°C (104°F) 105%
25°C (77°F) 100%
0°C (32°F) 89%
-15°C (5°F) 79%
Self-Discharge Less than 3% at 25°C (77°F) per month

Applications

Telecom, Electric Utilities, Control Equipments, Security Systems, Medical Equipments, UPS systems, Railroad Utilities, Photovoltaic Systems, Renewable Energy System and so on.
