Specifications
Brand Name :
AMAXPOWER or OEM
Model Number :
OPzS2-2500
Certification :
CE, IEC, ISO
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000000pcs/month
Delivery Time :
25~30days
Packaging Details :
By Carton Box Then onto Pallet
Battery Type :
Storage Battery, Solar Battery, Gel Battery, Sealed Lead Acid Battery, Deep Cycle Gel Battery, Ups Battery
Nominal Voltage :
2V
Electrolyte: :
gel
Capacity: :
2500Ah
Dimension :
487*212*772*826mm
Weight :
183±3%
Terminal :
T5
Color :
Blue
Usage :
UElectric Power, Solar, Telecom, Traction Forklift etc.
Type :
Storage Battery, Solar Battery, Gel Battery, Sealed Lead Acid Battery, Deep Cycle Gel Battery, Ups Battery
Application :
Telecom, Electric Utilities, Control Equipments, Security Systems, Medical Equipments, UPS systems, Railroad Utilities, Photovoltaic Systems, Renewable Energy System
Sealed Type :
Sealed
Warranty :
3 years
Material :
99.99% Pure Lead
Description

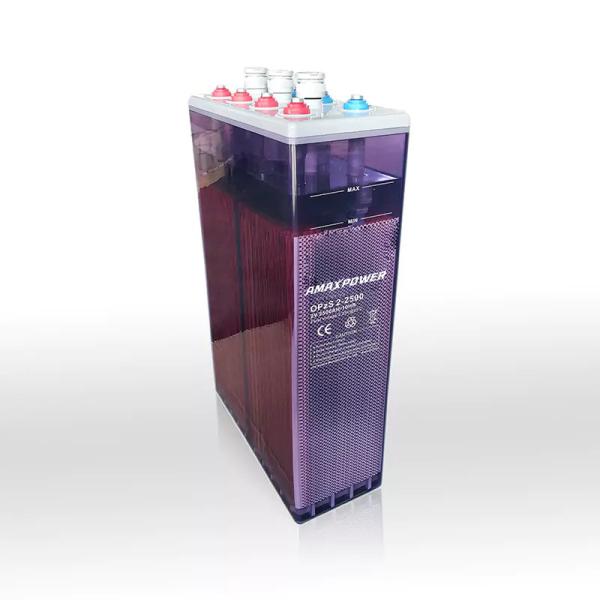

Amaxpower 2V 2500Ah OPzS Tubular Plat Battery Flooded Lead Acid Battery (2V 2500Ah)

Amaxpower Deep Cycle Solar Long Life OPzS Battery 2V 2500Ah Tubular Plat Battery Sealed Lead Acid Batteries -Solar Panel

Amaxpower OPzS series is traditional tubular flood lead acid batteries. OPzS series provide excellent deep cycle life as well as extra-long float life, and recovery performance because of the tubular positive plate and flood electrolyte. OPzS series is mainly designed for solar energy storage, telecommunication, emergency power. etc.

Chinese Best Quality OPzS Tubular Deep Cycle Solar AGM Battery Applications:
Φ Communication equipment Φ Telecommunication control equipment Φ Emergency lighting systems Φ Electric power systems Φ Power station
Φ Nuclear power station Φ Solar powered and wind powered systems Φ Load leveling and storage equipment Φ Marine equipment Φ Power generation plants
Φ Alarm systems ΦUninterruptible power supplies and stand-by power for computers Φ Medical equipment Φ Fire and security systems Φ Control equipment
Φ Stand-by electric power.

OPzS Tubular Deep Cycle Solar AGM Batteries 2V500Ah, 1000Ah, 2000Ah,2500Ah,3000Ah most popular models Advanced Features:
Φ Environmentally friendly Φ Completely Maintenance-Free Φ Non-Spillable construction design.
Φ Wide Operating Temperature Range(-20°C~+60°C) Φ Longer Life(20years designed life) Φ Explosion Proof
Φ Valve Regulated & High Discharge Rate Capability Φ Low Self Discharge Φ Independent of Position
Φ Ease of Shipment Φ No need of balanced charge or boost ΦNo Memory

Specification

Rate Voltage 2V(Single cell)
Nominal Capacity 2500Ah @10 hour-rate
Dimension Length 487±1mm (19.17 inches)
Width 212±1mm (8.35 inches)
Container Height 772±2mm (30.39 inches)
Total Height 826±2mm (32.52 inches)
Weight Approx. 183kg (321.87lbs)
Container Material ABS
Reference Capacity (25°C) 20hr (131.3A) 2626Ah
10hr (200A) 2500Ah
5hr (425A) 2125Ah
1hr (1580A) 1580Ah
Max. Discharge Current 8000A (5S)
Internal Resistance (25°C) Approx. 0.2mΩ
Cycle Use Voltage

Initial Charging Current: Less than 500A

Voltage: 2.37-2.4V @ 25°C (77°F)

Float Charging Voltage 2.25-2.3V @ 25°C (77°F)
Operating Temperature Range Discharge -15~50°C
Charge 0~40°C
Storage -15~50°C
Nominal Operating Temperature Range 25°C±3°C (77±5°F)
Capacity affected by Temperature (20 hour rate) 40°C (104°F) 105%
25°C (77°F) 100%
0°C (32°F) 89%
-15°C (5°F) 79%
Self-Discharge Less than 3% at 25°C (77°F) per month

Applications

Telecom, Electric Utilities, Control Equipments, Security Systems, Medical Equipments, UPS systems, Railroad Utilities, Photovoltaic Systems, Renewable Energy System and so on.
