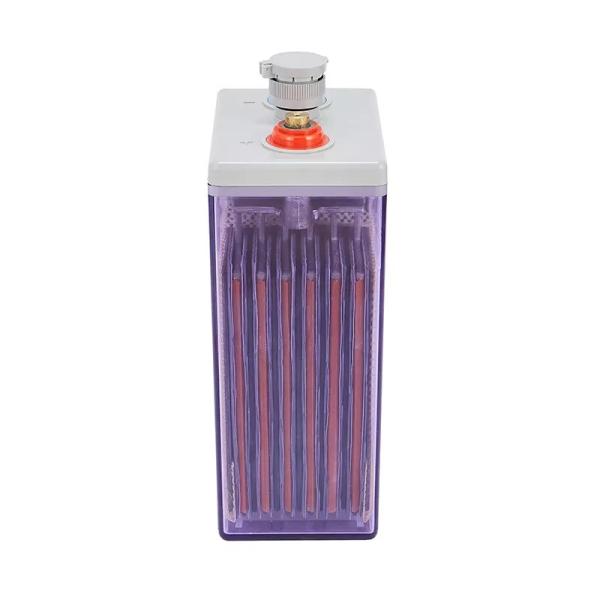

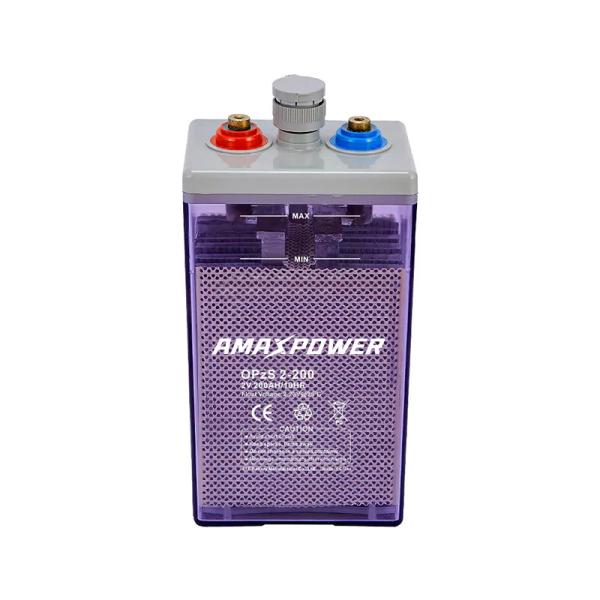

2V 200Ah OPzS Tubular Battery Flooded Lead Acid
2V 200Ah OPzS Tubular Battery Flooded Lead Acid
2V 200Ah OPzS Tubular Battery Flooded Lead Acid
2V 200Ah OPzS Tubular Battery Flooded Lead Acid
Specifications
Brand Name :
AMAXPOWER or OEM
Model Number :
OPzS2-200
Certification :
CE, IEC, ISO
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000000pcs/month
Delivery Time :
25~30days
Packaging Details :
By Carton Box Then onto Pallet
Battery Type :
storage battery, solar battery, gel battery, sealed lead acid battery, deep cycle gel battery, ups battery
Nominal Voltage :
2V
Electrolyte: :
Acid
Capacity: :
200Ah
Dimension :
103*206*354*409mm
Weight :
17.5kg±3%
Terminal :
T5
Color :
Blue
Usage :
UPS, Electric Power, Lighting, Boat, Solar, Telecom etc.
Type :
Lead-Acid batteries
Application :
UPS, Electric Power, Lighting, Boat, Solar, Telecom etc.
Sealed Type :
Sealed
Warranty :
3 years
Material :
99.99% Pure Lead
Description

Amaxpower OPzS Series 2V 200Ah OPzS Tubular Flooded Lead acid Battery (2V 200Ah)

Amaxpower battery 2V 200AH OPzS Tubular flooded lead acid Battery for Solar Pannel Batteries

Amaxpower Battery Applications of OPzS Sereis :

Telecom, Electric Utilities, Control Equipments, Security Systems, Medical Equipments, UPS systems, Railroad Utilities, Photovoltaic Systems, Renewable Energy System and so on.

OPzS series is traditional tubular flood lead acid batteries. OPzS series provide excellent deep cycle life as well as extra-long float life, and recovery performance because of the tubular positive plate and flood electrolyte. OPzS series is mainly designed for solar energy storage, telecommunication, emergency power.etc.

  • OPzS Series Flooded Tubular OPzS Lead Acid Battery 2VDC

  • Voltage: 2V

  • Capacity: 2V200Ah~2V3000Ah

  • Designed floating service life: >20 years @ 25 °C/77 °F.

  • Cyclic usage: 80% DOD, >2000cycles

Specification

Rate Voltage 2V(Single cell)
Nominal Capacity 200Ah @10 hour-rate
Dimension Length 103±1mm (4.06 inches)
Width 206±1mm (8.11 inches)
Container Height 354±2mm (13.94 inches)
Total Height 409±2mm (16.10 inches)
Weight Approx. 17.5kg (38.58lbs)
Container Material ABS
Reference Capacity (25°C) 20hr (10.5A) 210Ah
10hr (20A) 200Ah
5hr (34A) 170Ah
1hr (126.4A) 126.4Ah
Max. Discharge Current 1000A (5S)
Internal Resistance (25°C) Approx. 0.6mΩ
Cycle Use Voltage

Initial Charging Current: Less than 40A

Voltage: 2.37-2.4V @ 25°C (77°F)
Float Charging Voltage 2.25-2.3V @ 25°C (77°F)
Operating Temperature Range Discharge -15~50°C
Charge 0~40°C
Storage -15~50°C
Nominal Operating Temperature Range 25°C±3°C (77±5°F)
Capacity affected by Temperature (20 hour rate) 40°C (104°F) 105%
25°C (77°F) 100%
0°C (32°F) 89%
-15°C (5°F) 79%
Self-Discharge Less than 3% at 25°C (77°F) per month

Applications

Telecom, Electric Utilities, Control Equipments, Security Systems, Medical Equipments, UPS systems, Railroad Utilities, Photovoltaic Systems, Renewable Energy System and so on.
