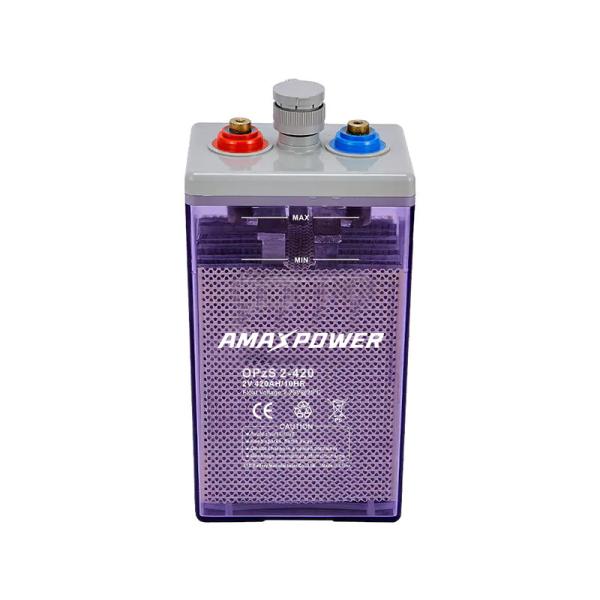

2V 420Ah OPzS Tubular Battery For Solar System
2V 420Ah OPzS Tubular Battery For Solar System
Specifications
Brand Name :
AMAXPOWER or OEM
Model Number :
OPzS2-420
Certification :
CE, IEC, ISO
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000000pcs/month
Delivery Time :
25~30days
Packaging Details :
By Carton Box Then onto Pallet
Battery Type :
Lead acid battery
Nominal Voltage :
2V
Electrolyte: :
Acid
Capacity: :
420Ah
Dimension :
145*206*471*525mm
Weight :
32.5kg±3%
Terminal :
T5
Color :
Blue
Usage :
UPS, Electric Power, Lighting, Boat, Solar, Telecom etc.
Type :
Storage Battery, Solar Battery, Gel Battery, Sealed Lead Acid Battery, Deep Cycle Gel Battery, Ups Battery
Application :
Telecom, Electric Utilities, Control Equipments, Security Systems, Medical Equipments, UPS systems, Railroad Utilities, Photovoltaic Systems, Renewable Energy System
Sealed Type :
Sealed
Warranty :
3 years
Material :
99.99% Pure Lead
Description

Amaxpower OPzS Rechargeable Batteries 2V 420Ah OPzS Tubular Gel Battery (2V 420Ah)

Amaxpower China High Quality opzs batteries 2V 420Ah tubular gel battery flooded deep cycle battery for solar system

OPzS series is traditional tubular flood lead acid batteries. OPzS series provide excellent deep cycle life as well as extra-long float life, and recovery performance because of the tubular positive plate and flood electrolyte. OPzS series is mainly designed for solar energy storage, telecommunication, emergency power.etc.

  • OPzS Series Flooded Tubular OPzS Lead Acid Battery 2VDC

  • Voltage: 2V

  • Capacity: 2V200Ah~2V3000Ah

  • Designed floating service life: >20 years @ 25 °C/77 °F.

  • Cyclic usage: 80% DOD, >2000cycles

Specification

Rate Voltage 2V(Single cell)
Nominal Capacity 420Ah @10 hour-rate
Dimension Length 145±1mm (5.71 inches)
Width 206±1mm (8.11 inches)
Container Height 471±2mm (18.54 inches)
Total Height 525±2mm (20.67 inches)
Weight Approx. 32.5kg (70.55lbs)
Container Material ABS
Reference Capacity (25°C) 20hr (22.05A) 441Ah
10hr (42A) 420Ah
5hr (71.4A) 357Ah
1hr (265.4A) 265.4Ah
Max. Discharge Current 1800A (5S)
Internal Resistance (25°C) Approx. 0.38mΩ
Cycle Use Voltage

Initial Charging Current: Less than 84A

Voltage: 2.37-2.4V @ 25°C (77°F)
Float Charging Voltage 2.25-2.3V @ 25°C (77°F)
Operating Temperature Range Discharge -15~50°C
Charge 0~40°C
Storage -15~50°C
Nominal Operating Temperature Range 25°C±3°C (77±5°F)
Capacity affected by Temperature (20 hour rate) 40°C (104°F) 105%
25°C (77°F) 100%
0°C (32°F) 89%
-15°C (5°F) 79%
Self-Discharge Less than 3% at 25°C (77°F) per month

Applications

Telecom, Electric Utilities, Control Equipments, Security Systems, Medical Equipments, UPS systems, Railroad Utilities, Photovoltaic Systems, Renewable Energy System and so on.
