Flooded Lead Acid OPzS Tubular Battery
Flooded Lead Acid OPzS Tubular Battery
Specifications
Brand Name :
AMAXPOWER or OEM
Model Number :
OPzS2-3000
Certification :
CE, IEC, ISO
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000000pcs/month
Delivery Time :
25~30days
Packaging Details :
By Carton Box Then onto Pallet
Battery Type :
Storage Battery, Solar Battery, Gel Battery, Sealed Lead Acid Battery, Deep Cycle Gel Battery, Ups Battery
Nominal Voltage :
2V
Electrolyte: :
acid
Capacity: :
3000Ah
Dimension :
576*212*772*826mm
Weight :
218±3%
Terminal :
T5
Color :
Blue
Usage :
UPS, Electric Power, Lighting, Boat, Solar, Telecom, Traction Forklift etc.
Type :
Storage Battery, Solar Battery, Gel Battery, Sealed Lead Acid Battery, Deep Cycle Gel Battery, Ups Battery
Application :
Telecom, Electric Utilities, Control Equipments, Security Systems, Medical Equipments, UPS systems, Railroad Utilities, Photovoltaic Systems, Renewable Energy System
Sealed Type :
Sealed
Warranty :
3 years
Material :
99.99% Pure Lead
Description

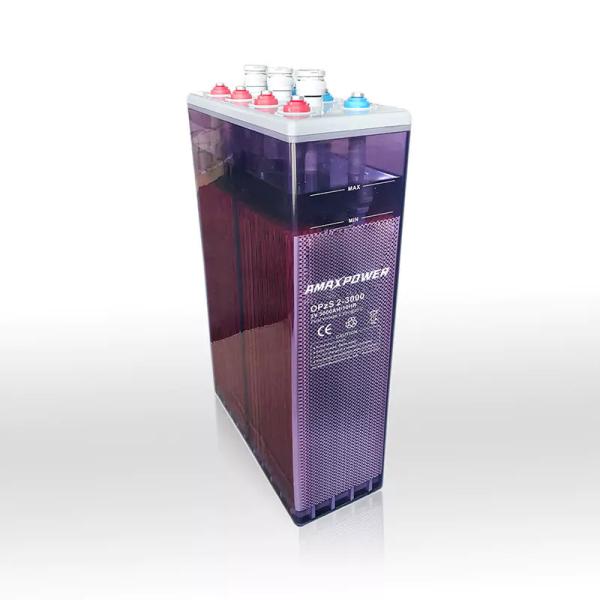

Amaxpower 2V 3000Ah OPzS Tubular Battery Flooded Lead Acid Battery (2V 3000Ah)

Amaxpower Battery Solar System 2V 3000Ah OPzS Tubular Battery Flooded Lead Acid Battery-Wind-Power-Storage-Solar Power

OPzS Tubular Deep Cycle Solar AGM Batteries and Gel Batteries 2V1000Ah, 1200Ah, 1500Ah,2000Ah,2500Ah,3000Ah most popular models Advanced Features:
Φ Environmentally friendly Φ Completely Maintenance-Free Φ Non-Spillable construction design.
Φ Wide Operating Temperature Range(-20°C~+60°C) Φ Longer Life(20years designed life) Φ Explosion Proof
Φ Valve Regulated & High Discharge Rate Capability Φ Low Self Discharge Φ Independent of Position
Φ Ease of Shipment Φ No need of balanced charge or boost ΦNo Memory

OPzS series of 2V AGM deep cycle batteries are recognized as the most reliable and high quality battery system in the industry. They are designed with advanced patented GEL technology, Long service life designed with 10-15 years, 50% DOD 1200 Cycles, the batteries comply to the most popular international standards, such as IEC60896-21/22, BS6290-4, Eurobat Guide

Specification

Rate Voltage 2V(Single cell)
Nominal Capacity 3000Ah @10 hour-rate
Dimension Length 576±1mm (22.68 inches)
Width 212±1mm (8.35 inches)
Container Height 772±2mm (30.39 inches)
Total Height 826±2mm (32.52 inches)
Weight Approx. 218kg (480.61lbs)
Container Material ABS
Reference Capacity (25°C) 20hr (157.5A) 3150Ah
10hr (300A) 3000Ah
5hr (510A) 2550Ah
1hr (1896A) 1896Ah
Max. Discharge Current 10000A (5S)
Internal Resistance (25°C) Approx. 0.19mΩ
Cycle Use Voltage

Initial Charging Current: Less than 600A

Voltage: 2.37-2.4V @ 25°C (77°F)
Float Charging Voltage 2.25-2.3V @ 25°C (77°F)
Operating Temperature Range Discharge -15~50°C
Charge 0~40°C
Storage -15~50°C
Nominal Operating Temperature Range 25°C±3°C (77±5°F)
Capacity affected by Temperature (20 hour rate) 40°C (104°F) 105%
25°C (77°F) 100%
0°C (32°F) 89%
-15°C (5°F) 79%
Self-Discharge Less than 3% at 25°C (77°F) per month

Applications

Telecom, Electric Utilities, Control Equipments, Security Systems, Medical Equipments, UPS systems, Railroad Utilities, Photovoltaic Systems, Renewable Energy System and so on.
