Specifications
Place of Origin :
Guangdong, China
Brand Name :
CNLINKO
Model Number :
BD-24-RJ45-P01,BD-24-RJ45-S01
MOQ :
2
Price :
$1.55-1.80
Type :
RJ45
Application :
Signal
Gender :
male + female
Certificate :
ISO9001/CE/ROHS/REACH
Produce type :
rj45 waterproof connector
Keywords :
waterproof connector
Current rating(A) :
1.5A
Protection level :
IP68
Shell & Insulated Parts :
High Performance Engineer Plastic
Connecting mode :
plug and socket connector
Assembly :
high quality connector
Feature :
Easy Installation
Package :
Carton Box
Description

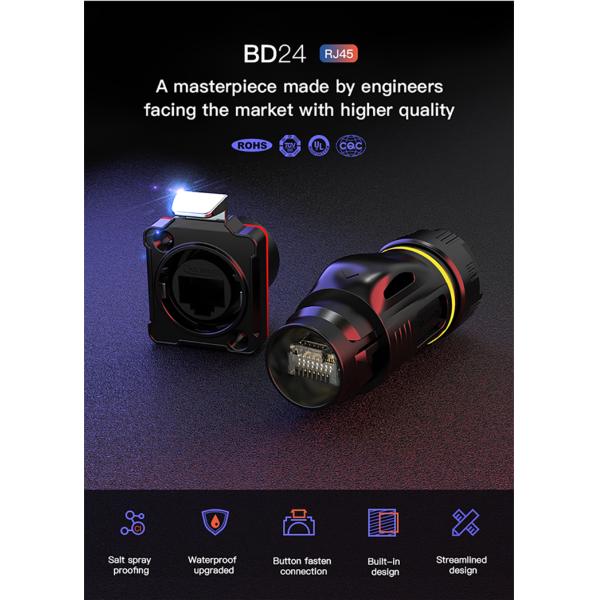

BD24 RJ45 Ethernet LAN Connector Plug Socket CAT6 STP Shield Outdoor Waterproof RJ45 Connector

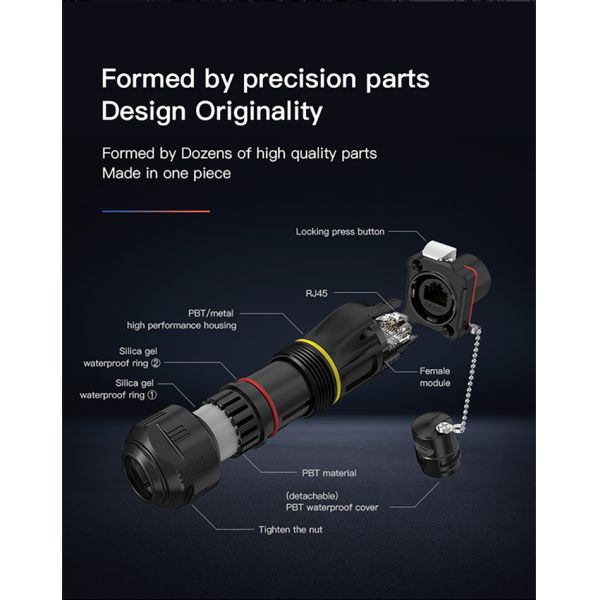

Features:

Multi-purpose design (3-core, RJ45 signal) for a wide range of application needs;
Fully plastic and all-metal two-component design, with strong applicability and complete electromagnetic and radio frequency interference protection;
Gold-plated contacts, high-strength corrosion resistance and electrical conductivity, temperature changes that can be effectively generated by current;

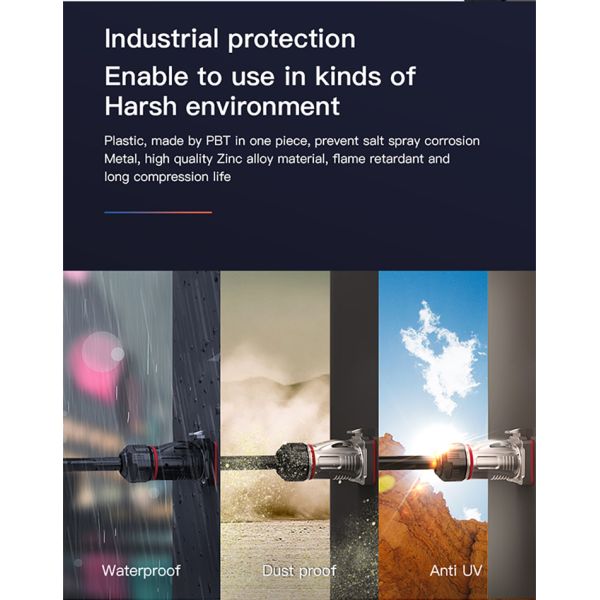

PBT material shell, stable electrical performance, high strength, pressure resistance, high temperature resistance, explosion resistance, corrosion resistance;
IP67 protection level in connection state;
Rated current 25A;

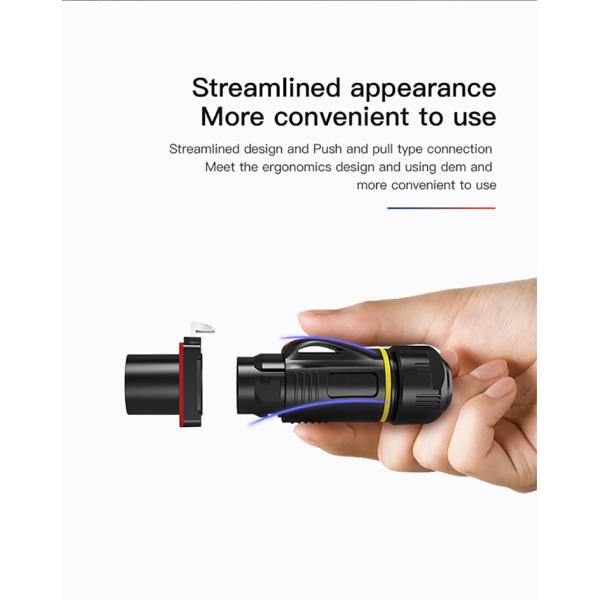

One-piece streamlined design.

Product Description

Cnlinko IP68 RJ45 Ethernet LAN Connector Plug Socket CAT6 STP Shield Outdoor Waterproof RJ45 ConnectorCnlinko IP68 RJ45 Ethernet LAN Connector Plug Socket CAT6 STP Shield Outdoor Waterproof RJ45 ConnectorCnlinko IP68 RJ45 Ethernet LAN Connector Plug Socket CAT6 STP Shield Outdoor Waterproof RJ45 ConnectorCnlinko IP68 RJ45 Ethernet LAN Connector Plug Socket CAT6 STP Shield Outdoor Waterproof RJ45 ConnectorCnlinko IP68 RJ45 Ethernet LAN Connector Plug Socket CAT6 STP Shield Outdoor Waterproof RJ45 ConnectorCnlinko IP68 RJ45 Ethernet LAN Connector Plug Socket CAT6 STP Shield Outdoor Waterproof RJ45 ConnectorCnlinko IP68 RJ45 Ethernet LAN Connector Plug Socket CAT6 STP Shield Outdoor Waterproof RJ45 ConnectorCnlinko IP68 RJ45 Ethernet LAN Connector Plug Socket CAT6 STP Shield Outdoor Waterproof RJ45 ConnectorCnlinko IP68 RJ45 Ethernet LAN Connector Plug Socket CAT6 STP Shield Outdoor Waterproof RJ45 ConnectorCnlinko IP68 RJ45 Ethernet LAN Connector Plug Socket CAT6 STP Shield Outdoor Waterproof RJ45 ConnectorCnlinko IP68 RJ45 Ethernet LAN Connector Plug Socket CAT6 STP Shield Outdoor Waterproof RJ45 ConnectorCnlinko IP68 RJ45 Ethernet LAN Connector Plug Socket CAT6 STP Shield Outdoor Waterproof RJ45 ConnectorCnlinko IP68 RJ45 Ethernet LAN Connector Plug Socket CAT6 STP Shield Outdoor Waterproof RJ45 ConnectorCnlinko IP68 RJ45 Ethernet LAN Connector Plug Socket CAT6 STP Shield Outdoor Waterproof RJ45 ConnectorCnlinko IP68 RJ45 Ethernet LAN Connector Plug Socket CAT6 STP Shield Outdoor Waterproof RJ45 ConnectorCnlinko IP68 RJ45 Ethernet LAN Connector Plug Socket CAT6 STP Shield Outdoor Waterproof RJ45 ConnectorCnlinko IP68 RJ45 Ethernet LAN Connector Plug Socket CAT6 STP Shield Outdoor Waterproof RJ45 Connector

Specifications

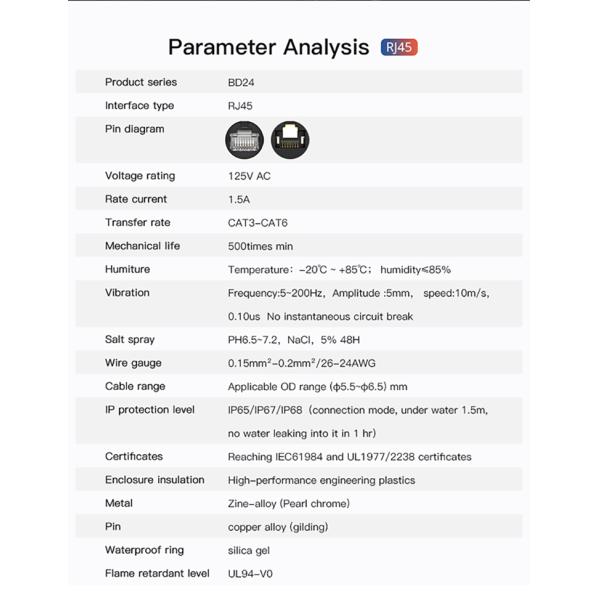

Specifications
Connecting mode Bayonet connection
Protection level IP65/IP67
Cable specification 0.15~0.2mm2 / 14~12AWG
Diameter range Φ5.5mm~Φ7mm
Contact diameter×Qty 8pin
Current rating(A) 1.5A
Temperature rise

/
Operating voltage(AC.V.rms) /
Withstanding voltage(AC.V)1min 1000V
Contact resistance <30mΩ
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~80°C
Method of connecting cable Soldering
Prevent the combustion level UL94-V0
Material
Insulated parts High performance engineering plastics
Hardware metal Zinc alloy(pearl hard chromium)

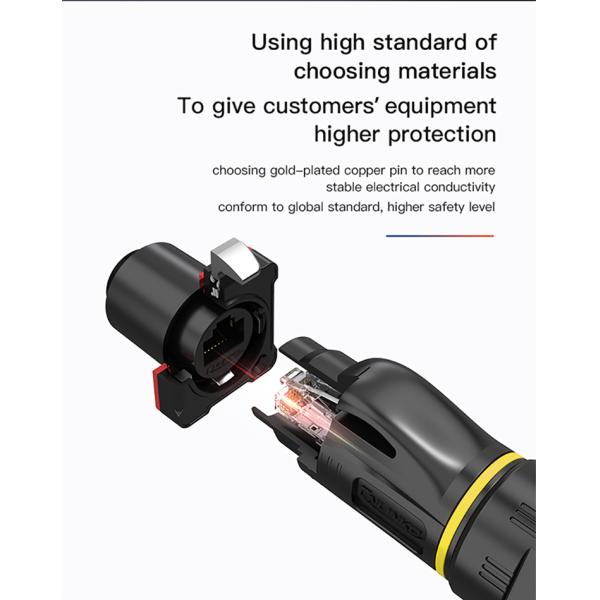

Contact pin Copper alloy(gold-plated 4U)
Spring Stainless steel
Sealing Silica gel
Main characteristics

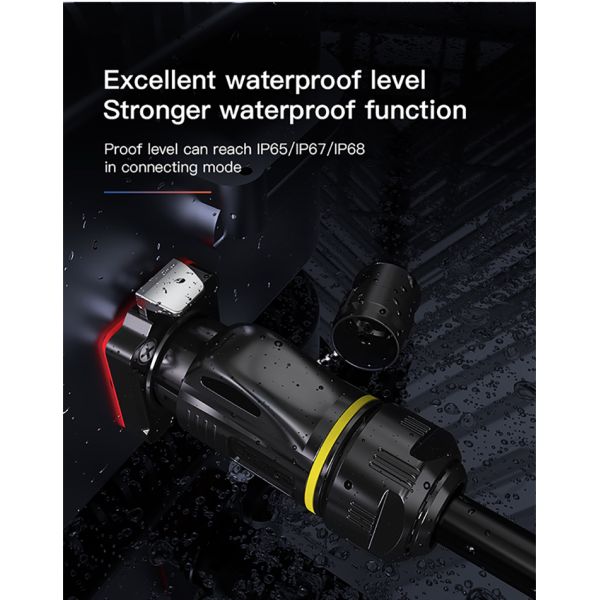

Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
socket with cover

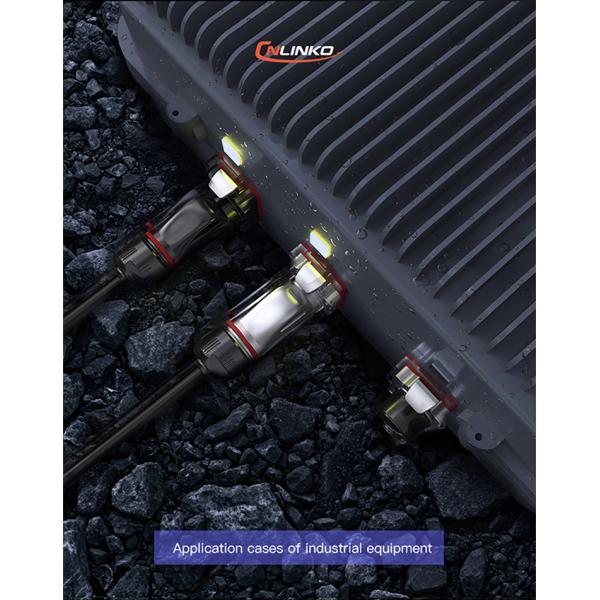

Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
Certifications
