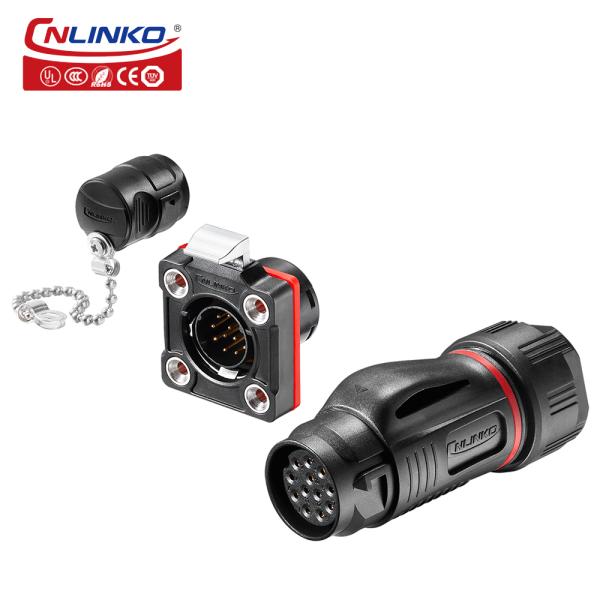

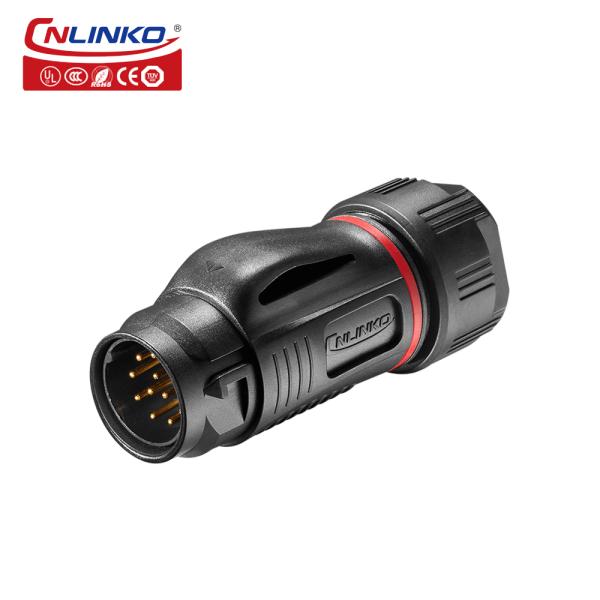

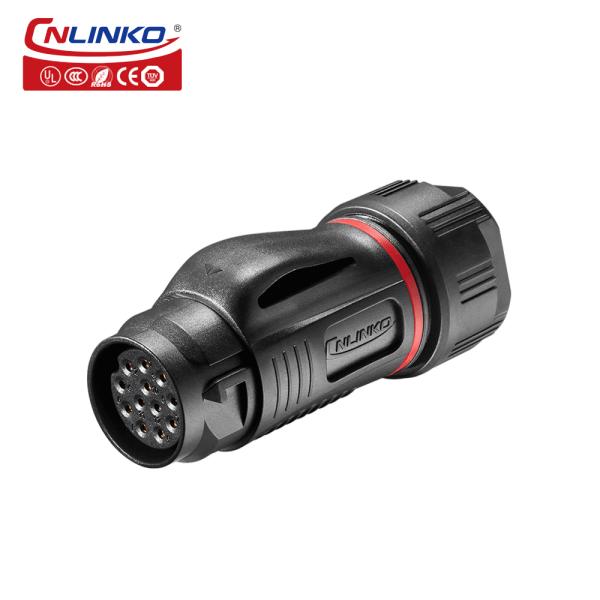

CNlinko M20 Industrial Waterproof IP68 12 Pin Automotive DC Power Connector Outdoor Electrical Cable Wire Adapter Plastic Plug

Specifications

Place of Origin :

Guangdong, China

Brand Name :

CNLINKO

Model Number :

BD-20-C12PE-02-001A&BD-20-J12sx-02-401A

Certification :

CUL,UL,CE,ROHS,CCC,ISO9001

MOQ :

Price :

US$7,25-8,25

Type :

XLR

Application :

Power

Gender :

male and female

Produce type :

Power connector

Current rating(A) :

Operating voltage :

250V

Protection level :

IP67/IP65

Shell Material :

PBT

Contact pin :

Copper alloy(gold-plated)

Assembly :

Solder

Description

CNlinko M20 Industrial Waterproof IP67 12 Pin Automotive DC Power Connector Outdoor Electrical Cable Wire Adapter Plastic Plug

Product Description

BD series : high reliability for longterm work, waterproof and corrosion resistance, high transmission efficiency, high and low temperature resistance and ergonomic design.

1.Has good temperature rise performance, more reliable for long-term continuous operation

2.Using high-end contact material(copper with gold-plated), signal and data transmission is more efficient

3.Reliable connection and smaller size, suitable for road monitoring overhead scenes

4.Waterproof and corrosion-resistant, no fear of road monitoring outdoor environment

5.High and low temperature resistance, can adapt to the influence of the four seasons climate environment.

6.Effectively reduces the distance between the installation panel and the exposed products, saving the external space of the user equipment.

Specifications

BD-20-C07PE-02-001A BD-20-J07SX-02-401A
Connecting mode	Bayonet connection
Protection level	IP67
Cable specification	0.5mm² /20AWG
Diameter range	Φ5.0mm ~Φ6.5mm
Contact diameter×Qty	Φ1.0×12
Current rating(A)	5A
Operating voltage(AC.V.rms)	250V
Withstand voltage(AC.V)1min	1500V
Contact resistance	<5.0mΩ
Insulation resistance	>500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~85°C
Method of connecting cable	Solder
Prevent the combustion level	UL94-V0
Material
Shell&insulated parts	High performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)
Contact pin	Copper alloy(gold-plated)
Spring	Stainless steel
Sealing	Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance

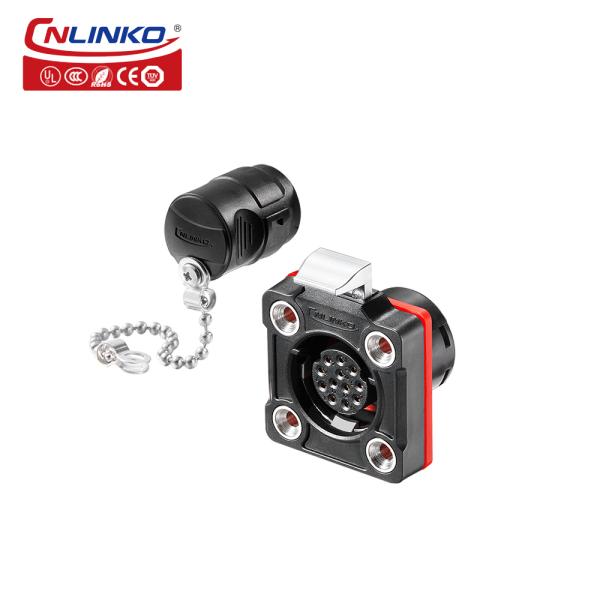

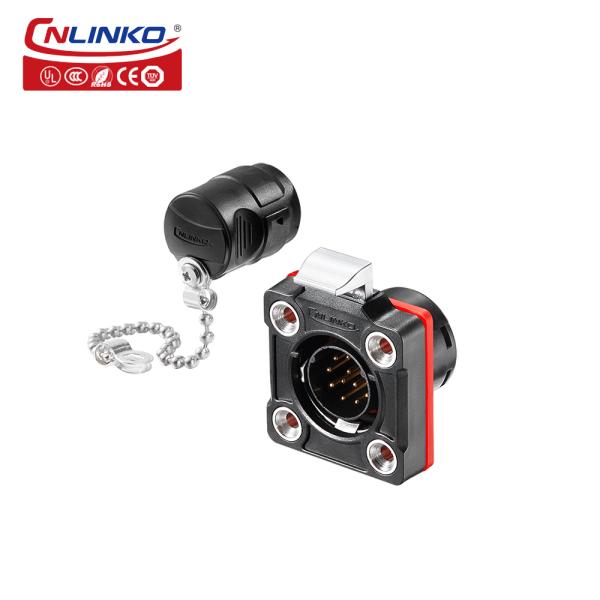

bayonet connect; socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Marine equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
