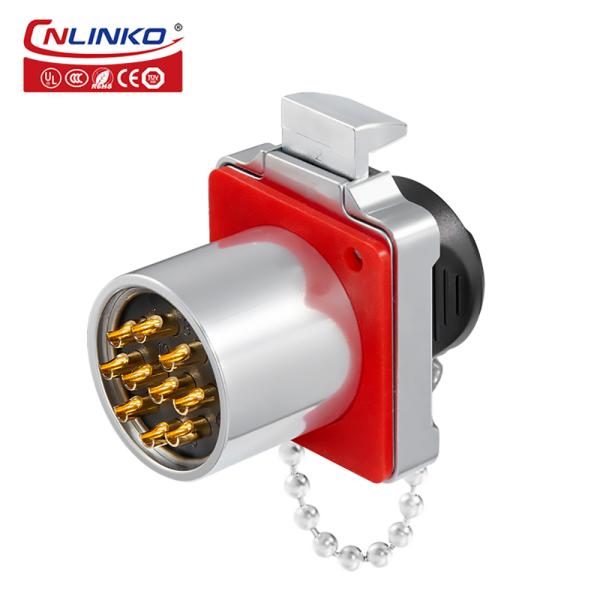

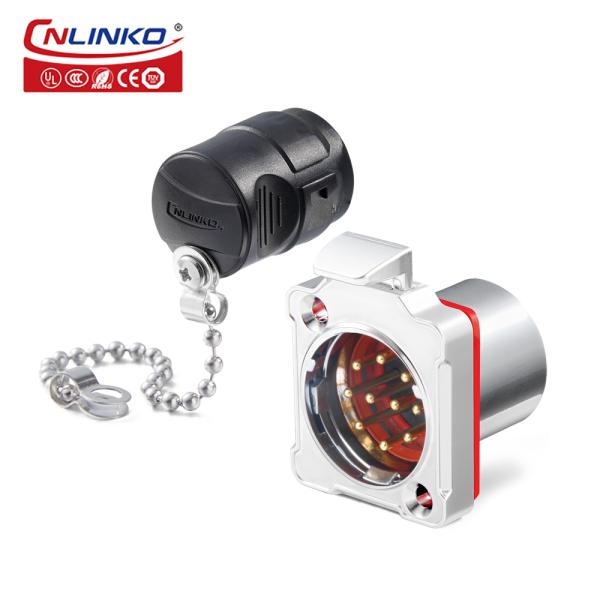

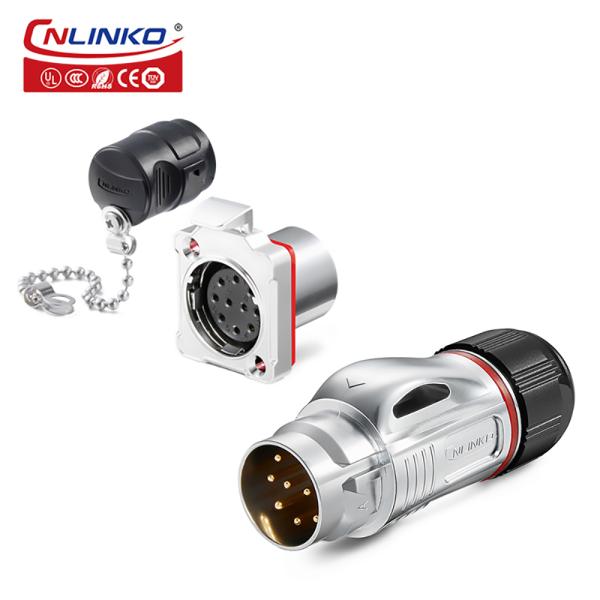

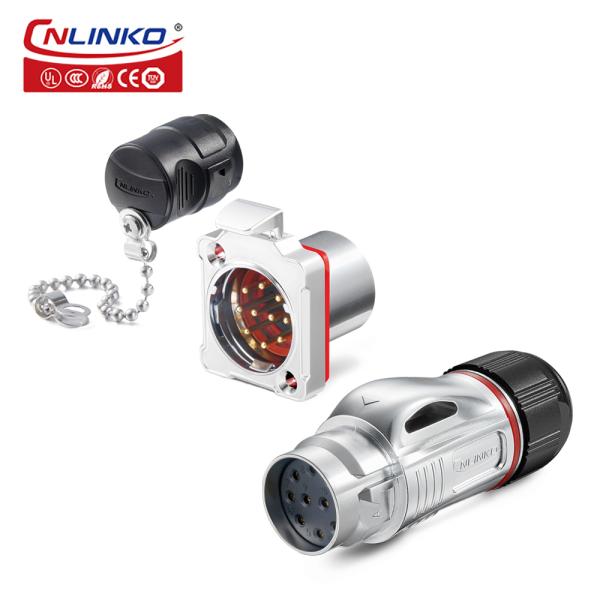

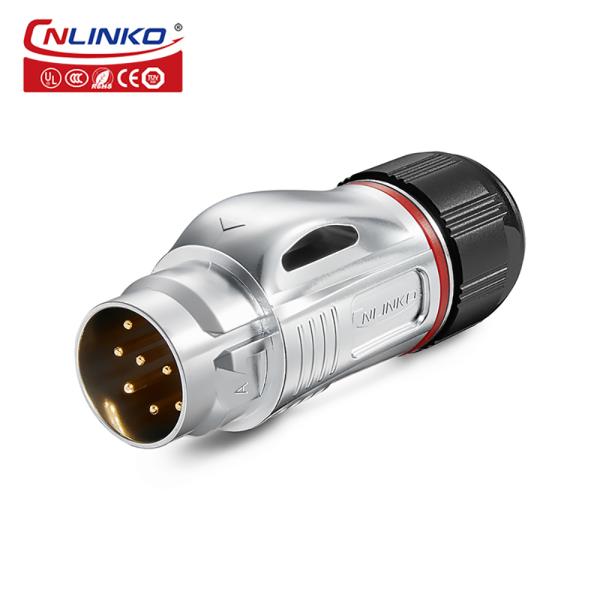

Cnlinko Connector BD24 Industrial Waterproof Metal Female Male IP68 10 Pin Plug Socket Cable Connector
Cnlinko Connector BD24 Industrial Waterproof Metal Female Male IP68 10 Pin Plug Socket Cable Connector
Cnlinko Connector BD24 Industrial Waterproof Metal Female Male IP68 10 Pin Plug Socket Cable Connector
Cnlinko Connector BD24 Industrial Waterproof Metal Female Male IP68 10 Pin Plug Socket Cable Connector
Cnlinko Connector BD24 Industrial Waterproof Metal Female Male IP68 10 Pin Plug Socket Cable Connector
Cnlinko Connector BD24 Industrial Waterproof Metal Female Male IP68 10 Pin Plug Socket Cable Connector
Cnlinko Connector BD24 Industrial Waterproof Metal Female Male IP68 10 Pin Plug Socket Cable Connector
Cnlinko Connector BD24 Industrial Waterproof Metal Female Male IP68 10 Pin Plug Socket Cable Connector
Cnlinko Connector BD24 Industrial Waterproof Metal Female Male IP68 10 Pin Plug Socket Cable Connector
Cnlinko Connector BD24 Industrial Waterproof Metal Female Male IP68 10 Pin Plug Socket Cable Connector
Cnlinko Connector BD24 Industrial Waterproof Metal Female Male IP68 10 Pin Plug Socket Cable Connector
Cnlinko Connector BD24 Industrial Waterproof Metal Female Male IP68 10 Pin Plug Socket Cable Connector
Specifications
Place of Origin :
Guangdong, China
Brand Name :
CNLINKO
Model Number :
BD-24-C10PE-03-001
MOQ :
2
Price :
$6.14-7.16
Type :
Signal
Application :
Industrial
Gender :
male and female
Certificate :
ISO9001/CE/ROHS/REACH/MSDS
Produce type :
Waterproof connector
Keywords :
Industrial connector
Current rating(A) :
10A
Protection level :
IP68
Hardware Matel :
Zinc Alloy (pearl hard chromium)
Connecting mode :
plug and socket connector
Assembly :
Solder high quality connector
Operating voltage :
400V
Contact pin :
Copper alloy(gold-plated)
Description

CNLINKO BD24 Metal 10 Pin IP68 Industrial Waterproof Circular Connector

Product Description

Cnlinko Connector BD24 Industrial Waterproof Metal Female Male IP68 10 Pin Plug Socket Cable Connector

Cnlinko Connector BD24 Industrial Waterproof Metal Female Male IP68 10 Pin Plug Socket Cable ConnectorCnlinko Connector BD24 Industrial Waterproof Metal Female Male IP68 10 Pin Plug Socket Cable ConnectorCnlinko Connector BD24 Industrial Waterproof Metal Female Male IP68 10 Pin Plug Socket Cable ConnectorCnlinko Connector BD24 Industrial Waterproof Metal Female Male IP68 10 Pin Plug Socket Cable ConnectorCnlinko Connector BD24 Industrial Waterproof Metal Female Male IP68 10 Pin Plug Socket Cable ConnectorCnlinko Connector BD24 Industrial Waterproof Metal Female Male IP68 10 Pin Plug Socket Cable ConnectorCnlinko Connector BD24 Industrial Waterproof Metal Female Male IP68 10 Pin Plug Socket Cable ConnectorCnlinko Connector BD24 Industrial Waterproof Metal Female Male IP68 10 Pin Plug Socket Cable ConnectorCnlinko Connector BD24 Industrial Waterproof Metal Female Male IP68 10 Pin Plug Socket Cable ConnectorCnlinko Connector BD24 Industrial Waterproof Metal Female Male IP68 10 Pin Plug Socket Cable ConnectorCnlinko Connector BD24 Industrial Waterproof Metal Female Male IP68 10 Pin Plug Socket Cable Connector

Specifications
Specifications
Connecting mode Bayonet connection
Protection level IP65/IP67
Cable specification 1.0~1.5mm2 / 18~16AWG
Diameter range Φ10mm~Φ13mm
Current rating(A) 10A
Temperature rise

20A contact temperature below 30℃
25A contact temperature below 40℃
Operating voltage(AC.V.rms) 400V
Contact resistance <1.0mΩ
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~80°C
Method of connecting cable Soldering
Prevent the combustion level UL94-V0
Material
Insulated parts High performance engineering plastics
Hardware metal Zinc alloy(pearl hard chromium)
Contact pin Copper alloy(gold-plated 4U)
Spring Stainless steel
Sealing Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
Certifications

Cnlinko Connector BD24 Industrial Waterproof Metal Female Male IP68 10 Pin Plug Socket Cable Connector
