CNLINKO Wire Connector M20 5 Pin IP68 Waterproof Solder Copper Pin Power Plug Connector

Specifications

Place of Origin :

Guangdong, China

Brand Name :

CNLINKO

Model Number :

BD-20-C05PE-03-001A

Type :

XLR

Application :

Power

Gender :

male and female

Produce type :

solder connector

Certification :

CUL,CE,ROHS,CCC,ISO9001

Current rating(A) :

10A

Protection level :

IP67/IP65

Shell & Insulated Parts :

High Performance Engineer Plastic

Hardware Matel :

Zinc Alloy (pearl hard chromium)

Item :

circular connectors

Assembly :

Solder

Operating voltage :

300V

Contact pin :

Copper alloy(gold-plated)

MOQ :

Price :

US$4.99-5.82

Description

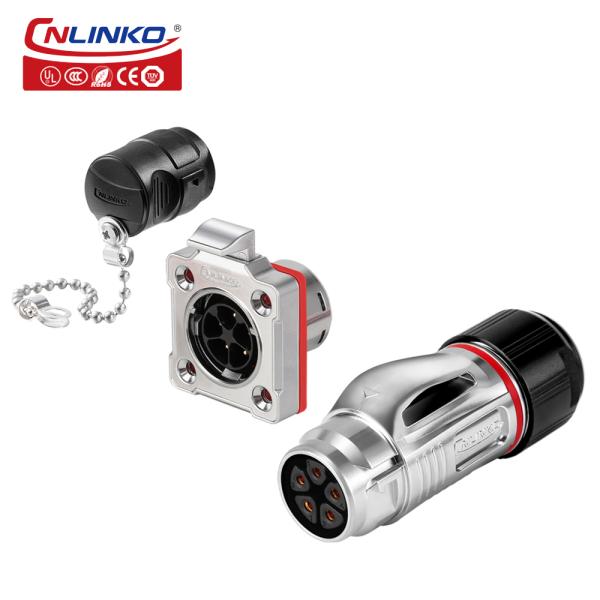

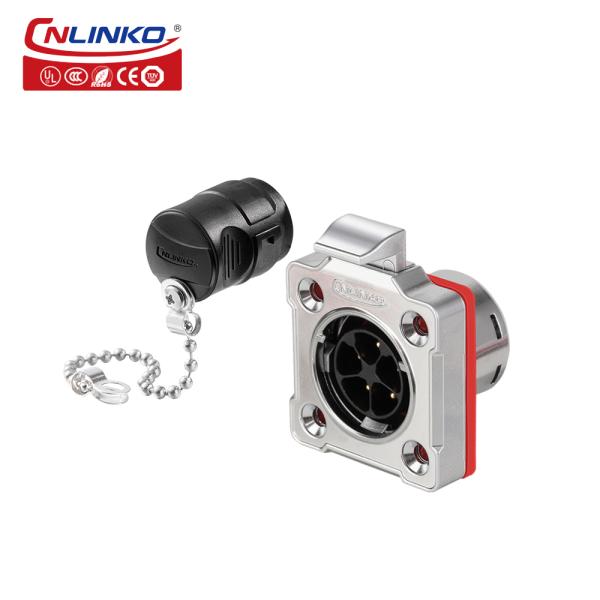

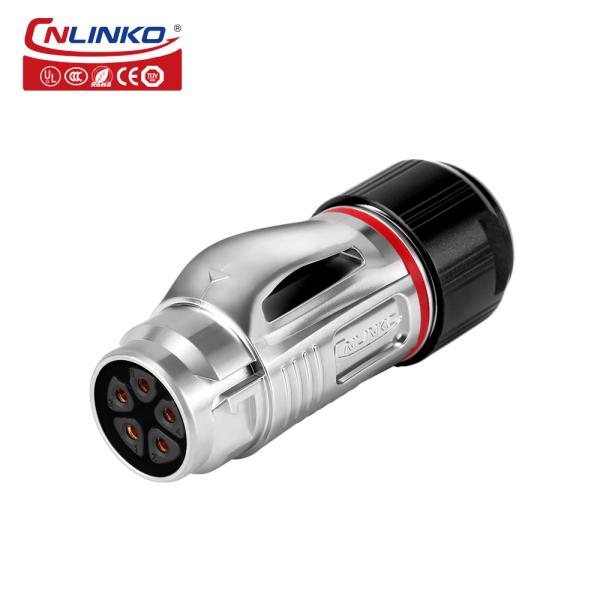

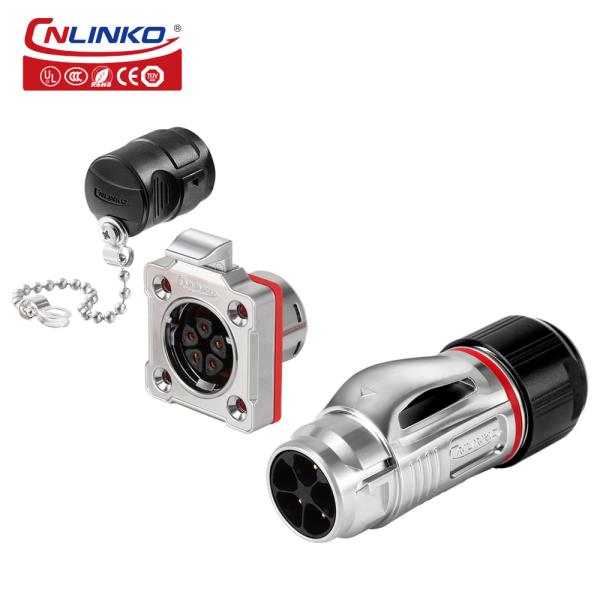

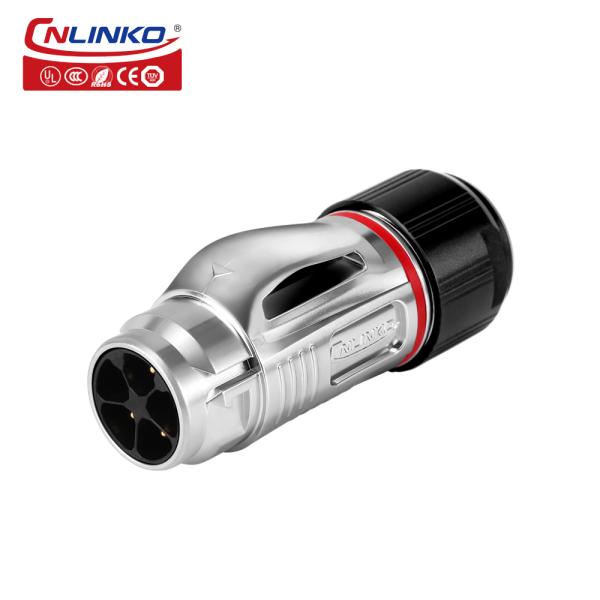

CNLINKO M20 5 Pin IP68 Waterproof Solder Copper pin Connector Plug

Name: CNLINKO Wire Connector M20 5 Pin IP68 Waterproof Solder Copper Pin Power Plug Connector
Brand: CNLINKO
Price: 4.99 USD

Features:

1,Multi-purpose design for a wide range of application needs;

2,Fully plastic and all-metal two-component design;

3,Gold-plated contacts, high-strength corrosion resistance and electrical conductivity;

4,PBT material shell, stable electrical performance, high strength, pressure resistance, high temperature resistance, explosion resistance, corrosion resistance;

5,IP68 protection level in connection state;

Product Description

Specifications

M20 5Pin IP65 Waterproof Solder Copper pin Connector Plug

Specifications
Connecting mode	Snap connection
Protection level	IP65/IP67/IP68
Cable specification	1.5mm² /16AWG
Diameter range	Φ9mm ~Φ12mm
Contact diameter×Qty	Φ1.8*5
Current rating(A)	10A
Temperature rise	10A Per contact at 30k
Operating voltage(AC.V.rms)	300V
Withstanding voltage(AC.V)1min	1500V
Contact resistance	3.0mΩ
Insulation resistance	≥500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~+85°C
Method of connecting cable	Soldering
Prevent the combustion level	UL94-V0
Material
shell & Insulated parts	High performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)
Contact pin	Copper alloy(gold-plated 4U)
Spring	Stainless steel
Sealing	Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67/IP68)
Vibration resistance,impact resistance,stretching resistance
One-button button locking
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery

Advantages

Certifications

FAQ

Q1:What are connectors?

A1:Connectors are connected to the electrical and mechanical components of electrical circuits.They are widely used in various electrical circuits, plays the role of connecting or disconnecting the circuit.

Q2:What classification do connectors have?

A2: In accordance with the frequency points, a high-frequency connector and the low frequency connectors; in accordance with the shape divided circular connectors, rectangular connectors; in accordance with the zoning, there are connectors for printed boards, cabinets, socket connector, connectors for audio equipment, power connector, connectors, etc. for special purposes.

Q3:What is rated voltage?

A3:Rated voltage also known as operating voltage, which mainly depend on the connector insulation material used, the spacing between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its functions.

Q4:What is rated Current?

A4: Rated current, also known as operating current. With the rated voltage, as in the case below the rated current, air plug in general can work properly. Plug in the aviation design process, through the thermal design of the connector to meet the requirements of the rated current, because in contact with on a current flow out of date, due to conductor resistance and contact resistance, contact on will be heat. When the heat exceeds a certain limit, the plug will damage the insulation and the formation of air exposure on the surface of the coating to soften, resulting in failure.

Q5:Why choose cnlinko?

A5: Our product have passed UL,CUL,CCC,CE and ROHS certification. Use PBT material that import from abroad with stable,compression, anti-explosion and anti-deformation; Use Zinc alloy material against high frequency noise and electromagnetic interference Use gold-plated contact with high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.

Q6:Is there cheap shipping cost to import to our country?

A6: For small order,express will be best.And for bulk order,sea ship way is best but take much time. For urgent orders,we suggest via air to airport plus our ship partner send to your door.

Q7:Can we get support if we have our own market position?

A7: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you
