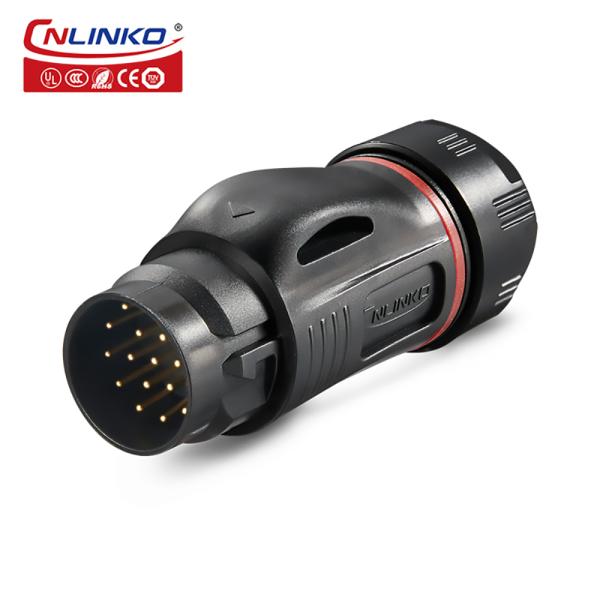

CNLINKO BD24 Plastic 19 Pin Industrial Waterproof Cable Panel Mount Connector
CNLINKO BD24 Plastic 19 Pin Industrial Waterproof Cable Panel Mount Connector
CNLINKO BD24 Plastic 19 Pin Industrial Waterproof Cable Panel Mount Connector
CNLINKO BD24 Plastic 19 Pin Industrial Waterproof Cable Panel Mount Connector
CNLINKO BD24 Plastic 19 Pin Industrial Waterproof Cable Panel Mount Connector
CNLINKO BD24 Plastic 19 Pin Industrial Waterproof Cable Panel Mount Connector
CNLINKO BD24 Plastic 19 Pin Industrial Waterproof Cable Panel Mount Connector
CNLINKO BD24 Plastic 19 Pin Industrial Waterproof Cable Panel Mount Connector
CNLINKO BD24 Plastic 19 Pin Industrial Waterproof Cable Panel Mount Connector
CNLINKO BD24 Plastic 19 Pin Industrial Waterproof Cable Panel Mount Connector
CNLINKO BD24 Plastic 19 Pin Industrial Waterproof Cable Panel Mount Connector
CNLINKO BD24 Plastic 19 Pin Industrial Waterproof Cable Panel Mount Connector
Specifications
Place of Origin :
Guangdong, China
Brand Name :
CNLINKO
Model Number :
BD-24-C19PE-02-001
MOQ :
2
Price :
US$10.60-11.60
Type :
Signal
Application :
Industrial
Gender :

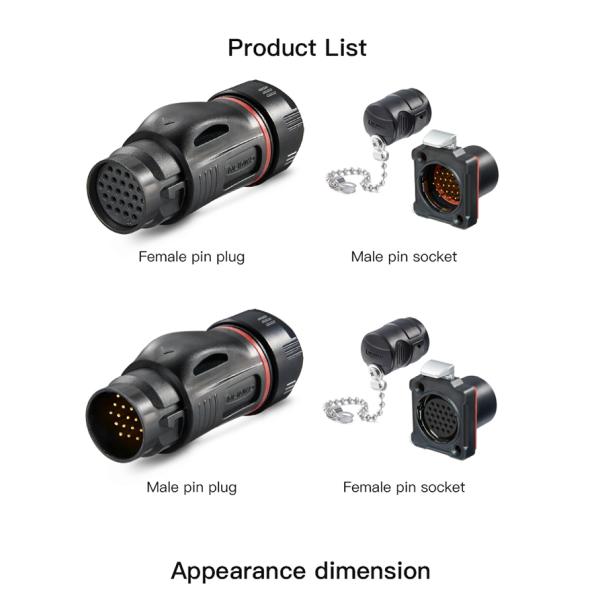

male and female
Certificate :
ISO9001/CE/ROHS/REACH/MSDS
Produce type :
Waterproof connector
Keywords :
Industrial connector
Current rating(A) :
5A
Protection level :
IP67/IP65
Shell & Insulated Parts :
High Performance Engineer Plastic
Connecting mode :
plug and socket connector
Assembly :
Solder high quality connector
Operating voltage :
250V
Contact pin :
Copper alloy(gold-plated)
Description

CNLINKO BD24 Plastic 19 Pin Industrial Waterproof Cable Panel Mount Connector

Features:

Multi-purpose design (power, signal, data) for a wide range of application needs;
Fully plastic and all-metal two-component design, with strong applicability and complete electromagnetic and radio frequency interference protection;

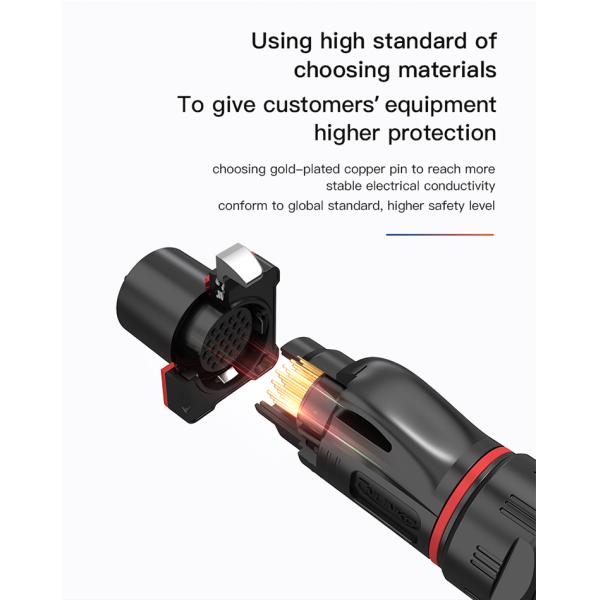

Gold-plated contacts, high-strength corrosion resistance and electrical conductivity, temperature changes that can be effectively generated by current;
PBT material shell, stable electrical performance, high strength, pressure resistance, high temperature resistance, explosion resistance, corrosion resistance;

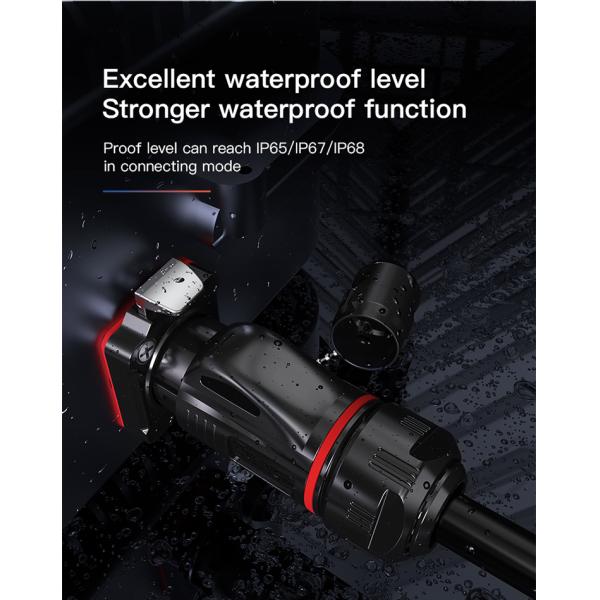

IP67 protection level in connection state;
Rated current 5A/10A/25A;

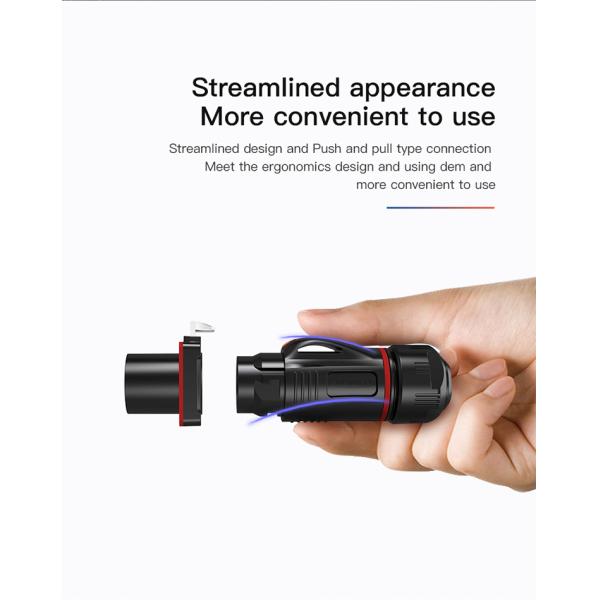

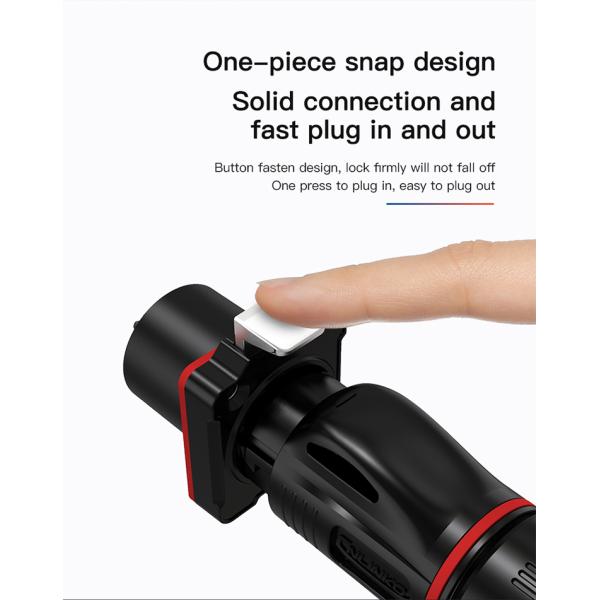

One-piece streamlined design.

Product Description

CNLINKO BD24 Plastic 19 Pin Industrial Waterproof Cable Panel Mount Connector

CNLINKO BD24 Plastic 19 Pin Industrial Waterproof Cable Panel Mount ConnectorCNLINKO BD24 Plastic 19 Pin Industrial Waterproof Cable Panel Mount ConnectorCNLINKO BD24 Plastic 19 Pin Industrial Waterproof Cable Panel Mount ConnectorCNLINKO BD24 Plastic 19 Pin Industrial Waterproof Cable Panel Mount ConnectorCNLINKO BD24 Plastic 19 Pin Industrial Waterproof Cable Panel Mount ConnectorCNLINKO BD24 Plastic 19 Pin Industrial Waterproof Cable Panel Mount ConnectorCNLINKO BD24 Plastic 19 Pin Industrial Waterproof Cable Panel Mount ConnectorCNLINKO BD24 Plastic 19 Pin Industrial Waterproof Cable Panel Mount ConnectorCNLINKO BD24 Plastic 19 Pin Industrial Waterproof Cable Panel Mount ConnectorCNLINKO BD24 Plastic 19 Pin Industrial Waterproof Cable Panel Mount Connector

CNLINKO BD24 Plastic 19 Pin Industrial Waterproof Cable Panel Mount Connector

CNLINKO BD24 Plastic 19 Pin Industrial Waterproof Cable Panel Mount Connector

Specifications
Specifications
Connecting mode Bayonet connection
Protection level IP65/IP67
Cable specification 2.5~4mm2 / 14~12AWG

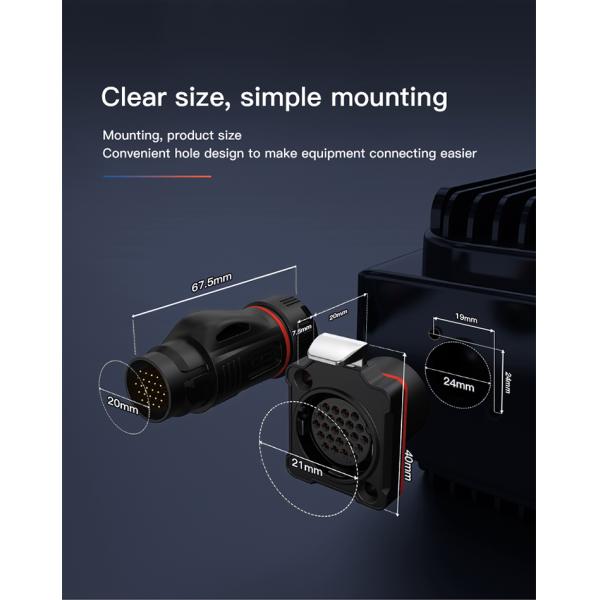

Diameter range Φ8mm~Φ12mm
Contact diameter×Qty Φ3.0×3
Current rating(A) 25A
Temperature rise

20A contact temperature below 30℃































































































































25A contact temperature below 40℃
Operating voltage(AC.V.rms) 500V
Withstanding voltage(AC.V)1min 2500V
Contact resistance <1.0mΩ
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~80°C
Method of connecting cable Soldering
Prevent the combustion level UL94-V0

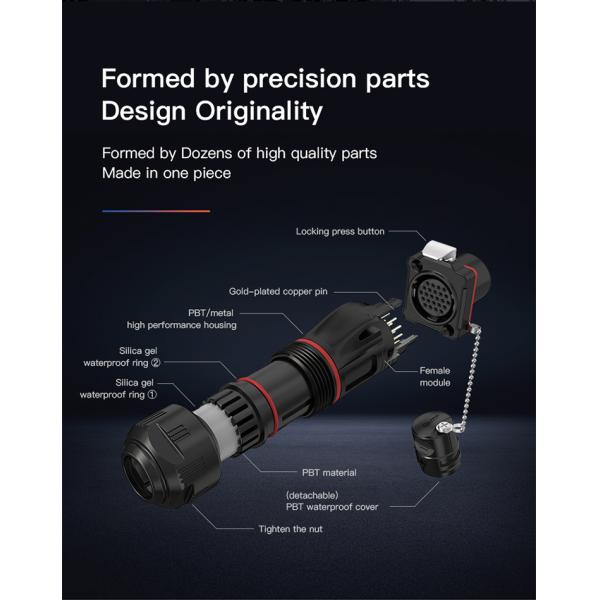

Material
Insulated parts High performance engineering plastics

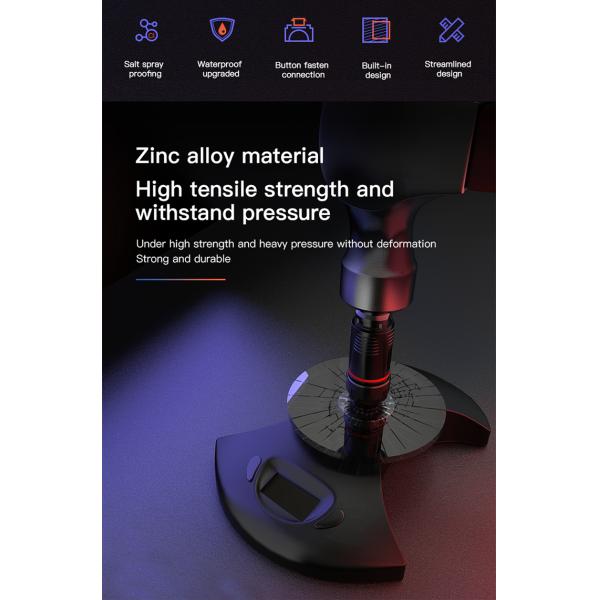

Hardware metal Zinc alloy(pearl hard chromium)
Contact pin Copper alloy(gold-plated 4U)
Spring Stainless steel
Sealing Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
socket with cover

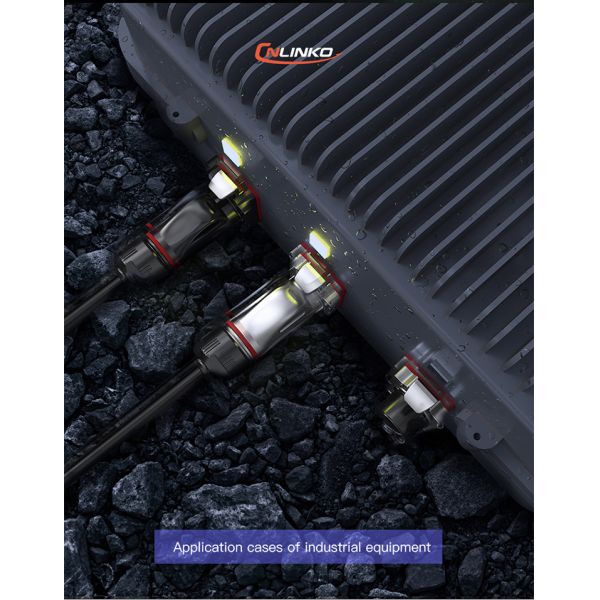

Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery

Certifications

CNLINKO BD24 Plastic 19 Pin Industrial Waterproof Cable Panel Mount Connector
