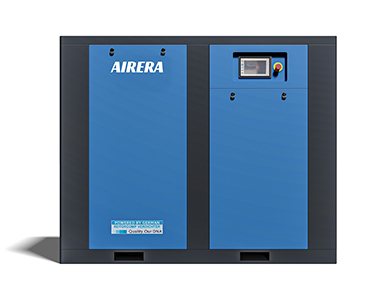

AIRERA AGCD Oil Injected Screw Air Compressor 5.5-400KW 220V-460V 6-20Bar
AIRERA AGCD Oil Injected Screw Air Compressor 5.5-400KW 220V-460V 6-20Bar
AIRERA AGCD Oil Injected Screw Air Compressor 5.5-400KW 220V-460V 6-20Bar
AIRERA AGCD Oil Injected Screw Air Compressor 5.5-400KW 220V-460V 6-20Bar
AIRERA AGCD Oil Injected Screw Air Compressor 5.5-400KW 220V-460V 6-20Bar
AIRERA AGCD Oil Injected Screw Air Compressor 5.5-400KW 220V-460V 6-20Bar
AIRERA AGCD Oil Injected Screw Air Compressor 5.5-400KW 220V-460V 6-20Bar
AIRERA AGCD Oil Injected Screw Air Compressor 5.5-400KW 220V-460V 6-20Bar
Specifications
Place of Origin :
made in China
Brand Name :
AIRERA
MOQ :
1 unit
Price :
2,000-50,000 USD
Packaging Details :
According to international standards
Delivery Time :
3-30 days
Payment Terms :
TT/LC
Supply Ability :
2,000-3,000 per month
Model Number :
AGCD-5.5-400KW
Oil Injected :
TUV ISO9001/4001/6001
Power Source :
Electric
Cooling System :
Water& air cooling system
Application :
Medical, Pharmaceutical, Food Processing
Exhaust Pressure :
Accurate
Vsd :
Optional
Voltage :
220V/380V/415//420/460
Oil Content :
Oil lub
Certificates :
TUV,ISO,CE
Working Pressure :
6-20Bar
Description
AGCD Series Oil-Injected Screw Compressor
High Efficiency Features
  • Coupling connected air screw compressor with reduced noise and enhanced efficiency
  • Optimal balance of quality and pricing in main component selection
  • Upgraded air end with SKF 6 bearings for superior performance
  • Certified performance with ISO, TUV, GA, and SGS certifications
Economic Advantages
Very Competitive Pricing
Low Capital Cost + Low Operating Cost + Exceptional Reliability & Efficiency = Economical Operation
AIRERA AGCD Oil Injected Screw Air Compressor 5.5-400KW 220V-460V 6-20Bar

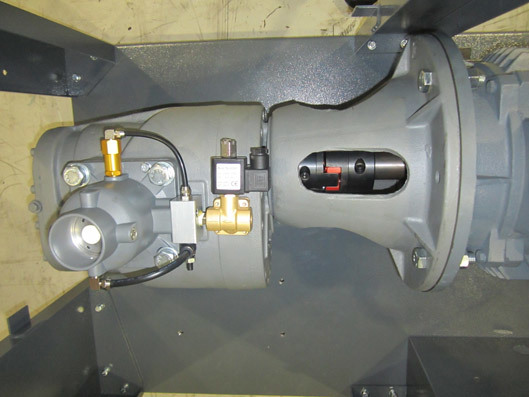

Advanced Screw Rotor Profile Design
The curved face of the rotors engages fully, contributing to hydrodynamic lubrication film formation, reducing lateral leakage contact zones, and improving compressor efficiency while enhancing rotor processing and testing performance.
Utilizing a "bigger rotor, bigger bearing, low-speed" design philosophy, operating speeds are 30-50% lower than competing brands, resulting in reduced noise and vibration, lower compressed air temperatures, improved rotor rigidity, extended service life, and reduced sensitivity to impurities and oil carbonization.
Fully meets or exceeds national standard ISO/GB19153-2003.9001,4001 "air compressors energy efficiency limit" requirements.
AIRERA AGCD Oil Injected Screw Air Compressor 5.5-400KW 220V-460V 6-20Bar
TOP-level electric motor selected
Only electric motors from renowned manufacturers are utilized, featuring an IP55-66 protection rating, TEFC enclosure, SF 1.2 service factor, and IE3–IE6 efficiency classes. As a standard feature, the drive motor is monitored both thermally (via the motor's thermistors) and electronically (via the variable frequency drive's overload protection).
AIRERA AGCD Oil Injected Screw Air Compressor 5.5-400KW 220V-460V 6-20Bar
Oil Separation System
Compressors with power ratings up to 250kW are equipped with an external separator that can be replaced via a simple spin-on/spin-off process. Larger units feature an internal separator cartridge. Thanks to the exceptional separation efficiency of the entire system, the compressor is suitable for operation within a pressure range of 5.0 to 20.0 bar. Special pressure ratings are available upon request.
AIRERA AGCD Oil Injected Screw Air Compressor 5.5-400KW 220V-460V 6-20Bar
Oil Circuit
The oil volume within the equipment is determined in a manner designed to extend oil change intervals (subject to ambient conditions).
An oil level sensor is integrated as a standard feature and is monitored by the controller. All units in this series are equipped with a horizontal oil separation vessel, in which oil is efficiently separated from the compressed air at low velocities.
AIRERA AGCD Oil Injected Screw Air Compressor 5.5-400KW 220V-460V 6-20Bar
High-efficiency, oversized cooling system; Centrifugal fan (optional)
Motor Protection Class: IP44
Motor lacks self-cooling capability
Motor has no Service Factor
High cooling airflow
High cooling air pressure
AIRERA AGCD Oil Injected Screw Air Compressor 5.5-400KW 220V-460V 6-20Bar
Variable Frequency Drive (Optional)
A Variable Frequency Drive minimizes downtime and optimizes supply to meet fluctuating compressed air demands. It eliminates start-up current spikes and continuously regulates the compressor's output—thereby saving on electricity costs! The total cost of the compressed air supply is significantly reduced, and the initial investment is amortized in the shortest possible time.
AIRERA AGCD Oil Injected Screw Air Compressor 5.5-400KW 220V-460V 6-20Bar

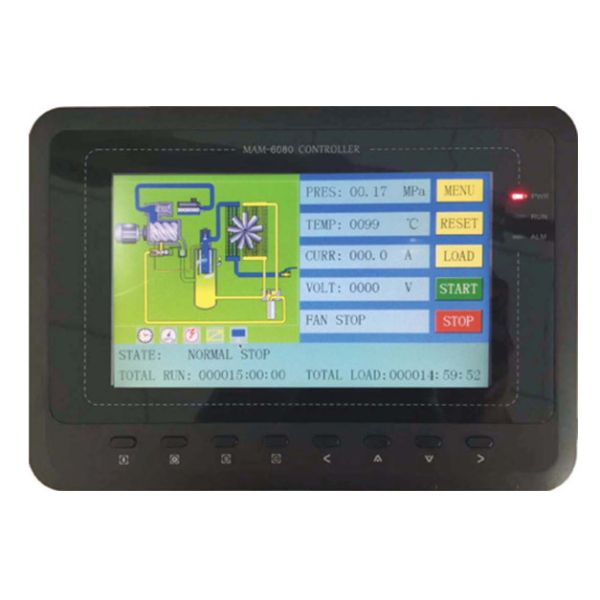

The intelligent controller ensures efficient control and system monitoring
AIRERA AGCD Oil Injected Screw Air Compressor 5.5-400KW 220V-460V 6-20Bar
AIRERA AGCD Oil Injected Screw Air Compressor 5.5-400KW 220V-460V 6-20Bar
Technical Specifications
No. Model Capacity (m³/min) Working Pressure (MPa) Motor Power (kW) Noise Level dB(A) Driven Type Compressed Air Outlet Temperature Oil Content Compressed Air Connection Dimension (mm) Weight (kg)
1 AGCD-1.20/7
AGCD-1.15/8
AGCD-1.0/10
AGCD-0.75/13
AGCD-0.60/15		 1.2
1.15
1.0
0.75
0.6		 0.7
0.8
1.0
1.3
1.5		 7.5 70±3 Direct Ambient temperature +10℃ 1~2ppm G3/4 800*700*930 320
2 AGCD-1.70/7
AGCD-1.65/8
AGCD-1.50/10
AGCD-1.15/13
AGCD-0.90/15		 1.7
1.65
1.5
1.15
0.9		 0.7
0.8
1.0
1.3
1.5		 11 70±3 Direct Ambient temperature +10℃ 1~2ppm G3/4 1080*750*1000 340
3 AGCD-2.35/7
AGCD-2.30/8
AGCD-2.05/10
AGCD-1.65/13
AGCD-1.20/15		 2.35
2.3
2.05
1.65
1.2		 0.7
0.8
1.0
1.3
1.5		 15 70±3 Direct Ambient temperature +10℃ 1~2ppm G1 1080*750*1000 360
4 AGCD-3.10/7
AGCD-3.00/8
AGCD-2.60/10
AGCD-2.10/13
AGCD-1.80/15		 3.1
3.0
2.6
2.1
1.8		 0.7
0.8
1.0
1.3
1.5		 18.5 72±3 Direct Ambient temperature +10℃ 1~2ppm G1 1308*850*1160 450
5 AGCD-3.65/7
AGCD-3.60/8
AGCD-3.20/10
AGCD-2.75/13
AGCD-2.40/15		 3.65
3.6
3.2
2.75
2.4		 0.7
0.8
1.0
1.3
1.5		 22 72±3 Direct Ambient temperature +10℃ 1~2ppm G1 1310*850*1160 470
6 AGCD-5.20/7
AGCD-5.00/8
AGCD-4.50/10
AGCD-3.70/13
AGCD-3.00/15		 5.2
5.0
4.5
3.7
3.0		 0.7
0.8
1.0
1.3
1.5		 30 72±3 Direct Ambient temperature +10℃ / Cooling water temperature +10℃ 1~2ppm G1-1/2 1500*1000*1320 780
7 AGCD-6.70/7
AGCD-6.60/8
AGCD-5.80/10
AGCD-4.70/13
AGCD-4.10/15		 6.7
6.6
5.8
4.8
4.1		 0.7
0.8
1.0
1.3
1.5		 37 72±3 Direct Ambient temperature +10℃ / Cooling water temperature +10℃ 1~2ppm G1-1/2 1500*1000*1320 830
8 AGCD-7.30/7
AGCD-7.00/8
AGCD-6.50/10
AGCD-5.50/13
AGCD-4.70/15		 7.7
7.6
7.0
5.8
4.7		 0.7
0.8
1.0
1.3
1.5		 45 72±3 Direct Ambient temperature +10℃ / Cooling water temperature +10℃ 1~2ppm G1-1/2 1500*1000*1320 900
9 AGCD-10.80/7
AGCD-10.00/8
AGCD-9.00/10
AGCD-7.80/13
AGCD-6.50/15		 10.8
10.0
9.0
7.8
6.5		 0.7
0.8
1.0
1.3
1.5		 55 76±3 Direct Ambient temperature +10℃ / Cooling water temperature +10℃ 1~2ppm G2 1750*1200*1500 1180
10 AGCD-13.60/7
AGCD-13.00/8
AGCD-11.50/10
AGCD-9.80/13
AGCD-7.60/15		 13.6
13.0
11.5
9.8
7.6		 0.7
0.8
1.0
1.3
1.5		 75 76±3 V belt/Direct Ambient temperature +10℃ / Cooling water temperature +10℃ 1~2ppm G2 1750*1200*1500 1340
11 AGCD-17.00/7
AGCD-15.30/8
AGCD-14.00/10
AGCD-12.00/13
AGCD-10.50/15		 17.0
15.3
14.0
12.0
10.5		 0.7
0.8
1.0
1.3
1.5		 90 76±3 Direct Ambient temperature +10℃ / Cooling water temperature +10℃ 1~2ppm DN80 1750*1200*1500 1850
12 AGCD-21.50/7
AGCD-20.50/8
AGCD-17.50/10
AGCD-14.50/13
AGCD-12.00/15		 21.5
20.5
17.5
14.5
12.0		 0.7
0.8
1.0
1.3
1.5		 110 79±3 Direct Ambient temperature +10℃ / Cooling water temperature +10℃ 1~2ppm DN80 2350*1500*1760 2200
13 AGCD-24.50/7
AGCD-23.50/8
AGCD-21.00/10
AGCD-17.50/13
AGCD-14.50/15		 24.5
23.5
21.0
17.5
14.5		 0.7
0.8
1.0
1.3
1.5		 132 79±3 Direct Ambient temperature +10℃ / Cooling water temperature +10℃ 1~2ppm DN80 2350*1500*1760 2260
14 AGCD-29.20/7
AGCD-28.00/8
AGCD-26.00/10
AGCD-22.00/13		 29.2
28.0
26.0
22.0		 0.7
0.8
1.0
1.3		 160 79±3 Direct Ambient temperature +10℃ / Cooling water temperature +10℃ 1~2ppm DN80 2650*1650*1800 3300
15 AGCD-37.50/7
AGCD-36.00/8
AGCD-33.00/10
AGCD-25.00/13		 37.5
36.0
33.0
25.0		 0.7
0.8
1.0
1.3		 200 79±3 Direct Ambient temperature +10℃ / Cooling water temperature +10℃ 1~2ppm DN100 2650*1650*1800 3860
16 AGCD-46.50/7
AGCD-45.00/8
AGCD-40.00/10
AGCD-36.00/13		 46.5
45.0
40.0
36.0		 0.7
0.8
1.0
1.3		 250 79±3 Direct Ambient temperature +10℃ / Cooling water temperature +10℃ 1~2ppm DN100 3000*1950*1850 5700
17 AGCD-52.00/7
AGCD-49.20/8
AGCD-45.00/10
AGCD-41.30/13		 52.0
49.2
45.0
41.3		 0.7
0.8
1.0
1.3		 280 79±3 Direct Ambient temperature +10℃ / Cooling water temperature +10℃ 1~2ppm DN100 3000*1950*1850 5900
18 AGCD-60.60/7
AGCD-56.50/8
AGCD-50.50/10
AGCD-45.00/13		 60.6
56.5
50.5
45.0		 0.7
0.8
1.0
1.3		 315 79±3 Direct Ambient temperature +10℃ / Cooling water temperature +10℃ 1~2ppm DN100 3000*1950*1850 6800
19 AGCD-71.50/7
AGCD-64.60/8
AGCD-55.50/10
AGCD-46.50/13		 71.5
64.6
55.5
46.5		 0.7
0.8
1.0
1.3		 355 79±3 Direct Ambient temperature +10℃ / Cooling water temperature +10℃ 1~2ppm DN125 5000*2050*2200 8500
20 AGCD-600W
AGCD-600W		 86.0
73.5		 0.8
1.0		 450 79±3 Direct Cooling water temperature +10℃ 1~2ppm DN150 4500*2500*2200 12500
21 AGCD-670W
AGCD-670W		 95.0
82.0		 0.8
1.0		 500 79±3 Direct Cooling water temperature +10℃ 1~2ppm DN150 4500*2500*2200 12900
22 AGCD-750W
AGCD-750W		 104.0
90.5		 0.8
1.0		 560 79±3 Direct Cooling water temperature +10℃ 1~2ppm DN150 4500*2500*2200 13500
Important Notes:
  • Parameters and colors are designed according to customer requirements. Specifications are for reference only; final parameters in technical drawings shall prevail.
  • Cooling methods (air/water), oil content, weight, and dimensions can be customized according to user requirements and will be finalized in the technical agreement.
  • Frequency inverters available as optional equipment.
  • 1-year comprehensive warranty with 3-year warranty on air end components.
