110KW Belt driven air-cooling oil inject screw compressor
110KW Belt driven air-cooling oil inject screw compressor
110KW Belt driven air-cooling oil inject screw compressor
110KW Belt driven air-cooling oil inject screw compressor
110KW Belt driven air-cooling oil inject screw compressor
110KW Belt driven air-cooling oil inject screw compressor
110KW Belt driven air-cooling oil inject screw compressor
110KW Belt driven air-cooling oil inject screw compressor
Specifications
Brand Name :
AIRERA
Model Number :
AGFD-110B C
Certification :
ISO、CE、TUV
Place of Origin :
made in China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
TT/LC,Western Union,D/P,D/A
Supply Ability :
2,000-3,000 per month
Delivery Time :
5-15 days
Packaging Details :
wooden case
Cooling air flow（m3/hr） :
11200
Application :
Medical, Pharmaceutical, Food Processing
Oil Content :
Oil inject
Working Pressure :
0.8-1.5Bar
Cooling type :
Air cooling
Driven type :
Belt driven
Description

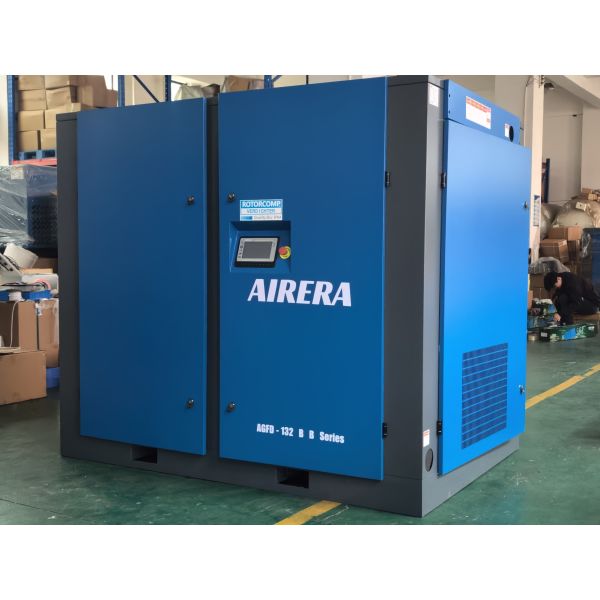

AIRERA 110kW Industrial Belt-Drive Screw Compressor: Engineering Reliable Power for High-Demand Production

The AIRERA 110kW belt-driven oil-injected screw compressor is a high-performance solution designed for large-scale industrial operations that require consistent and powerful air delivery. Featuring an advanced air-cooling system and a precision-engineered air end, this unit ensures optimal thermal management and mechanical reliability even in continuous 24/7 working environments. The reinforced belt-drive configuration offers the dual benefits of simplified maintenance and flexible pressure customization, while AIRERA’s signature smart control technology monitors every parameter to maximize energy efficiency and component longevity.

Advantages of AGFD Oil-Inject Air Screw Compressor:

  • Extraordinary cooling system, 20-30% cooling performance than the old models, and friendly to do maintain job to cooler and cooling fan

110KW Belt driven air-cooling oil inject screw compressor

  • Higher efficient energy-saving motor in SF.1.2.IP55, IE3 CE&MEPS to increase 15% efficiency

    110KW Belt driven air-cooling oil inject screw compressor


  • Pick-up French Schneider white-color high-end contractor to keep more durable in extreme environment

110KW Belt driven air-cooling oil inject screw compressor


Technical Specifications - 110KW Air Cooling Compressor
110KW Air Cooling Compressor Parameters
ITEM UNIT MODEL AGFD-110
Free air delivery m³/min 20.5-13.5
Max. working pressure MPa 0.8-1.5
Compressor type
Oil inject screw compressor
Cooling type
Air cooling
Driven type
Belt driven
Inlet status - Temperature ℃ ≤55
Inlet status - Pressure MPa Atmospheric pressure
Inlet status - Relative humidity
≤90%
Noise Level dB(A) ≤79
Residual oil content ppm ≤1
Drive rotor speed rpm 3200~2040
Compressed air outlet temperature ℃ Ambient temperature＋10
Cooling air flow m³/hr 11200
Control mode
Intelligent controller
Safety valve set pressure MPa 0.88 ~ 1.6
Lubricating water volume L 70
Compressed air outlet connection
G2-1/2
Dimension - L mm 1860
Dimension - W mm 1350
Dimension - H mm 1750
Net Weight kg 1870
Motor - Model
Y2280M2-2
Motor - Speed rpm 2980
Motor - Rated Power KW 110
Motor - Service factor
1.2
Motor - Protection type
IP55
Motor - Efficiency
IE3
Motor - Startup mode
ʏ-Δ starting
Motor - Voltage V 380(Special on request)
Motor - Frequency Hz 50(Special on request)
Motor - Rated current A 203
Motor - Weight of motor kg 922
110KW Belt driven air-cooling oil inject screw compressor
AIRERA 110kW Screw Air Compressor: Frequently Asked Questions (FAQ)
How does the AIRERA 110kW model handle energy efficiency during fluctuating air demand?
This model features an intelligent unloading system and a high-sensitivity intake valve. When air demand decreases, the system quickly adjusts the intake to reduce power consumption. Furthermore, the high-precision AIRERA air end ensures maximum free air delivery (FAD) per kilowatt, reducing the overall Total Cost of Ownership (TCO).
Are the consumables and spare parts for AIRERA compressors globally accessible?
Yes. AIRERA designs its 110kW series using standardized, high-quality components. Our oil filters, air filters, and oil separators are built to international specifications, ensuring that clients can easily source genuine or compatible high-performance parts for routine maintenance anywhere in the world.
What safety protections are built into the 110kW oil-injected system?

The unit includes multi-stage safety protocols: high-temperature automatic shutdown, high-pressure relief valves, motor overload protection, and phase-reversal protection. These AIRERA safety features ensure the machine stops instantly in case of an anomaly, protecting both your staff and your investment.
