50HP VSD Direct-driven Air Cooling Oil-free Rotary Screw Compressor
50HP VSD Direct-driven Air Cooling Oil-free Rotary Screw Compressor
50HP VSD Direct-driven Air Cooling Oil-free Rotary Screw Compressor
50HP VSD Direct-driven Air Cooling Oil-free Rotary Screw Compressor
50HP VSD Direct-driven Air Cooling Oil-free Rotary Screw Compressor
50HP VSD Direct-driven Air Cooling Oil-free Rotary Screw Compressor
Specifications
Brand Name :
AIRERA
Model Number :
OWFD-37D A/B/CVP
Certification :
ISO、CE、TUV
Place of Origin :
made in China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
TT/LC,Western Union,D/P,D/A
Supply Ability :
2,000-3,000 per month
Delivery Time :
5-15 days
Packaging Details :
wooden case
Cooling air flow（m3/hr） :
9200
Application :
Medical Equipments,bus,medical dental,General Industry,For airbrush and mini spray gun
Working Pressure :
0.7-1.0MPa
Cooling type :
Air cooling
Driven type :
Direct driven
Lubrication style :
Oil-free
Motor power :
37KW
Description
AIRERA 50HP VSD Series: Engineering Excellence in Pure Air Technology

The AIRERA 50HP (37kW) VSD Direct-Driven Oil-Free Rotary Screw Compressor is a high-performance solution designed for large-scale industrial environments where air purity and energy efficiency are paramount. By integrating advanced Variable Speed Drive (VSD) technology with a Direct-Drive mechanism, this system intelligently adjusts its output to match your real-time demand, eliminating idle energy waste and slashing power costs.

Its Oil-Free Rotary Screw design guarantees ISO Class 0 certified air, ensuring zero risk of contamination for sensitive processes. Supported by a heavy-duty Air Cooling system, the AIRERA 50HP model provides consistent thermal management and exceptional reliability for 24/7 operations in the healthcare sector, food processing, and high-precision manufacturing.

Advantages of OGFD Air Screw Compressor:

  • Constant Voltage and Power Saving
The pressure comparison shown in the figure is in the operation of standard air compressor and the VFD air compressor. In standard air compressor, the loading and unloading is frequently changed between the sufficient pressure and pressure more than 1.5bar, which costs 10.5% of power consumption(more 7% of power is consumed when each 1bar is increased )compare with the inverter control. In addition, 45% of idle power energy is consumed in standby status of zero air supply in the unloading. Therefore, air supply inconstant pressure is not only very low power consumption, but also avoids the reduction of service life of the unit caused by the control of loading and unloading and the adverse factors of unstable pressure brought to the production of the enterprise.

50HP VSD Direct-driven Air Cooling Oil-free Rotary Screw Compressor

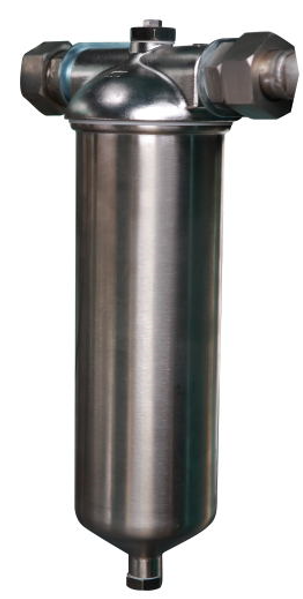

  • Water filter

The housing is made of stainless steel, offering high filtration precision and a long service life, ensuring the system remains clean and free of impurities.


50HP VSD Direct-driven Air Cooling Oil-free Rotary Screw Compressor

  • Patented High-Efficiency Compressor Block

The compressor block is constructed from 304L stainless steel,featuring a world-class sealing system that integrates mechanical seals,an air curtain chamber, labyrinth seals, and a bypass channel into a single unit.

50HP VSD Direct-driven Air Cooling Oil-free Rotary Screw Compressor


Technical Specifications - 37KW Air Cooling Compressor
37KW Air Cooling Compressor Parameters
ITEM UNIT MODEL OWFD-37D A/B/CVP
Free air delivery m³/min 3.6-6.1|3.3-5.6|3.0-5.0
Max. working pressure MPa 0.7-1.0
Compressor type
Oil-free screw compressor
Cooling type
Air cooling
Driven type
Direct driven
Inlet status - Temperature ℃ 2-40
Inlet status - Pressure MPa Atmospheric pressure
Inlet status - Relative humidity
≤90%
Noise Level dB(A) ≤64
Drive rotor speed rpm 3000
Compressed air outlet temperature ℃ Ambient temperature＋20
Cooling air flow m³/hr 9200
Control mode
Intelligent controller
Safety valve set pressure MPa 0.77 ~ 1.43
Lubricating water volume L 40
Compressed air outlet connection
G1-1/2
Dimension - L mm 1920
Dimension - W mm 1170
Dimension - H mm 1320
Net Weight kg 1250
Motor - Model
TYCP180M1-8
Motor - Speed rpm 3000
Motor - Rated Power KW 37
Motor - Service factor
1.2
Motor - Protection type
IP55
Motor - Efficiency
IE5
Motor - Startup mode
Frequency conversion starting
Motor - Voltage V 400(Special on request)
Motor - Frequency Hz 50-200(Special on request)
Motor - Rated current A 64
Motor - Weight of motor kg 155
50HP VSD Direct-driven Air Cooling Oil-free Rotary Screw Compressor
AIRERA 37kW Screw Air Compressor: Frequently Asked Questions (FAQ)
Will the addition of an inverter make the system more prone to failure?
Not at all. AIRERA utilizes high-performance industrial inverters with self-protection features against overvoltage and overheating. By enabling a "Soft Start," the starting current rises smoothly, avoiding electrical and mechanical shocks to the grid and components, which actually extends equipment life.
How does AIRERA ensure the durability of the rotors without oil lubrication?
Our rotors feature a special aerospace-grade coating and precision clearance design. This prevents metal-to-metal contact and corrosion, ensuring the screw hosts maintain high efficiency and a long service life even without oil.
What about the noise level of a 50HP direct-driven unit?

Thanks to the direct-drive precision and our fully enclosed sound-dampening cabinet, the noise level is significantly lower than gear-driven competitors. It creates a much more comfortable and safer working environment for your staff.
