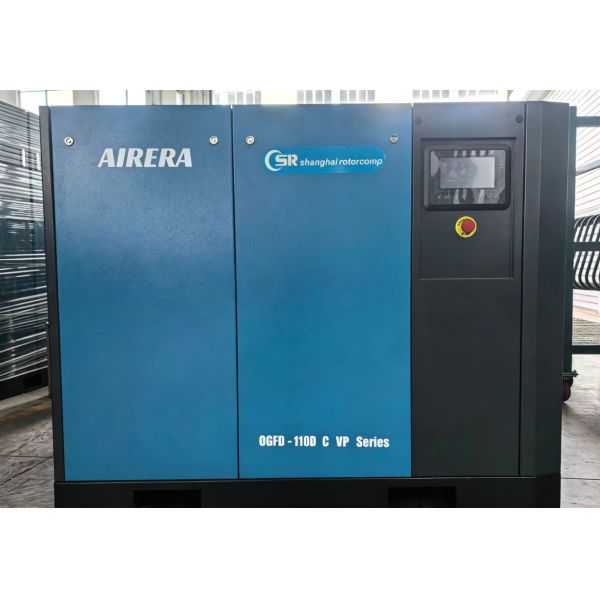

110KW VSD Direct-driven Water Cooling Oil-free Rotary Screw Compressor
110KW VSD Direct-driven Water Cooling Oil-free Rotary Screw Compressor
110KW VSD Direct-driven Water Cooling Oil-free Rotary Screw Compressor
110KW VSD Direct-driven Water Cooling Oil-free Rotary Screw Compressor
110KW VSD Direct-driven Water Cooling Oil-free Rotary Screw Compressor
110KW VSD Direct-driven Water Cooling Oil-free Rotary Screw Compressor
Specifications
Brand Name :
AIRERA
Model Number :
OWFD-110D A/B/CVP
Certification :
ISO、CE、TUV
Place of Origin :
made in China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
TT/LC,Western Union,D/P,D/A
Supply Ability :
2,000-3,000 per month
Delivery Time :
5-15 days
Packaging Details :
wooden case
Cooling water flow（L/min） :
270
Application :
Medical Equipments,bus,medical dental,General Industry,For airbrush and mini spray gun
Working Pressure :
0.7-1.0MPa
Cooling type :
Water cooling
Driven type :
Direct driven
Lubrication style :
Oil-free
Motor power :
110KW
Description
AIRERA 110kW Oil-Free VSD Compressor: High-Flow Pure Power & Industrial-Grade Efficiency

AIRERA 110kW VSD Direct-driven Water Cooling Oil-free Screw Compressor is the ultimate performance solution for large-scale precision manufacturing. Certified to ISO Class 0 Oil-free standards, it delivers 100% pure compressed air, eliminating contamination risks in pharmaceutical and electronics sectors. Driven by advanced VSD Direct-driven technology, it bypasses transmission energy loss and adjusts speed precisely to demand, achieving over 35% energy savings. Enhanced by a reinforced water cooling system, it handles 24/7 heavy-duty cycles with unwavering pressure stability. Built on E-E-A-T industrial standards and smart IoT, AIRERA empowers you to secure production safety while drastically reducing Total Cost of Ownership (TCO).

Advantages of OGFD Air Screw Compressor:

  • Constant Voltage and Power Saving
The pressure comparison shown in the figure is in the operation of standard air compressor and the VFD air compressor. In standard air compressor, the loading and unloading is frequently changed between the sufficient pressure and pressure more than 1.5bar, which costs 10.5% of power consumption(more 7% of power is consumed when each 1bar is increased )compare with the inverter control. In addition, 45% of idle power energy is consumed in standby status of zero air supply in the unloading. Therefore, air supply inconstant pressure is not only very low power consumption, but also avoids the reduction of service life of the unit caused by the control of loading and unloading and the adverse factors of unstable pressure brought to the production of the enterprise.

110KW VSD Direct-driven Water Cooling Oil-free Rotary Screw Compressor

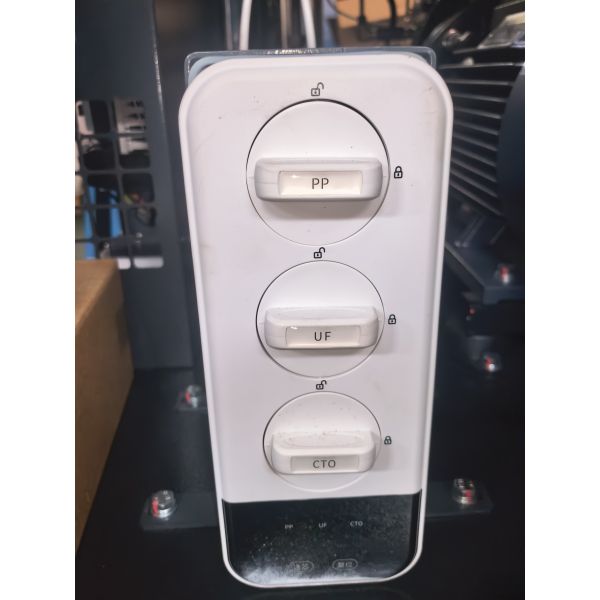

  • Water filter

The housing is made of stainless steel, offering high filtration precision and a long service life, ensuring the system remains clean and free of impurities.


110KW VSD Direct-driven Water Cooling Oil-free Rotary Screw Compressor

  • Imported softeners

Used to remove scale from cooling water and effectively prevent the precipitation of impurities, ensuring unobstructed compressor piping. It has a maximum service life of 3 years.

110KW VSD Direct-driven Water Cooling Oil-free Rotary Screw Compressor


Technical Specifications - 110KW Air Cooling Compressor
110KW Air Cooling Compressor Parameters
ITEM UNIT MODEL OGWD -110D A/B/CVP
Free air delivery m³/min 12.0-20.0|10.8-18.0|9.6-16.0
Max. working pressure MPa 0.7-1.0
Compressor type
Oil-free screw compressor
Cooling type
Wate cooling
Driven type
Direct driven
Inlet status - Temperature ℃ 2-40
Inlet status - Pressure MPa Atmospheric pressure
Inlet status - Relative humidity
≤90%
Noise Level dB(A) ≤74
Drive rotor speed rpm 3000
Compressed air outlet temperature ℃ Ambient temperature＋15
Cooling water flow L/min 270
Control mode
Intelligent controller
Safety valve set pressure MPa 0.77 ~ 1.10
Lubricating water volume L 200
Compressed air outlet connection
DN80
Dimension - L mm 2350
Dimension - W mm 1600
Dimension - H mm 1680
Net Weight kg 3100

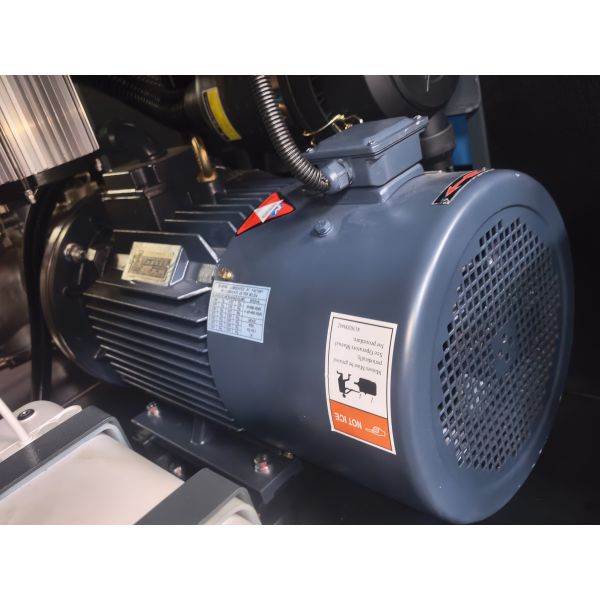

Motor - Model
TYCP250M1-8
Motor - Speed rpm 3000
Motor - Rated Power KW 110
Motor - Service factor
1.2
Motor - Protection type
IP55
Motor - Efficiency
IE5
Motor - Startup mode
Frequency conversion starting
Motor - Voltage V 400(Special on request)
Motor - Frequency Hz 50-200(Special on request)
Motor - Rated current A 185
Motor - Weight of motor kg 370
110KW VSD Direct-driven Water Cooling Oil-free Rotary Screw Compressor
AIRERA 110kW Screw Air Compressor: Frequently Asked Questions (FAQ)
Will the VSD compressor overheat when running at low frequencies (low air demand)?
We have optimized the cooling system for all operating conditions. The air-cooling system of the AIRERA 7.5kW VP series provides high-efficiency heat exchange, ensuring the air end and electrical components remain at ideal temperatures even at low motor speeds.
How does the water-cooling system prevent scaling and clogging during long-term use?
We recommend installing water treatment units or using closed cooling towers. The AIRERA 110kW comes standard with an intelligent water-flow monitoring alarm system and features large-diameter, easy-to-clean cooler piping, significantly reducing the risk of heat exchange efficiency drops due to scaling.
What specific safeguards does the 110kW oil-free technology provide for the medical or food industries?

AIRERA uses stainless steel rotors and specialized heat-resistant coatings, with absolutely no lubricant in the compression chamber. This eliminates oil vapor at the source, ensuring end-product safety and satisfying the strictest compliance audits in medical and food processing.
