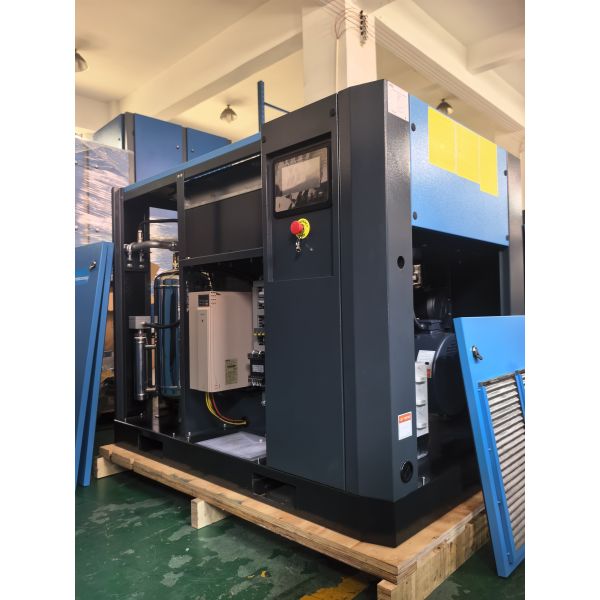

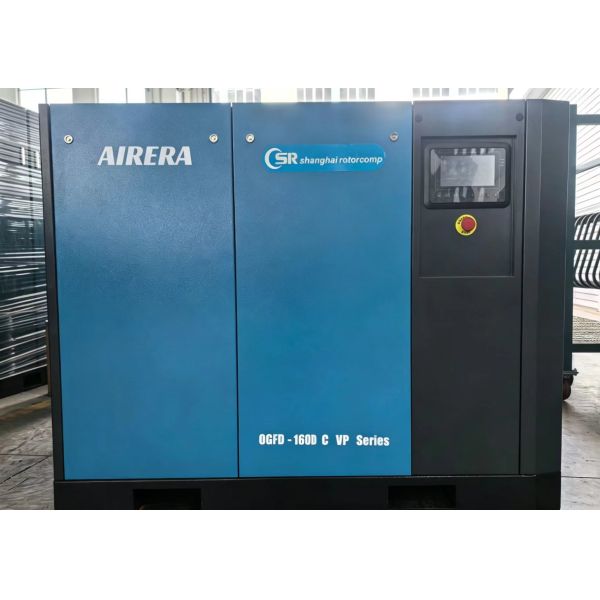

160KW VSD Direct-driven Water Cooling Oil-free Rotary Screw Compressor
160KW VSD Direct-driven Water Cooling Oil-free Rotary Screw Compressor
160KW VSD Direct-driven Water Cooling Oil-free Rotary Screw Compressor
160KW VSD Direct-driven Water Cooling Oil-free Rotary Screw Compressor
160KW VSD Direct-driven Water Cooling Oil-free Rotary Screw Compressor
160KW VSD Direct-driven Water Cooling Oil-free Rotary Screw Compressor
Specifications
Brand Name :
AIRERA
Model Number :
OGFD-160
Certification :
ISO、CE、TUV
Place of Origin :
made in China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
TT/LC,Western Union,D/P,D/A
Supply Ability :
2,000-3,000 per month
Delivery Time :
5-15 days
Packaging Details :
wooden case
Cooling water flow（L/min） :
400
Application :
Medical Equipments,bus,medical dental,General Industry,For airbrush and mini spray gun
Working Pressure :
0.7-1.0MPa
Cooling type :
Water cooling
Driven type :
Direct driven
Lubrication style :
Oil-free
Motor power :
160KW
Description
160kW VSD Direct-driven Water Cooling Oil-free Rotary Screw Compressor | AIRERA High-Performance Industrial Air Solutions

The AIRERA 160kW VSD direct-driven water-cooled oil-free rotary screw compressor stands as a benchmark for heavy-duty industrial excellence, providing 100% pure, oil-free air essential for critical applications in the medical, healthcare, and high-end electronics sectors. Featuring a precision-engineered direct-drive mechanism and advanced variable speed drive technology, this system optimizes energy consumption by matching output exactly to demand, while the integrated water-cooling architecture maintains peak thermal efficiency during continuous high-load operations. Designed with AIRERA’s commitment to technical authority and long-term durability, this compressor minimizes mechanical wear and operational noise, offering a robust, eco-friendly power source that empowers large-scale manufacturing facilities to achieve superior productivity with reduced maintenance overhead.

Advantages of OGFD Air Screw Compressor:

  • Constant Voltage and Power Saving
The pressure comparison shown in the figure is in the operation of standard air compressor and the VFD air compressor. In standard air compressor, the loading and unloading is frequently changed between the sufficient pressure and pressure more than 1.5bar, which costs 10.5% of power consumption(more 7% of power is consumed when each 1bar is increased )compare with the inverter control. In addition, 45% of idle power energy is consumed in standby status of zero air supply in the unloading. Therefore, air supply inconstant pressure is not only very low power consumption, but also avoids the reduction of service life of the unit caused by the control of loading and unloading and the adverse factors of unstable pressure brought to the production of the enterprise.

160KW VSD Direct-driven Water Cooling Oil-free Rotary Screw Compressor

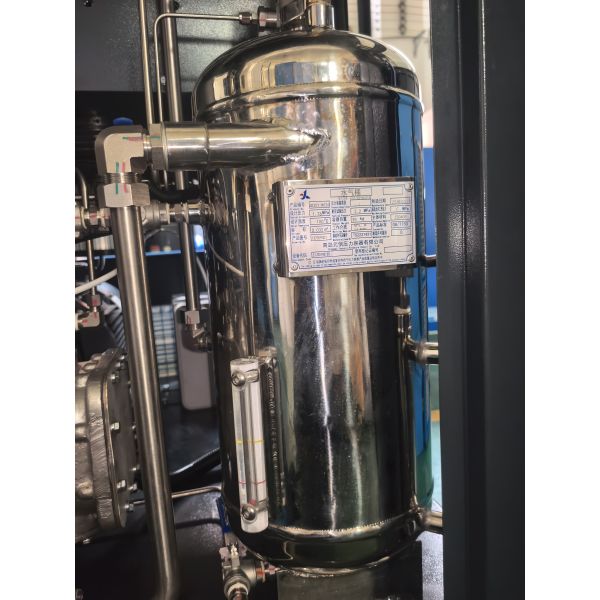

  • Water filter

The housing is made of stainless steel, offering high filtration precision and a long service life, ensuring the system remains clean and free of impurities.


160KW VSD Direct-driven Water Cooling Oil-free Rotary Screw Compressor

  • Patented High-Efficiency Compressor Block

The compressor block is constructed from 304L stainless steel,featuring a world-class sealing system that integrates mechanical seals,an air curtain chamber, labyrinth seals, and a bypass channel into a single unit.

160KW VSD Direct-driven Water Cooling Oil-free Rotary Screw Compressor


Technical Specifications - 160KW Air Cooling Compressor
160KW Air Cooling Compressor Parameters
ITEM UNIT MODEL OGFD-160D/A/B/C VP
Free air delivery m³/min 16.2-27.0|15.3-25.5|14.4-24.0
Max. working pressure MPa 0.7-1.0
Compressor type
Oil-free screw compressor
Cooling type
Wate cooling
Driven type
Direct driven
Inlet status - Temperature ℃ 2-40
Inlet status - Pressure MPa Atmospheric pressure
Inlet status - Relative humidity
≤90%
Noise Level dB(A) ≤74
Drive rotor speed rpm 3000
Compressed air outlet temperature ℃ Ambient temperature＋15
Cooling water flow m3/min 400
Control mode
Intelligent controller
Safety valve set pressure MPa 0.77 ~ 1.10
Lubricating water volume L 280
Compressed air outlet connection
DN80
Dimension - L mm 2680
Dimension - W mm 1600
Dimension - H mm 1860
Net Weight kg 4200
Motor - Model
TYCP280S1-8
Motor - Speed rpm 3000
Motor - Rated Power KW 160
Motor - Service factor
1.2
Motor - Protection type
IP55
Motor - Efficiency
IE5
Motor - Startup mode
Frequency conversion starting
Motor - Voltage V 400(Special on request)
Motor - Frequency Hz 50-200(Special on request)
Motor - Rated current A 270
Motor - Weight of motor kg 551
160KW VSD Direct-driven Water Cooling Oil-free Rotary Screw Compressor
AIRERA 160kW Screw Air Compressor: Frequently Asked Questions (FAQ)
What is the long-term Return on Investment (ROI) of a VSD unit compared to a fixed-speed model?
Although the initial purchase cost of a VSD machine is slightly higher, the energy savings and lower maintenance frequency typically allow you to recoup the price difference within 12 to 18 months.
What is the lifespan of the AIRERA oil-free screw air-end?
Our air-ends feature special high-temperature resistant and anti-corrosive coatings. Combined with the low-friction direct-drive design and precision water cooling, the AIRERA air-end is built for a 24/7 heavy-duty lifespan, typically exceeding 10 years with proper scheduled maintenance.
What safety protections are built into the 160kW model?

The unit is equipped with a comprehensive sensor array for real-time monitoring of discharge temperature, water pressure, and motor load. It features automatic emergency shutdown for over-temperature or pressure anomalies, ensuring the safety of both the equipment and your personnel.
