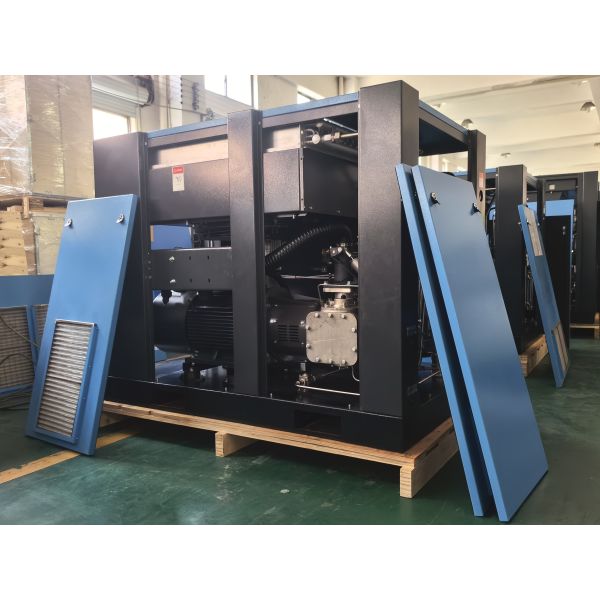

18.5KW VSD Direct-driven Air Cooling Oil-free Industrial Air Compressor
18.5KW VSD Direct-driven Air Cooling Oil-free Industrial Air Compressor
18.5KW VSD Direct-driven Air Cooling Oil-free Industrial Air Compressor
18.5KW VSD Direct-driven Air Cooling Oil-free Industrial Air Compressor
18.5KW VSD Direct-driven Air Cooling Oil-free Industrial Air Compressor
18.5KW VSD Direct-driven Air Cooling Oil-free Industrial Air Compressor
Specifications
Brand Name :
AIRERA
Model Number :
OWFD-18.5D A/B/CVP
Certification :
ISO、CE、TUV
Place of Origin :
made in China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
TT/LC,Western Union,D/P,D/A
Supply Ability :
2,000-3,000 per month
Delivery Time :
5-15 days
Packaging Details :
wooden case
Cooling air flow（m3/hr） :
6500
Application :
Medical Equipments,bus,medical dental,General Industry,For airbrush and mini spray gun
Working Pressure :
0.7-1.0MPa
Cooling type :
Air cooling
Driven type :
Direct driven
Lubrication style :
Oil-free
Motor power :
18.5KW
Description
AIRERA 18.5kW VSD Series: Precision, Purity, and Performance

Elevate your industrial capabilities with the AIRERA 18.5kW VSD Direct-Driven Oil-Free Air Compressor. This powerhouse is the ideal solution for large-scale operations requiring 100% sterile, oil-free air. By integrating Variable Speed Drive (VSD) technology, the system intelligently adapts to your fluctuating air demand, eliminating idle energy waste and reducing electricity costs by up to 35%.

The Direct-Driven architecture ensures maximum torque transfer without the energy loss or maintenance hassles of belts. Coupled with a high-capacity Air Cooling system, it maintains peak efficiency and thermal stability even during 24/7 continuous operation. AIRERA delivers the reliability and ISO Class 0 air quality essential for food processing and precision manufacturing.

Advantages of OGFD Air Screw Compressor:

  • Constant Voltage and Power Saving
The pressure comparison shown in the figure is in the operation of standard air compressor and the VFD air compressor. In standard air compressor, the loading and unloading is frequently changed between the sufficient pressure and pressure more than 1.5bar, which costs 10.5% of power consumption(more 7% of power is consumed when each 1bar is increased )compare with the inverter control. In addition, 45% of idle power energy is consumed in standby status of zero air supply in the unloading. Therefore, air supply inconstant pressure is not only very low power consumption, but also avoids the reduction of service life of the unit caused by the control of loading and unloading and the adverse factors of unstable pressure brought to the production of the enterprise.

18.5KW VSD Direct-driven Air Cooling Oil-free Industrial Air Compressor
  • Patented High-Efficiency Compressor Block

The compressor block is constructed from 304L stainless steel,featuring a world-class sealing system that integrates mechanical seals,an air curtain chamber, labyrinth seals, and a bypass channel into a single unit.


18.5KW VSD Direct-driven Air Cooling Oil-free Industrial Air Compressor

  • Water Cooler

The plates are made of special 304L stainless steel, offering corrosion resistance and high heat transfer efficiency. This reduces pressure and temperature differentials, ensuring the system operates under near-isothermal compression. The system features a compact design, requires less cooling water, minimizes pressure loss, enhances durability, and is easy to clean and maintain.

18.5KW VSD Direct-driven Air Cooling Oil-free Industrial Air Compressor


Technical Specifications - 18.5KW Air Cooling Compressor
18.5KW Air Cooling Compressor Parameters
ITEM UNIT MODEL OWFD-18.5D A/B/CVP
Free air delivery m³/min 1.80-3.10|1.60-2.80|1.50-2.50
Max. working pressure MPa 0.7-1.0
Compressor type
Oil inject screw compressor
Cooling type
Air cooling
Driven type
Direct driven
Inlet status - Temperature ℃ 2-40
Inlet status - Pressure MPa Atmospheric pressure
Inlet status - Relative humidity
≤90%
Noise Level dB(A) ≤61
Drive rotor speed rpm 3000
Compressed air outlet temperature ℃ Ambient temperature＋20
Cooling air flow m³/hr 6500
Control mode
Intelligent controller
Safety valve set pressure MPa 0.77 ~ 1.10
Lubricating water volume L 27
Compressed air outlet connection
G1
Dimension - L mm 1400
Dimension - W mm 1000
Dimension - H mm 1200
Net Weight kg 700
Motor - Model
TCYP-132M-8
Motor - Speed rpm 3000
Motor - Rated Power KW 18.5
Motor - Service factor
1.2
Motor - Protection type
IP55
Motor - Efficiency
IE5
Motor - Startup mode
Frequency conversion starting
Motor - Voltage V 400(Special on request)
Motor - Frequency Hz 50-200(Special on request)
Motor - Rated current A 32.5
Motor - Weight of motor kg 85
18.5KW VSD Direct-driven Air Cooling Oil-free Industrial Air Compressor
AIRERA 18.5kW Screw Air Compressor: Frequently Asked Questions (FAQ)
What is the long-term Return on Investment (ROI) of a VSD unit compared to a fixed-speed model?
Although the initial purchase cost of a VSD machine is slightly higher, the energy savings and lower maintenance frequency typically allow you to recoup the price difference within 12 to 18 months.
What is the maintenance frequency for this model?
Extremely low. With no lubrication system, there’s no need for oil or oil filter changes. Maintenance is limited to replacing the air intake filter every 2,000–3,000 hours and periodically cleaning the cooler. This "low-maintenance" nature significantly cuts labor costs on industrial sites.
How does the direct-drive structure help extend the machine's lifespan?

Direct-drive achieves perfect coaxial alignment between the motor and air end, eliminating radial forces on bearings caused by belt tension. This significantly reduces the load on air-end bearings, extending the machine's mechanical lifespan by over 30% compared to belt-driven models while maintaining minimal vibration.
