110KW Direct-driven Water Cooling Oil-free Rotary Screw Compressor
110KW Direct-driven Water Cooling Oil-free Rotary Screw Compressor
110KW Direct-driven Water Cooling Oil-free Rotary Screw Compressor
110KW Direct-driven Water Cooling Oil-free Rotary Screw Compressor
110KW Direct-driven Water Cooling Oil-free Rotary Screw Compressor
110KW Direct-driven Water Cooling Oil-free Rotary Screw Compressor
Specifications
Brand Name :
AIRERA
Model Number :
OGFD-90
Certification :
ISO、CE、TUV
Place of Origin :
made in China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
TT/LC,Western Union,D/P,D/A
Supply Ability :
2,000-3,000 per month
Delivery Time :
5-15 days
Packaging Details :
wooden case
Cooling water flow（L/min） :
250
Application :
Medical Equipments,bus,medical dental,General Industry,For airbrush and mini spray gun
Working Pressure :
0.7-1.0MPa
Cooling type :
Water cooling
Driven type :
Direct driven
Lubrication style :
Oil-free
Motor power :
90KW
Description
AIRERA 110kW Direct-Driven Oil-Free Water-Cooled Compressor: Industrial-Grade Power for Absolute Air Purity

AIRERA 110kW series stands as an energy-efficiency benchmark for large-scale production lines. Utilizing 1:1 Direct-Drive technology, it achieves high-efficiency power transmission, eliminating traditional drive losses. The core 100% Oil-Free compression ensures air quality meets ISO Class 0 standards, serving as a safety shield for the medical, high-end food, and precision electronics industries. Integrated with an advanced water-cooling architecture, it maintains superior thermal performance and quiet operation during continuous high-volume discharge. Choosing AIRERA 110kW means choosing a stable, clean, and highly cost-effective power heart.

Advantages of OGFD Air Screw Compressor:

  • Air filter
Features a pre-filter with a pleated filter element, offering low pressure drop, durability, and the ability to remove 99.99% of airborne contaminants.
110KW Direct-driven Water Cooling Oil-free Rotary Screw Compressor
  • Water filter

The housing is made of stainless steel, offering high filtration precision and a long service life, ensuring the system remains clean and free of impurities.


110KW Direct-driven Water Cooling Oil-free Rotary Screw Compressor

  • Imported softeners

Used to remove scale from cooling water and effectively prevent the precipitation of impurities, ensuring unobstructed compressor piping. It has a maximum service life of 3 years.

110KW Direct-driven Water Cooling Oil-free Rotary Screw Compressor


Technical Specifications - 110KW Air Cooling Compressor
110KW Air Cooling Compressor Parameters
ITEM UNIT MODEL OGFD-110
Free air delivery m³/min 20.0-16.0
Max. working pressure MPa 0.7-1.0
Compressor type
Oil-free screw compressor
Cooling type
Wate cooling
Driven type
Direct driven
Inlet status - Temperature ℃ ≤45
Inlet status - Pressure MPa Atmospheric pressure
Inlet status - Relative humidity
≤90%
Noise Level dB(A) ≤74
Drive rotor speed rpm 2990
Compressed air outlet temperature ℃ Ambient temperature＋15
Compressed Inlet temp. ℃ 2-40
Cooling water flow m3/min 270
Control mode
Intelligent controller
Safety valve set pressure MPa 0.77 ~ 1.10
Lubricating water volume L 200
Compressed air outlet connection
DN80
Dimension - L mm 2350
Dimension - W mm 1600
Dimension - H mm 1680
Net Weight kg 3100

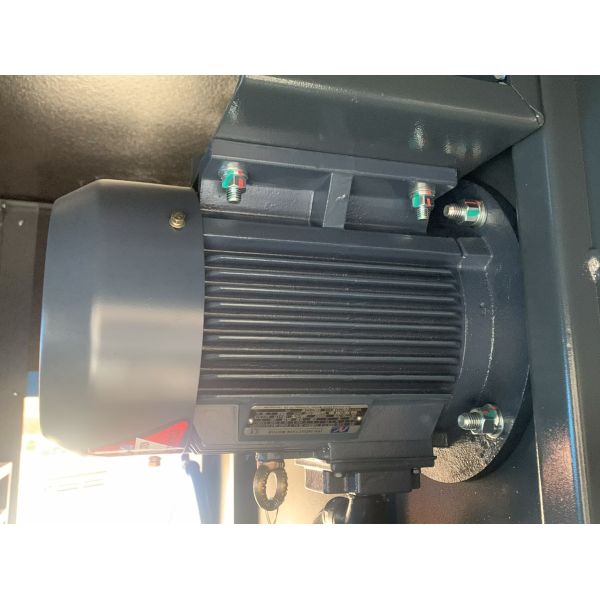

Motor - Model
Y2280M2-2
Motor - Speed rpm 2990
Motor - Rated Power KW 110
Motor - Service factor
1.2
Motor - Protection type
IP55
Motor - Efficiency
IE3
Motor - Startup mode
ʏ-Δ starting
Motor - Voltage V 380
Motor - Frequency Hz 50
Motor - Rated current A 203
Motor - Weight of motor kg 922
110KW Direct-driven Water Cooling Oil-free Rotary Screw Compressor
AIRERA 110kW Screw Air Compressor: Frequently Asked Questions (FAQ)
How does the 110kW direct-driven system help reduce operational costs?
At the 110kW power level, transmission losses are significantly amplified. AIRERA’s direct-drive technology achieves 100% transmission efficiency, saving thousands of kWh in electricity annually compared to belt or gear drives. Additionally, it minimizes wear-part replacements, reducing the time-cost of maintenance downtime.
How does the water-cooling system prevent scaling and clogging during long-term use?
We recommend installing water treatment units or using closed cooling towers. The AIRERA 110kW comes standard with an intelligent water-flow monitoring alarm system and features large-diameter, easy-to-clean cooler piping, significantly reducing the risk of heat exchange efficiency drops due to scaling.
What specific safeguards does the 110kW oil-free technology provide for the medical or food industries?

AIRERA uses stainless steel rotors and specialized heat-resistant coatings, with absolutely no lubricant in the compression chamber. This eliminates oil vapor at the source, ensuring end-product safety and satisfying the strictest compliance audits in medical and food processing.
