Adis16488 MEMS Inertial Measurement Unit IMU for Motion Tracking
Adis16488 MEMS Inertial Measurement Unit IMU for Motion Tracking
Adis16488 MEMS Inertial Measurement Unit IMU for Motion Tracking
Adis16488 MEMS Inertial Measurement Unit IMU for Motion Tracking
Adis16488 MEMS Inertial Measurement Unit IMU for Motion Tracking
Adis16488 MEMS Inertial Measurement Unit IMU for Motion Tracking
Adis16488 MEMS Inertial Measurement Unit IMU for Motion Tracking
Adis16488 MEMS Inertial Measurement Unit IMU for Motion Tracking
Adis16488 MEMS Inertial Measurement Unit IMU for Motion Tracking
Adis16488 MEMS Inertial Measurement Unit IMU for Motion Tracking
Specifications
Brand Name :
Firepower
Model Number :
16488HA
Place of Origin :
CHINA
MOQ :
1
Price :
1000$
Payment Terms :
T/T
Supply Ability :
1000/month
Delivery Time :
1 week
Packaging Details :
carton with sponge
Gyroscope range :
±450º/s
Zero-bias instability :
0.3º/h
Zero bias stability :
3º/h
Random walk :
0.029m/s/√h
Communication Interface :
1-way SPI
Accelerometer range :
±20 g
Acc Zero bias stability :
0.07 mg
Description

Product Description

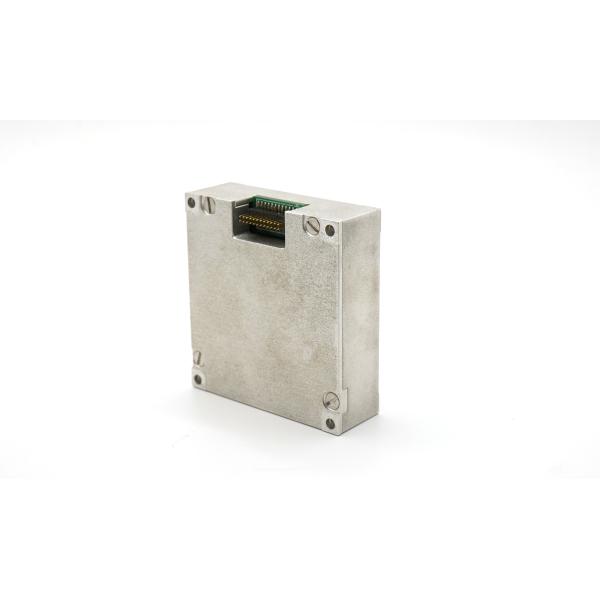

16488HA inertial measurement unit is a complete inertial system with a built-in three-axis gyroscope and a three-axis accelerometer, which is used to measure the three-axis angular rate, acceleration and other parameters of the carrier, and output the data after error compensation (including temperature compensation, installation misalignment angle compensation, nonlinear compensation, etc.) through SPI according to the communication protocol.

Technical Parameters

Parameter

Test conditions

Minimum value

Typical value

Maximum value

Unit

Gyroscope

Dynamic measuring range

±450

º/s

Zero-bias instability

Allan variance, better than

0.3

º/h

Zero bias stability

10s smooth, RMS, better than

3

º/h

Zero bias in full temperature range

-40 ℃ ~ 85 ℃, 10 s smooth,

rms

20

º/h

Random walk

1σ

0.15

º/√h

Zero-bias repeatability

1σ

5

º/h

Scale factor repeatability

1σ

100

ppm

Scale factor nonlinearity

1σ

100

ppm

Bandwidth (-3dB)

250

Hz

Cross coupling

0.1

%

Resolution

2

º/h

Acceleration sensitivity

2

°/h/g

Accelerometer

Dynamic measuring range

±20

g

Zero bias stability

Allan variance

0.07

mg

Zero bias in full temperature range

-40 ℃ ~ 85 ℃, 10 s smooth,

rms

3

mg

Zero bias stability

10s smooth, RMS, better than

0.25

mg

Random walk

1σ

0.029

m/s/√h

Zero-bias repeatability

1σ

0.5

mg

Scale factor repeatability

1σ

500

ppm

Scale factor nonlinearity

FS=20g

500

ppm

Bandwidth (-3dB)

250

Hz

Cross coupling

0.1

%

Communication

Interface

1-way SPI

Enter the clock frequency

8

15

MHz

Electrical characteristics

Voltage

Direct current

3.3

V

Power consumption

1.5

1.5

W

Ripple

P-P

48±2

100

mV

Use environment

Operating temperature

-45

85

℃

Storage temperature

-55

85

℃

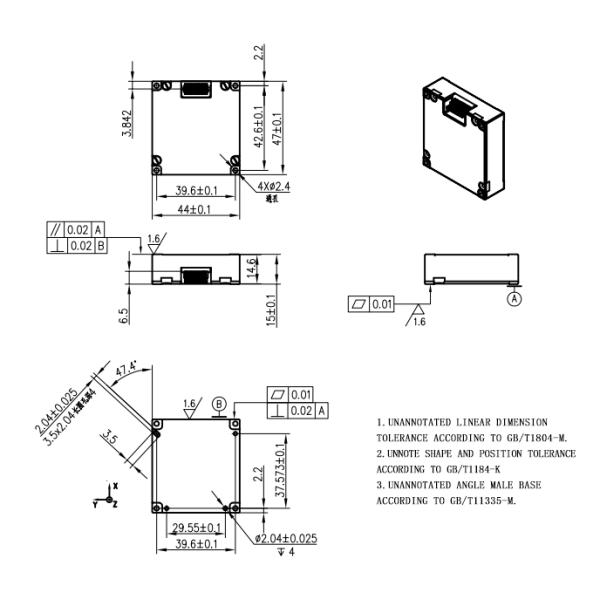

Outline Drawing
