Specifications
Model Number :
16488
MOQ :
1
Payment Terms :
T/T
Supply Ability :
500/month
Packaging Details :
sponge/box
Brand Name :
Firepower
Certification :
CE ROHS
Place of Origin :
CHINA
Product name :
inertial gyro accelerometer
gyro range :
±500º/s
gyro bias instability :
<2º/h
bias in full temperature range :
<5º/h
Scale factor is nonlinear :
<500ppm
Accelerometer bias :
1mg
Bias repeatability :
0.5mg
Random walk :
0.029 m/s/√h
Description

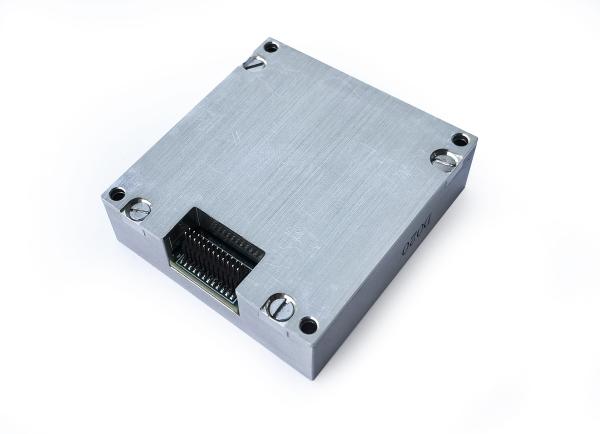

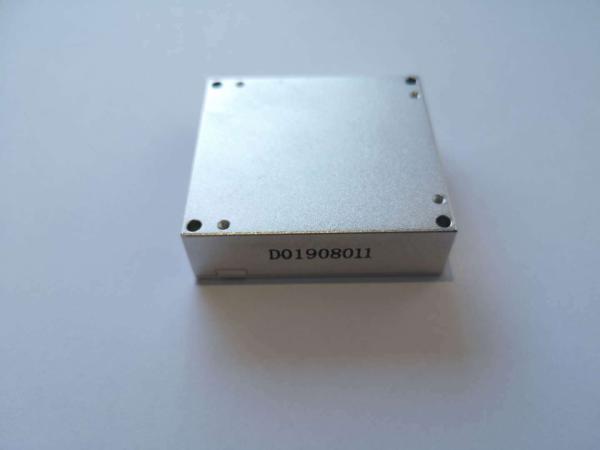

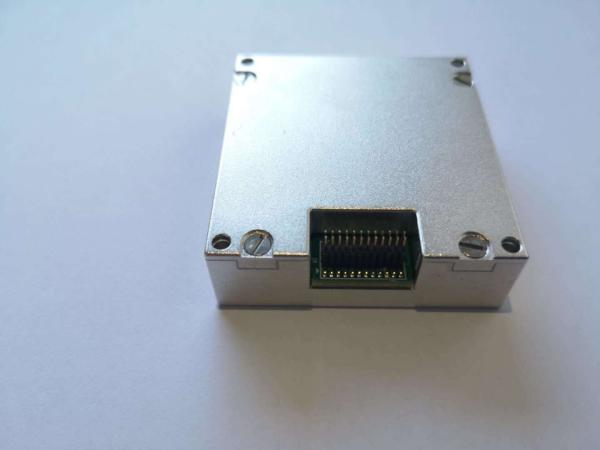

IMU 6 Axis Sensor Inertial Measure Unit price

16488-C is a domestic MEMS IMU used to replace ADIS16488. The product precision is better than ADIS16488. The version is optional, the size and appearance are exactly the same, and the communication protocol is the same.The version is optional, the size and appearance are exactly the same, and the communication protocol is the same. It is more convenient for users to change, providing users with professional product customization services.
6 Axis IMU Accelerometer Gyro Inertial Measure Unit Low Cost

Parameter Conditions 16488-C ADIS16488 unit
Gyro Dynamic measuring range configurable ±450 ±480 º/s
Bias instability Allan 3.5 5.1 º/h
bias stability 1s,rms 30 / º/h
bias in full temperature range -40℃~85℃,10s,rms 0.02 / º/s
Random walk 0.25 0.26 º/√h
bias repeatability 35 / º/h
output noise No filtering,rms 0.09 0.135 º/s
Scale factor repeatability 0.02 1.0 %
Scale factor Temperature coefficient -40℃~85℃, 1б 5 ±35 ppm/°C
The scale factor is nonlinear FS=450º/s 0.008 0.01 %FS
bandwidth(-3dB)
330 330 Hz
Accelerometer Dynamic measuring range Configurable (Max ±40) ±20 ±18 g
bias stability Allan error 0.005 / mg
bias in full temperature range -40℃~85℃,10s,rms 0.5 16 mg
Random walk 0.01 0.029 m/s/√h
Bias instability 0.16 / mg
output noise No filterin,rms 1 / mg
Scale factor repeatability 0.01 0.5 %
scale factor is nonlinear FS=10g 0.002 0.1 %FS
bandwidth(-3dB)
330 330 Hz
Cross coupling
0.18 / %
Magnetometer Dynamic measuring range
±2.5 ±2.5 gauss
The sensitivity
0.1 0.1 mgauss/LSB
nonlinearity
0.5 0.5 %FS
Barometer Pressure range
1100 1100 mbar
sensitivity
6.1 × 10-7 6.1 × 10-7 mbar/LSB
Total error
4.5 4.5 mbar
The relative error
2.5 2.5 mbar
nonlinearity
0.1 0.1 %FS
Communication interface 1 way SPI Input clock frequency 15 15 MHz
1 way UART Baudrate 230.4 / kbps
1 way CAN

/ kbps
Electrical characteristics voltage dc 3.3(or5)±10%
V
Power consumption
0.6 1 W
ripple wave P-P
100 mV
Environment working temp. extensible
85
Store temp

85
vibration
10~2000Hz,6.06g

impact
5000g,0.1ms


6 Axis IMU Accelerometer Gyro Inertial Measure Unit Low Cost
