Specifications
Brand Name :
Firepower
Model Number :
IMU6
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
500/month
Delivery Time :
1 week for sample
Packaging Details :
sponge/box
Gyro Range :
±400°/s
Gyro Zero Bias Stability :
0.5 °/h
Acc Range :
30g
Acc Zero Bias Stability :
0.02mg
Bandwidth :
200Hz
Communication Interface :
RS422
Power Supply :
5V
Random Walk :
0.2°/√h
Description
Stim300 IMU Accelerometer Gyro Sensor Factory Supply

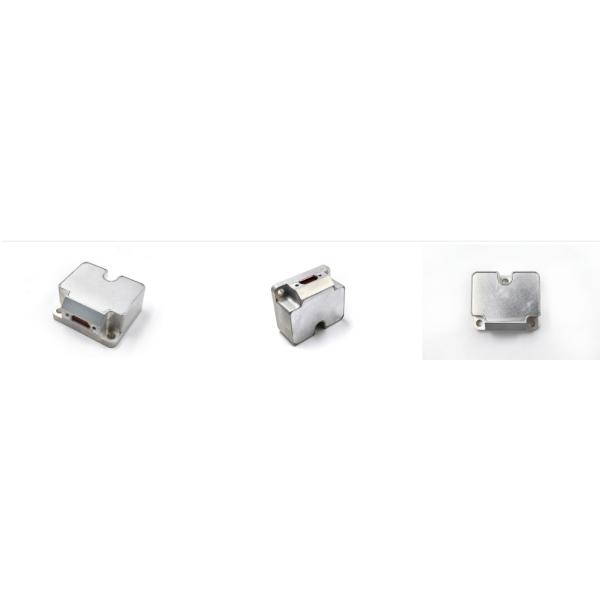

Stim300  IMU Accelerometer Gyro Sensor Factory Supply
Product Specifications
Attribute Value
Gyro Range ±400°/s
Gyro Zero Bias Stability 0.5 °/h
Acc Range 30g
Acc Zero Bias Stability 0.02mg
Bandwidth 200Hz
Communication Interface RS422
Power Supply 5V
Random Walk 0.2°/√h
Product Description

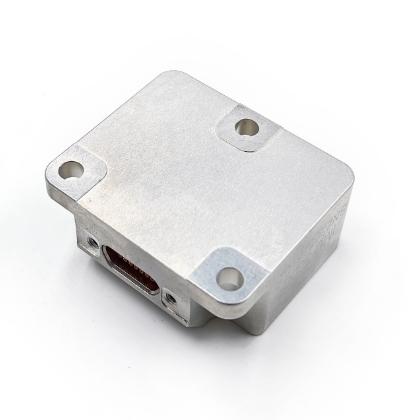

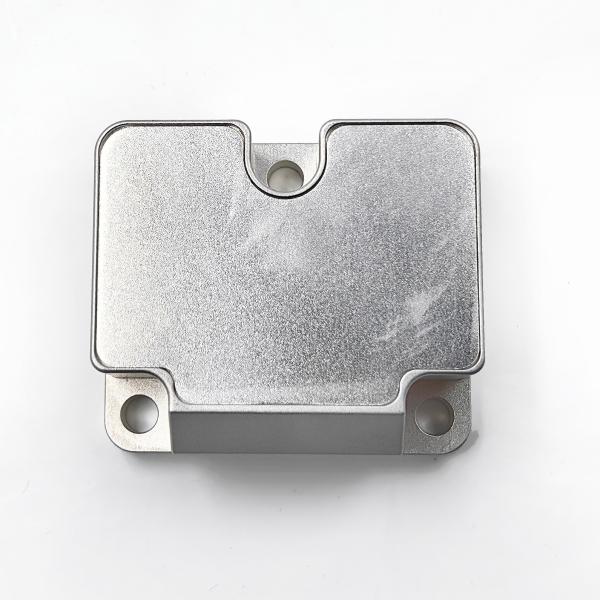

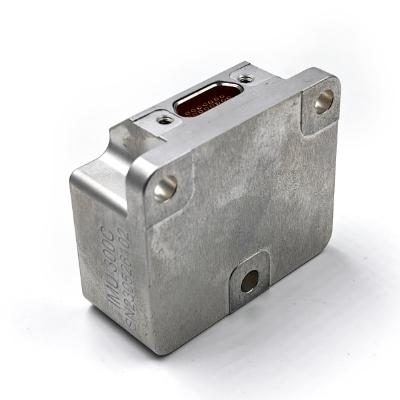

The IMU6-1 MEMS Inertial Measurement Unit is designed for precision measurement of three-axis angular rate, acceleration, and inclination angle. This unit can be customized to meet specific measurement accuracy and range requirements.

The system consists of:

  • Three-axis gyroscope
  • Three-axis accelerometer
  • Three-axis inclination sensor
  • Temperature sensor
  • Signal processing board
  • Structural components and software

After comprehensive error compensation (including temperature compensation, installation misalignment angle compensation, and nonlinear compensation), the processed data is output via RS-422 serial port using a standardized communication protocol.

Technical Parameters
Gyroscope Specifications
Parameter Unit IMU6-1 IMU6-1A
Measuring range (customizable) °/s ±400 ±400
Zero bias stability (@ Allan Variance) °/h 1 0.5
Zero bias stability (1s smooth, 1 σ, room temperature) °/h 10 5
Zero bias stability (10s smooth, 1 σ, room temperature) °/h 5 1
Zero-bias error over full temperature range °/h 20 10
Random walk °/√h 0.2 0.1
Zero-bias repeatability °/h 10 5
Zero bias acceleration sensitivity °/h/g 1 1
Resolution °/h 2 1
Scale factor nonlinearity ppm 500
Scale factor repeatability ppm 500
Cross coupling % 0.1
Bandwidth Hz 125
Accelerometer Specifications
Parameter Unit IMU6-1y-1 IMU6-1y-2
Measuring range (customizable) g ±10 ±30
Zero-bias stability (Allan Variance @ 25°C) mg 0.02 0.05
Zero-bias stability (1s smoothing) mg 0.1 0.5
Zero-bias stability (10 s smoothing) mg 0.05 0.2
Zero-bias error over full temperature range mg 1 3
Random walk m/s/√h 0.001 0.002
Zero-bias repeatability mg 0.1 0.5
Scale factor repeatability ppm 500
Scale factor nonlinearity ppm 500
Bandwidth Hz 125
