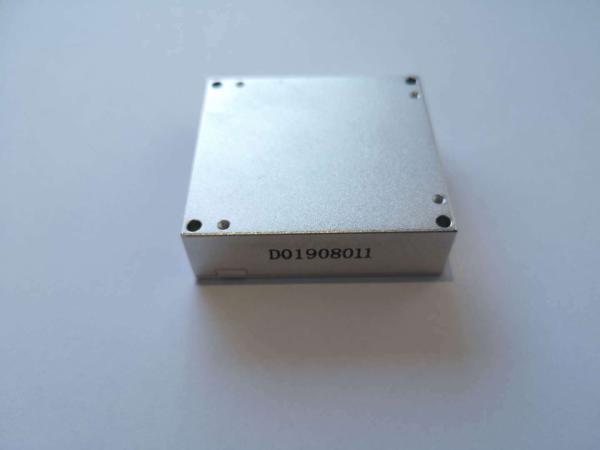

Temperature Compensated IMU Accelerometer Gyro 16488-C 3 axis
Temperature Compensated IMU Accelerometer Gyro 16488-C 3 axis
Temperature Compensated IMU Accelerometer Gyro 16488-C 3 axis
Temperature Compensated IMU Accelerometer Gyro 16488-C 3 axis
Temperature Compensated IMU Accelerometer Gyro 16488-C 3 axis
Temperature Compensated IMU Accelerometer Gyro 16488-C 3 axis
Temperature Compensated IMU Accelerometer Gyro 16488-C 3 axis
Temperature Compensated IMU Accelerometer Gyro 16488-C 3 axis
Temperature Compensated IMU Accelerometer Gyro 16488-C 3 axis
Temperature Compensated IMU Accelerometer Gyro 16488-C 3 axis
Temperature Compensated IMU Accelerometer Gyro 16488-C 3 axis
Temperature Compensated IMU Accelerometer Gyro 16488-C 3 axis
Specifications
Model Number :
16488-B
MOQ :
1
Payment Terms :
T/T
Supply Ability :
500/month
Packaging Details :
sponge/box
Brand Name :
Firepower
Certification :
CE ROHS
Place of Origin :
CHINA
Product name :
16488 alternative
accelerometer Bias instability :
0.16 mg
accelerometer bias stability :
0.005 mg
bandwidth（-3dB） :
330Hz
gyro Scale factor repeatability :
1.0%
gyro output noise :
0.135º/s
Random walk :
0.26º/√h
Description

temperature compensated IMU 3 axis accelerometer 3 axis gyro 3 axis magnometer​

16488-C is a domestic MEMS IMU used to replace ADIS16488. The product precision is better than ADIS16488. The version is optional, the size and appearance are exactly the same, and the communication protocol is the same.The version is optional, the size and appearance are exactly the same, and the communication protocol is the same. It is more convenient for users to change, providing users with professional product customization services.
Temperature Compensated IMU Accelerometer Gyro 16488-C 3 axis

Parameter Conditions 16488-C ADIS16488 unit
Gyro Dynamic measuring range configurable ±450 ±480 º/s
Bias instability Allan 3.5 5.1 º/h
bias stability 1s,rms 30 / º/h
bias in full temperature range -40℃~85℃,10s,rms 0.02 / º/s
Random walk 1б 0.25 0.26 º/√h
bias repeatability 1б 35 / º/h
output noise No filtering,rms 0.09 0.135 º/s
Scale factor repeatability 1б 0.02 1.0 %
Scale factor Temperature coefficient -40℃~85℃, 1б 5 ±35 ppm/°C
The scale factor is nonlinear FS=450º/s 0.008 0.01 %FS
bandwidth(-3dB)
330 330 Hz
Accelerometer Dynamic measuring range Configurable (Max ±40) ±20 ±18 g
bias stability Allan error 0.005 / mg
bias in full temperature range -40℃~85℃,10s,rms 0.5 16 mg
Random walk 1б 0.01 0.029 m/s/√h
Bias instability 1б 0.16 / mg
output noise No filterin,rms 1 / mg
Scale factor repeatability 1б 0.01 0.5 %
scale factor is nonlinear FS=10g 0.002 0.1 %FS
bandwidth(-3dB)
330 330 Hz
Cross coupling
0.18 / %
Magnetometer Dynamic measuring range
±2.5 ±2.5 gauss
The sensitivity
0.1 0.1 mgauss/LSB
nonlinearity
0.5 0.5 %FS
Barometer Pressure range
1100 1100 mbar
sensitivity
6.1 × 10-7 6.1 × 10-7 mbar/LSB
Total error
4.5 4.5 mbar
The relative error
2.5 2.5 mbar
nonlinearity
0.1 0.1 %FS
Communication interface 1 way SPI Input clock frequency 15 15 MHz
1 way UART Baudrate 230.4 / kbps
1 way CAN

/ kbps
Electrical characteristics voltage dc 3.3(or5)±10%
V
Power consumption
0.6 1 W
ripple wave P-P
100 mV
Environment working temp. extensible
85 ℃
Store temp

85 ℃
vibration
10~2000Hz,6.06g

impact
5000g,0.1ms


Temperature Compensated IMU Accelerometer Gyro 16488-C 3 axis
