Integrated 3 Axis IMU Gyro And Accelerometer Low Bias DC 24V
Integrated 3 Axis IMU Gyro And Accelerometer Low Bias DC 24V
Specifications
Model Number :
IMU260
MOQ :
1
Payment Terms :
T/T
Supply Ability :
50/month
Delivery Time :
20 days for sample
Packaging Details :
sponge+box
Brand Name :
Firepower
Certification :
CE ROHS
Place of Origin :
CHINA
Product name :
low bias IMU
Azimuthmeasure measuring range :
0~360°
attitudemeasure measuring range :
±60°
angle speedmeasure measuring range :
±300°/s
Heading alignment 1σ :
0.05； 0.1； 0.2 °
Positioning accuracy :
2、10m (CEP, GNSS Auxiliary）
size :
190 ×260 × 151mm
weight :
≤1200g
Description

IMU integrated by 3 axis gyro 3 axis accelerometer low bias IMU

Technical indicators unit
Azimuthmeasure measuring range 0~360 °
attitudemeasure measuring range ±60 °
angle speedmeasure measuring range ±300 °/s
Accelerationmeasure measuring range ±6 g
Heading alignment 1σ 0.05； 0.1； 0.2 °
attitude alignment 1σ 0.02; 0.05; 0.1 °
Positioning accuracy 2,10 m (CEP, GNSS Auxiliary)
Heading keep 1σ 0.03； 0.05； 0.1
attitudekeep 1σ 0.02； 0.05； 0.1
Speed error1σ ≤0.1 m/s (GNSS Auxiliary)
Horizontal position error ≤0.5 %D(CEP,D is the trip)
Height error 1σ ≤10 m
poweredVoltage DC 24 V
Operating temperature -40 ~ +75 ° C
storage temperature -50~ +85 °C
size 190 ×260 × 151 (Designable) mm
weight ≤1200 g
vibration GJB150.16a-2009
Shock 30/9~11 g/ms

Integrated 3 Axis IMU Gyro And Accelerometer Low Bias DC 24V

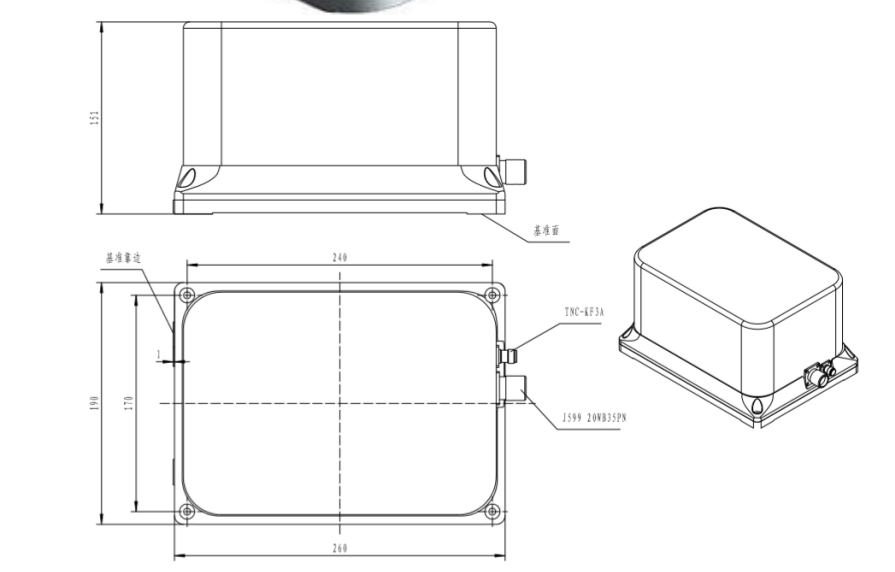

Dimension

Integrated 3 Axis IMU Gyro And Accelerometer Low Bias DC 24V
