Specifications
Brand Name :
Firepower
Model Number :
IMU6-1
Place of Origin :
China
MOQ :
1
Price :
2000$
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
500/month
Delivery Time :
1 Week for sample
Packaging Details :
BOX+Sponge
Gyro Measuring range :
±400°/s
In-Run Bias Stability :
0.3°/h
Angular Random Walk :
0.15º/√h
Bias repeatability (1σ ) :
1°/h
Scale Factor Non-Linearity(1σ ) :
150ppm
3 dB Bandwidth :
250Hz
Accelerometer bias stability :
0.02mg
Weight :
55g
Description
Tactical Grade Inertial Measurement Unit without GPS aided Stim300 Replacement
Key Specifications
Attribute Value
Gyro Measuring range ±400°/s
In-Run Bias Stability 0.3°/h
Angular Random Walk 0.15º/√h
Bias repeatability (1σ) 1°/h
Scale Factor Non-Linearity(1σ) 150ppm
3 dB Bandwidth 250Hz
Accelerometer bias stability 0.02mg
Weight 55g
Product Overview

The IMU6 MEMS inertial measurement unit integrates a three-axis gyroscope, three-axis accelerometer, three-axis inclination angle sensor, temperature sensor, signal processing board, and supporting software. This comprehensive system measures three-axis angular rate, acceleration, and inclination angle of a carrier, outputting compensated data (including temperature, installation misalignment, and nonlinear compensation) via RS-422 serial port using standardized communication protocols.

Technical Specifications
Gyroscope Performance
Parameter Unit IMU6-1 IMU6-1A IMU6-1B IMU6-1C
Measuring range (customizable) °/s ±400 ±400 ±400 ±2000
In-Run Bias Stability °/h 0.3 0.1 0.05 1
Bias stability @10s °/h 3 1 0.5 6
Bias stability in full temperature °/h 10 3 2 18
Angular Random Walk °√h 0.15 0.1 0.02 0.3
Bias repeatability (1σ) °/h 1 0.5 0.3 2
Bias acceleration sensitivity °/h/g 1 1 1 2
Scale Factor Non-Linearity(1σ) ppm 150 150 150 300
Scale Factor Repeatability (1σ) ppm 20 20 20 100
Misalignment ° ±0.05 ±0.05 ±0.05 ±0.05
3 dB Bandwidth Hz 250 200 150 250
Accelerometer Performance
Parameter Unit IMU6-1y-1 IMU6-1y-2 IMU6-1y-3 IMU6-1y-4
Measuring range (customizable) g ±10 ±30 ±50 ±80
In-Run Bias Stability mg 0.02 0.05 0.1 0.2
Bias stability @10s mg 0.05 0.2 0.5 1
Bias stability in full temperature mg 1 3 5 15
Angular Random Walk m/s/√h 0.001 0.002 0.005 0.01
Bias repeatability(1σ) mg 0.1 0.5 1 2
Scale Factor Repeatability (1σ) ppm 200 200 200 200
Scale Factor Non-Linearity(1σ) ppm 50 100 200 300
Misalignment ° ±0.05 ±0.05 ±0.05 ±0.05
3 dB Bandwidth Hz 100 100 100 100
Optional Tilt Angle Specifications
Parameter Unit IMU6-1y-x
Measuring range (customizable) g ±1.7
Bias stability (1s smoothing) mg 0.5
Random walk m/s/√h 0.08
Scale factor non-linearity ppm 100
Electrical Characteristics
Parameter Unit IMU6-1y-x
Voltage V 5
Power consumption W 2
Ripple mV 100
Environmental Specifications
Parameter Unit IMU6-1y-x
Operating temperature ℃ -45~85
Storage temperature ℃ -55~105
Vibration -- 10~2000Hz,6.06g
Impact -- 1000g,0.1ms
Weight g 55±5

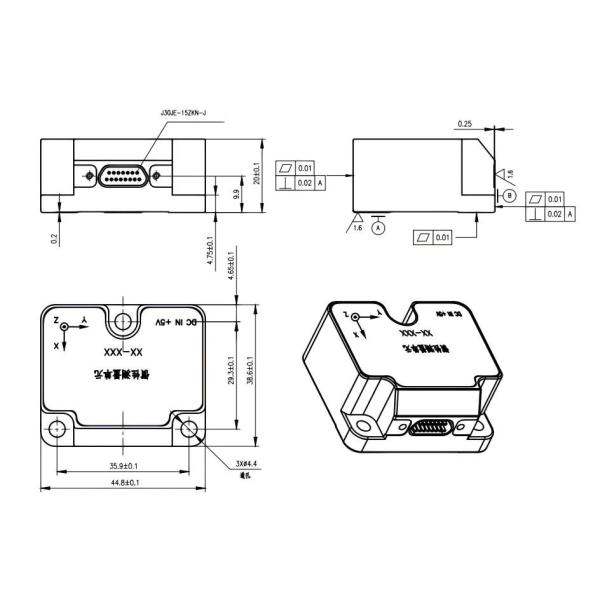

Product Structure
Tactical Grade Inertial Measurement Unit without GPS aided Stim300 Replacement
